Air Filter Element: Service and Repair

Air Cleaner Element Replacement

Removal Procedure

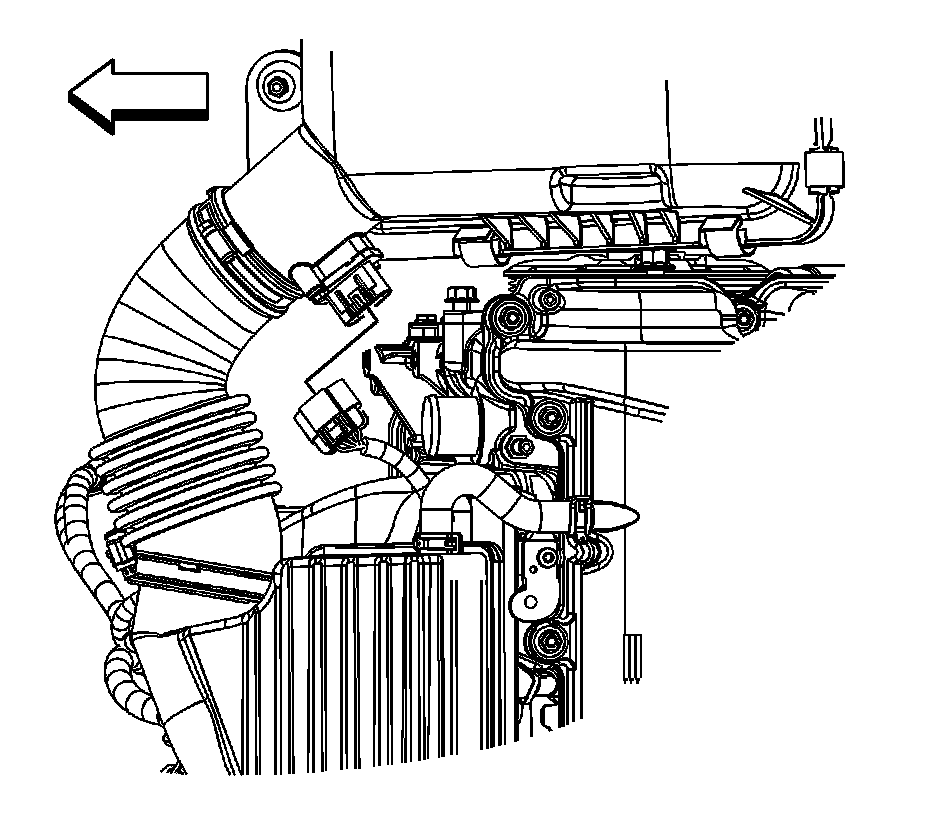

1. Disconnect the engine harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
2. Remove the air cleaner outlet duct.




3. Release the air cleaner latches.

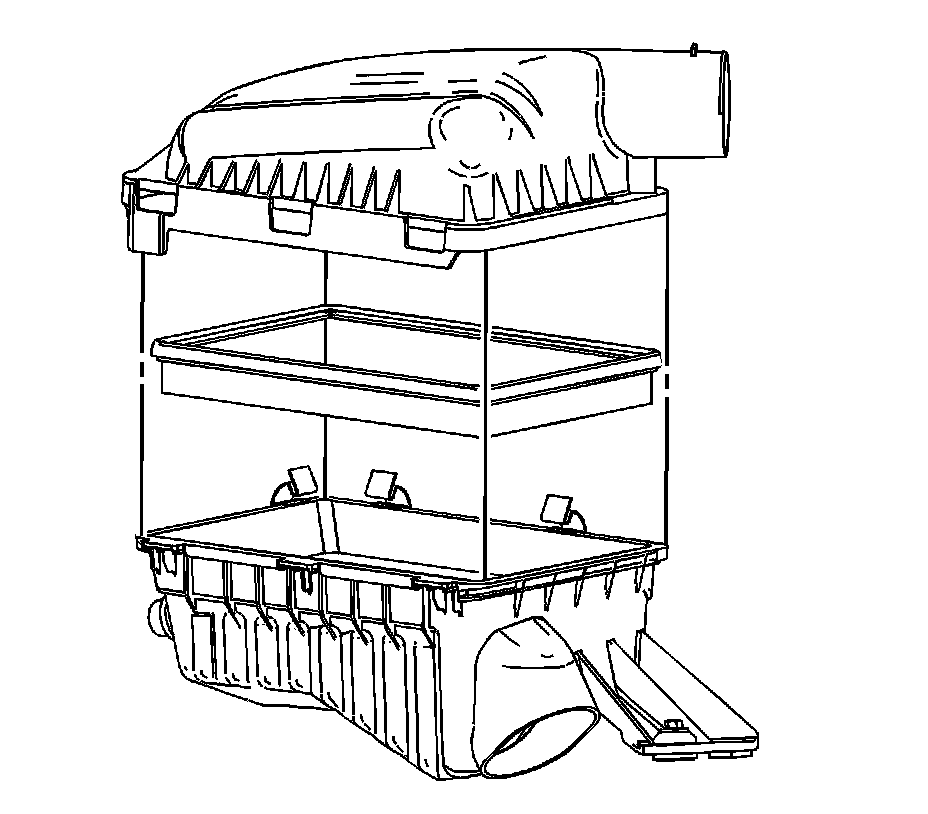

4. Separate the upper and lower portions of the air cleaner assembly.
5. Remove the air cleaner filter from the lower air cleaner housing.
6. Inspect the air cleaner filter for dust, dirt, and water contamination.

Installation Procedure




1. Install the air cleaner filter into the lower air cleaner housing.
2. Install the upper air cleaner cover to the lower air cleaner housing.
3. Engage the air cleaner latches.




4. Install the air cleaner outlet duct.
5. Connect the engine harness electrical connector to the MAF/IAT sensor.
