Front Side Door Window Replacement



Front Side Door Window Replacement

Removal Procedure

1. Place the front door window in the full down position.
2. Remove the door applique.
3. Remove the outside rearview mirror.
4. Remove the door outer belt seal.
5. Remove the front door trim panel.
6. Remove the front door water reflector.
7. Remove the front door speaker.

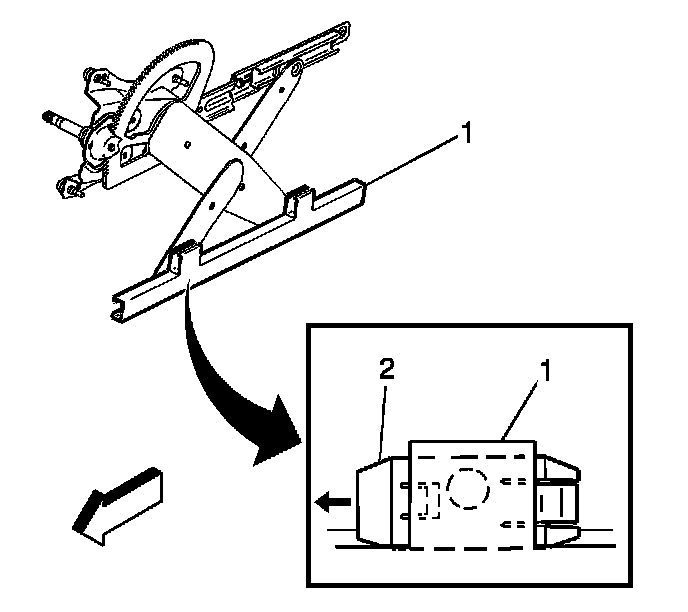

8. Disengage the window clips (2) from the window regulator sash channel (1).

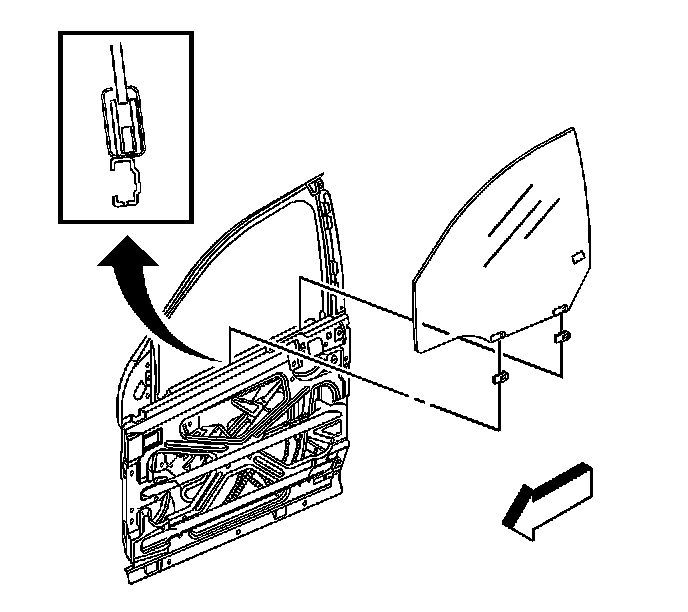

9. Remove the front door window from the front door.

Installation Procedure




1. Slide the window down into the door.




2. Slide the window into the sash channel (1), engaging the channel to the window clips (2).
3. Install the front door speaker.
4. Install the front door water deflector.
5. Install the front door trim panel.
6. Install the door outer belt seal.
7. Install the outside rearview mirror.
8. Install the front door applique.
