Front Bumper Shock Absorber: Service and Repair

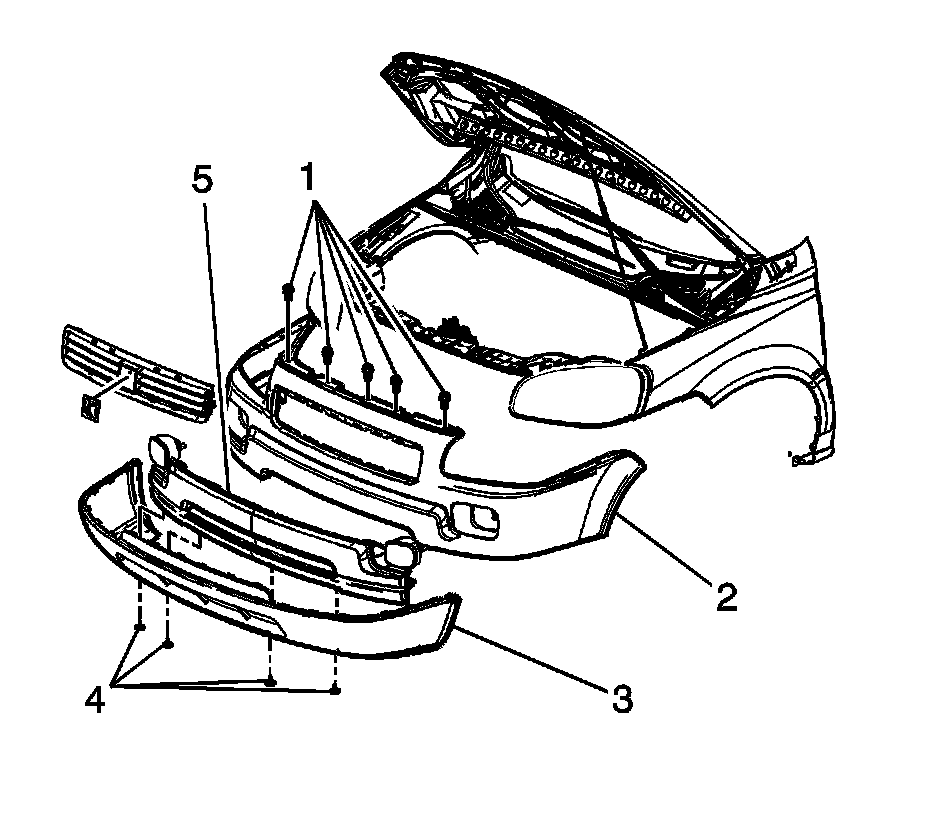

Front Bumper Fascia Energy Absorber Replacement

Removal Procedure




1. Remove the front bumper fascia.
2. Remove the retainers (4) securing the energy absorber to the lower fascia.
3. Remove the energy absorber (5) from the lower fascia (3).

Installation Procedure




1. Position the energy absorber (5) to the lower fascia (3).
2. Install NEW retainers (4) in order to secure the energy absorber to the lower fascia.
3. Install the front bumper fascia to the vehicle.
