Manual Mirror Replacement

Manual Mirror Replacement

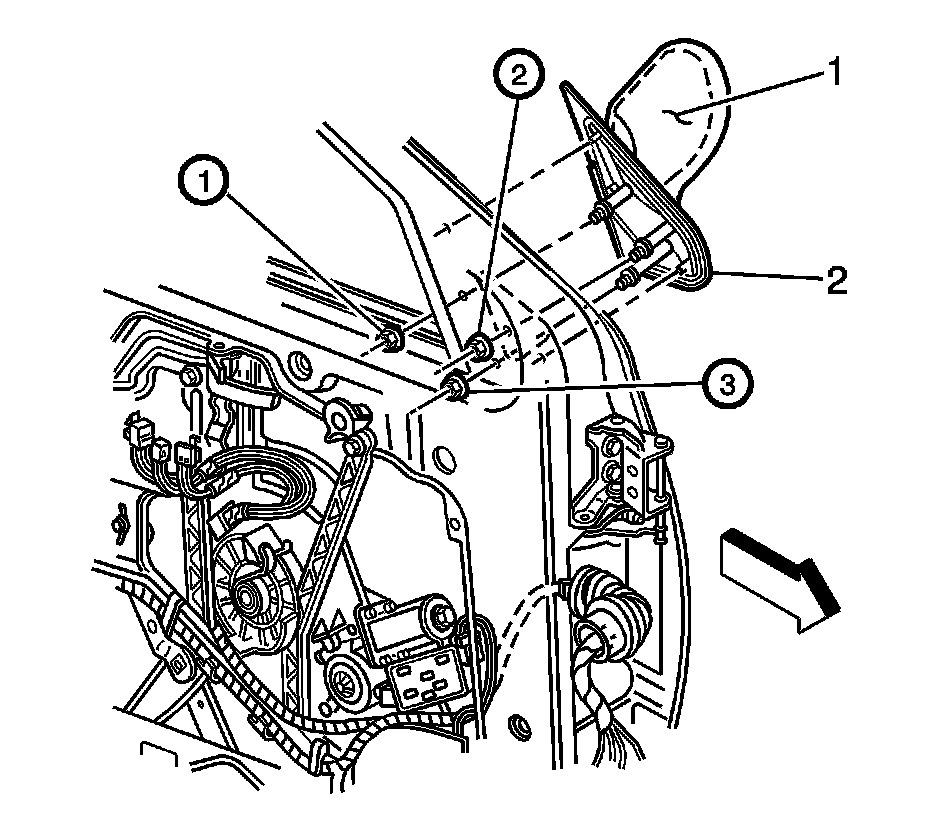

Removal Procedure

1. Remove the front door water deflector.




2. Remove the outside rearview mirror nuts from the inside door.
3. Remove the outside rearview mirror (1) from the front door and the seal (2).

Installation Procedure




1. Position the outside rearview mirror (1) to the front door, ensuring the seal (2) is in position.

Notice: Refer to Fastener Notice.

2. Install the outside rearview mirror nuts.

Tighten the nuts, in sequence as shown, to 10 N.m (89 lb in).

3. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement.
