Power Mirror Replacement

Power Mirror Replacement

Removal Procedure

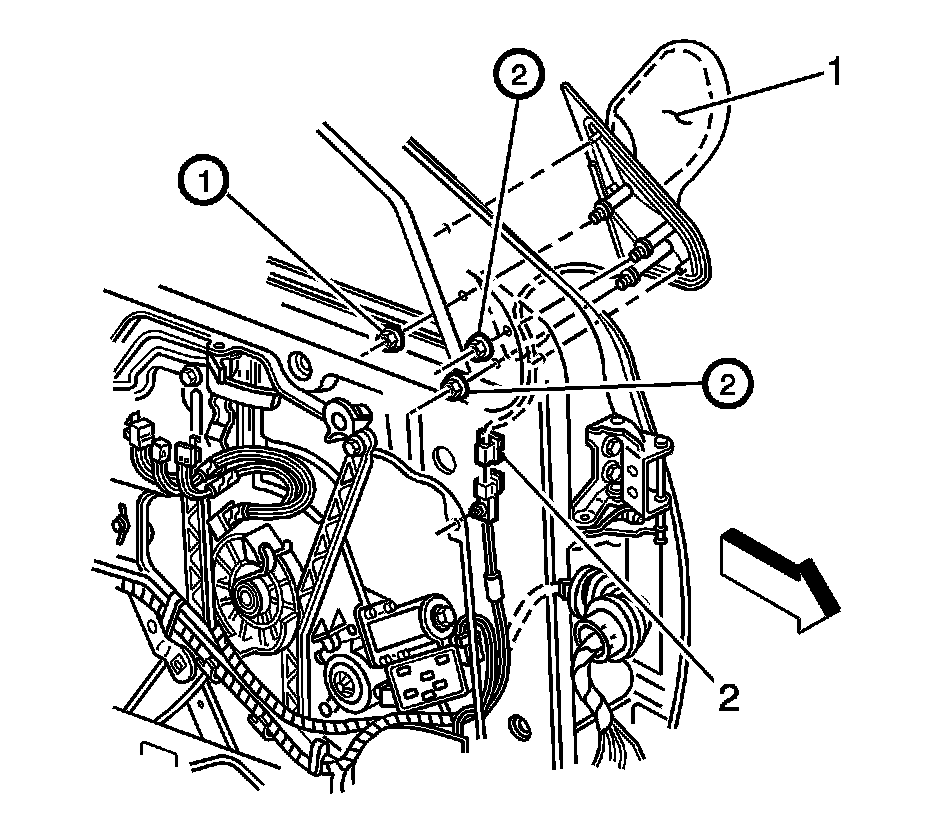

1. Remove the front door water deflector.




2. Disconnect the mirror electrical connectors (2).
3. Remove the outside rearview mirror nuts.
4. Remove the outside rearview mirror (1) from the front door.

Installation Procedure




1. Position the outside rearview mirror (1) to the front door, ensuring the seal is in position.

Notice: Refer to Fastener Notice.

2. Install the outside rearview mirror nuts.

Tighten the nuts, in sequence as shown, to 10 N.m (89 lb in).

3. Connect the mirror electrical connectors (2).
4. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement.
