Memory Seat Feature Inoperative

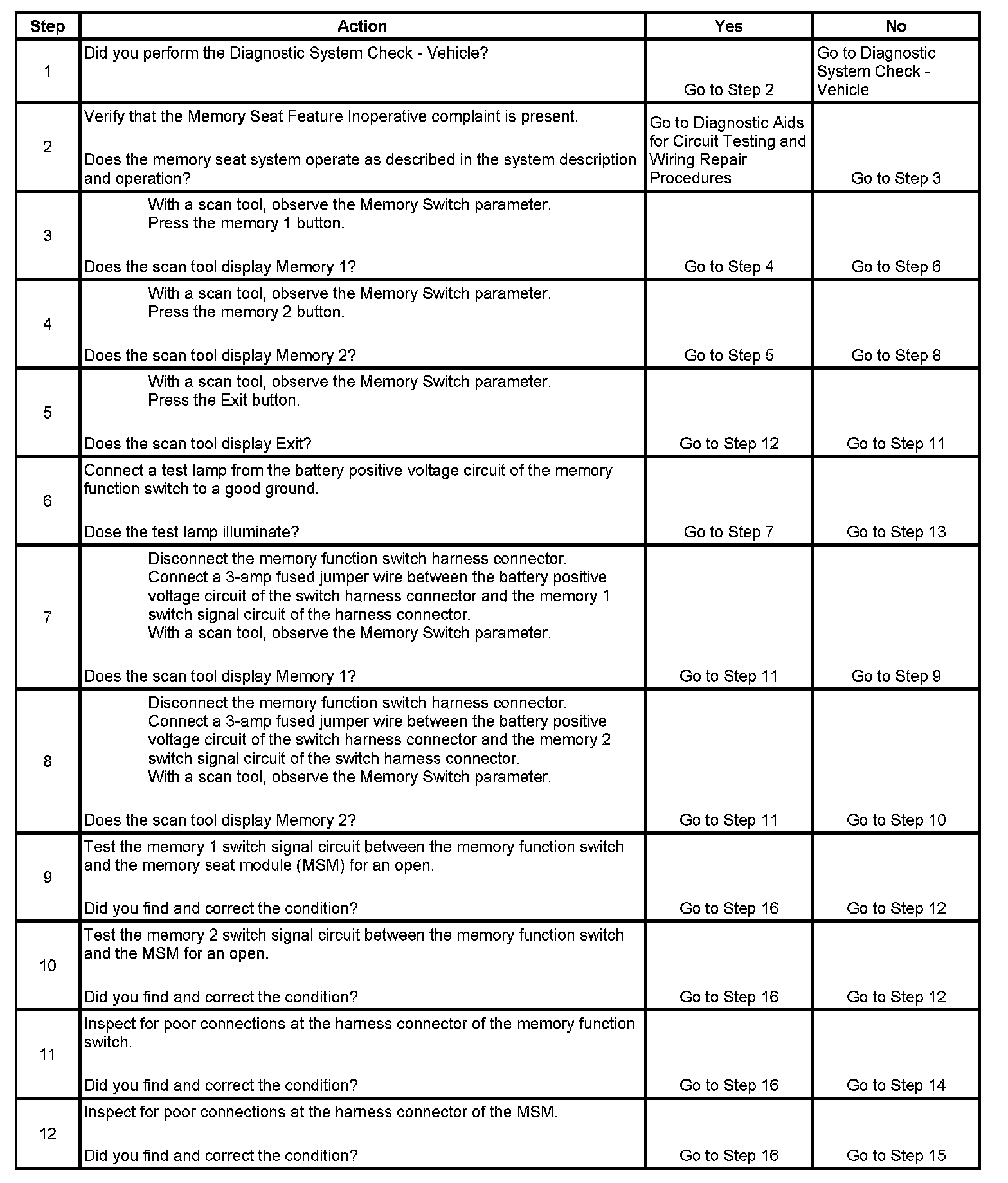

Memory Seat Feature InoperativeTest DescriptionStep 1 - Step 12:

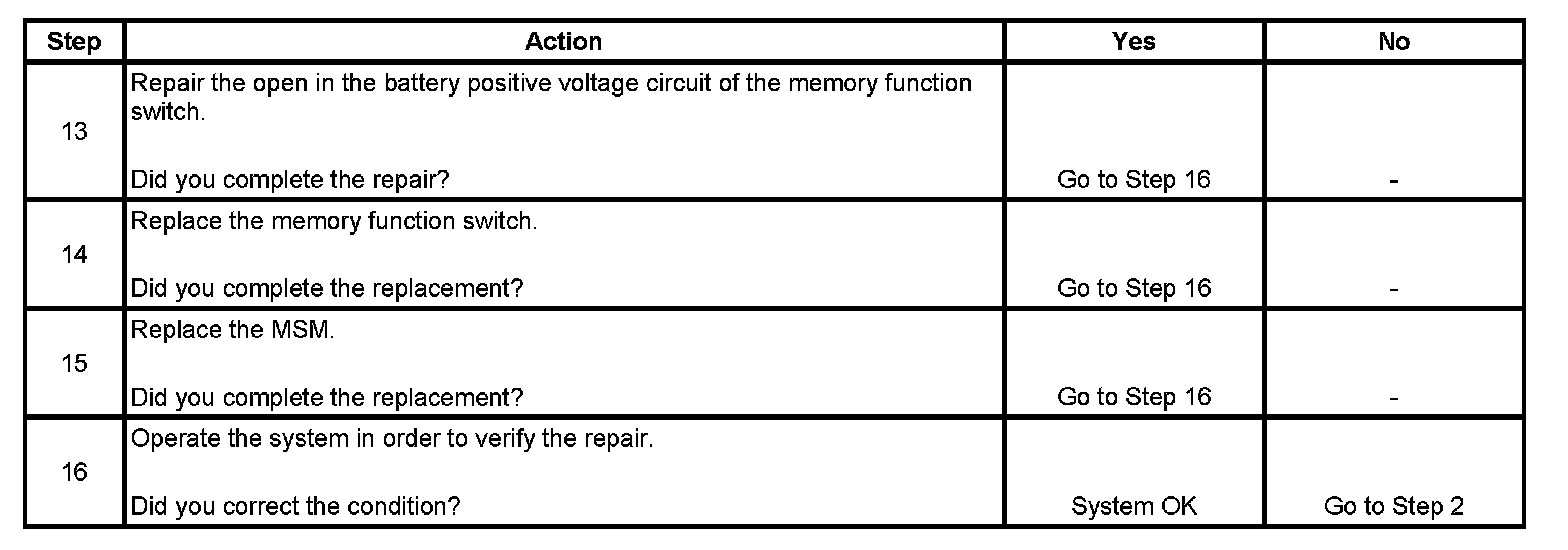

Step 13 - Step 16:
The numbers below refer to the step numbers on the diagnostic table.
7.
If the fuse in the jumper wire opens when you perform this test, the signal circuit is shorted to ground.
8.
If the fuse in the jumper wire opens when you perform this test, the signal circuit is shorted to ground.
