Air Bag



SIR Connector End Views

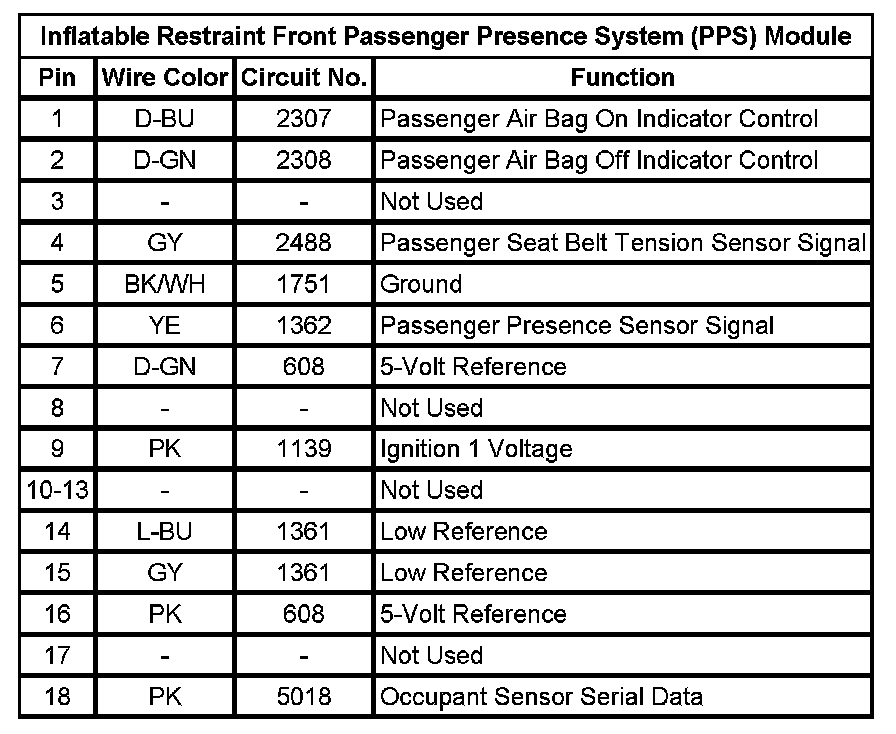

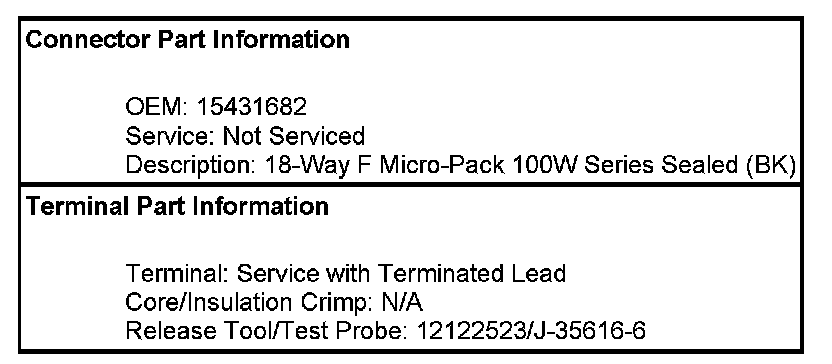

Inflatable Restraint Front Passenger Presence System (PPS) Module

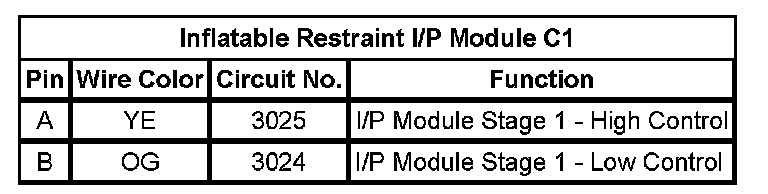

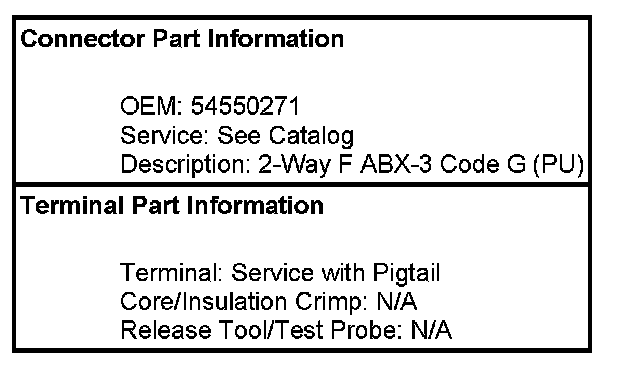

Inflatable Restraint I/P Module C1

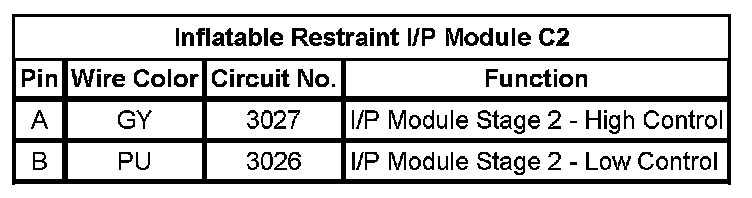

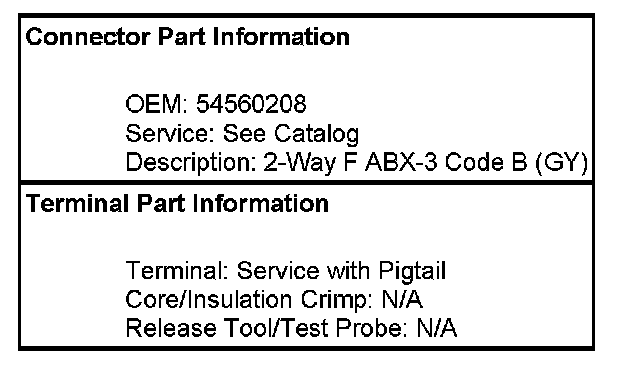

Inflatable Restraint I/P Module C2

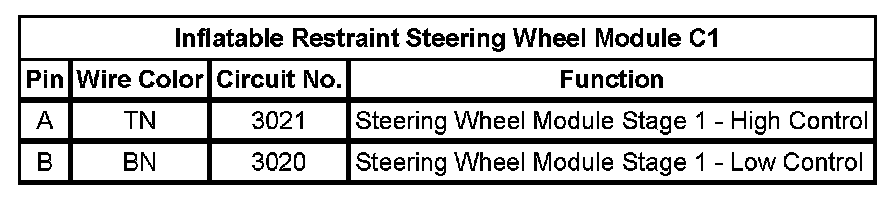

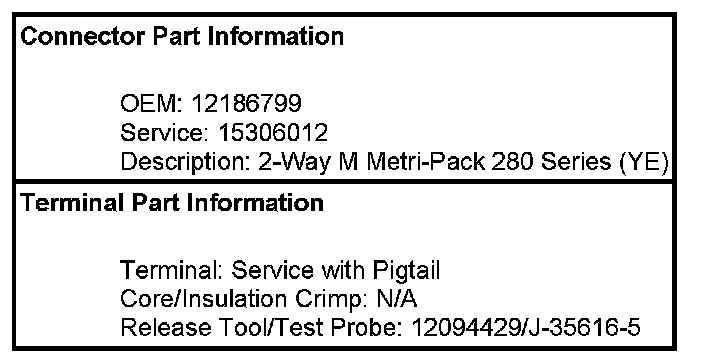

Inflatable Restraint Steering Wheel Module C1

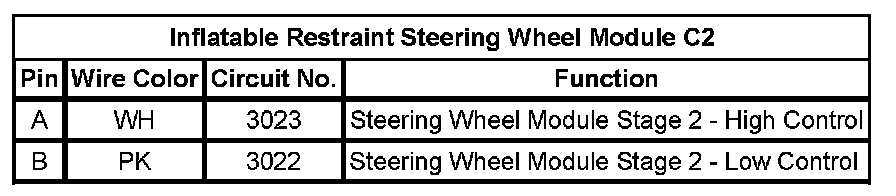

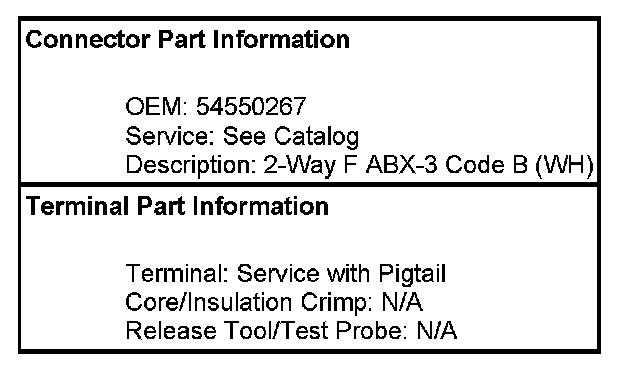

Inflatable Restraint Steering Wheel Module C2

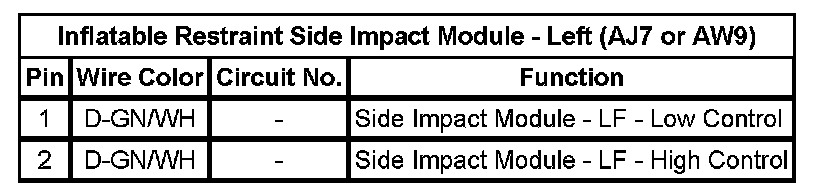

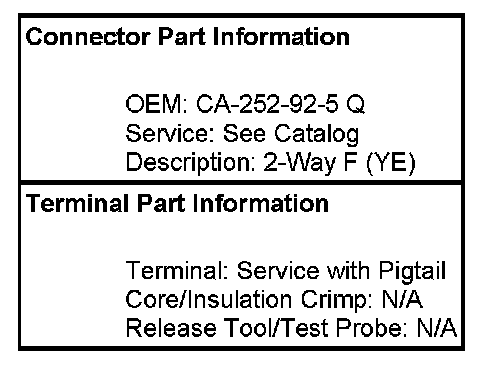

Inflatable Restraint Side Impact Module - Left (AJ7 or AW9)

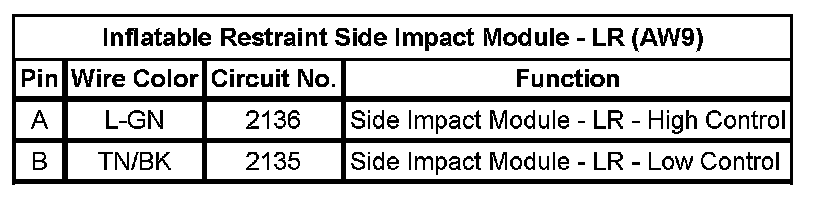

Inflatable Restraint Side Impact Module - LR (AW9)

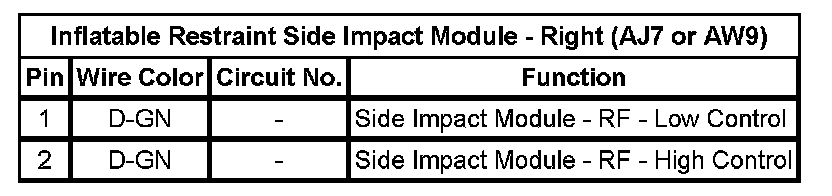

Inflatable Restraint Side Impact Module - Right (AJ7 or AW9)














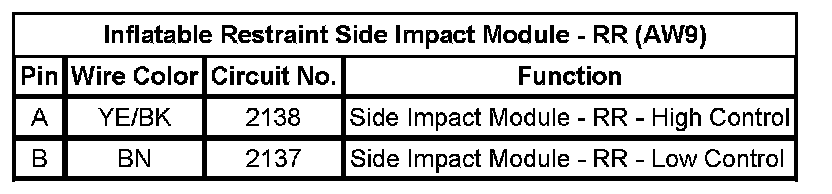

Inflatable Restraint Side Impact Module - RR (AW9)
