Power Seat Motor

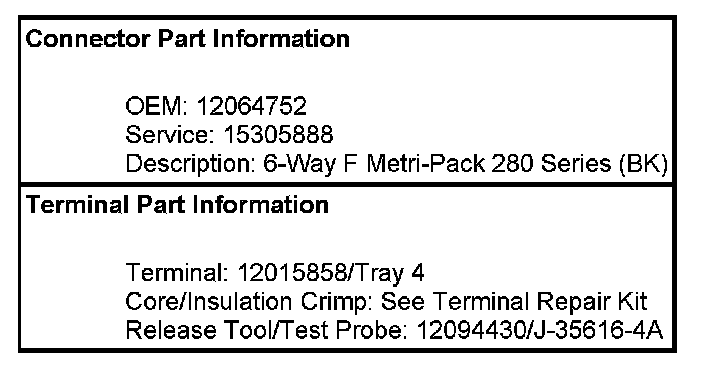

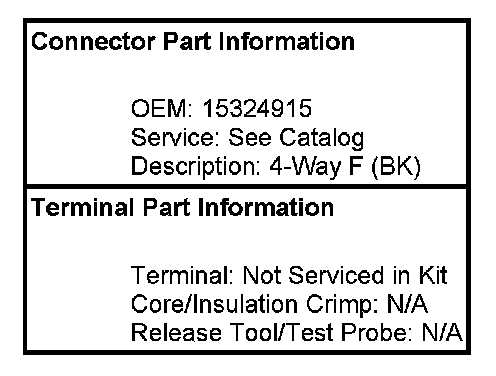

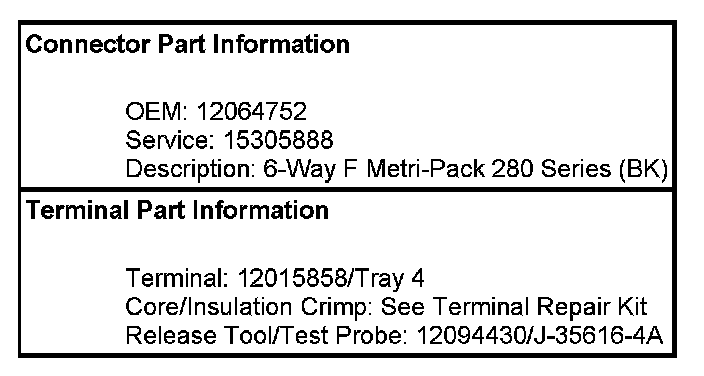

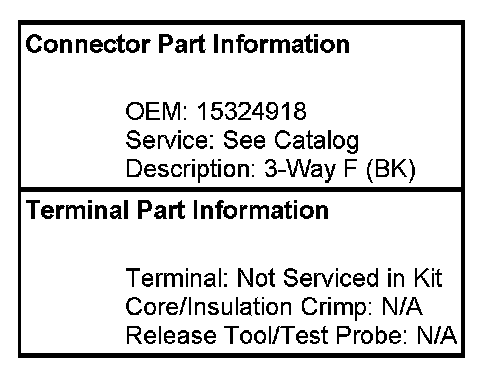

Power Seat Connector End Views

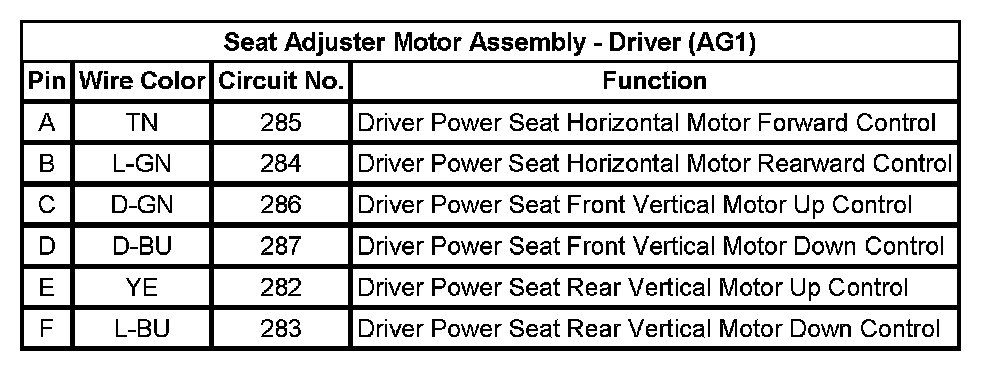

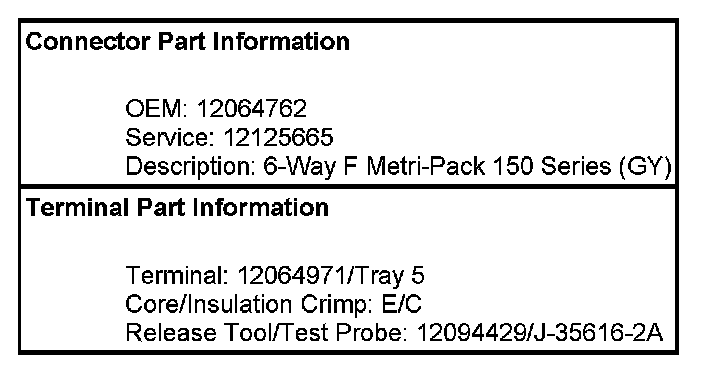

Seat Adjuster Motor Assembly - Driver (AG1)

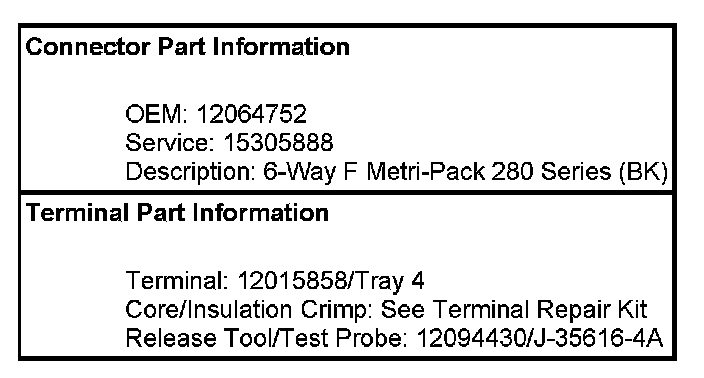

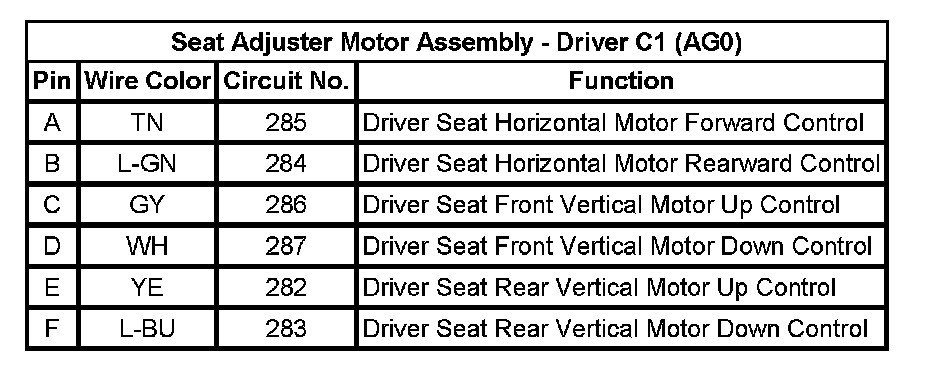

Seat Adjuster Motor Assembly - Driver C1 (AG0)

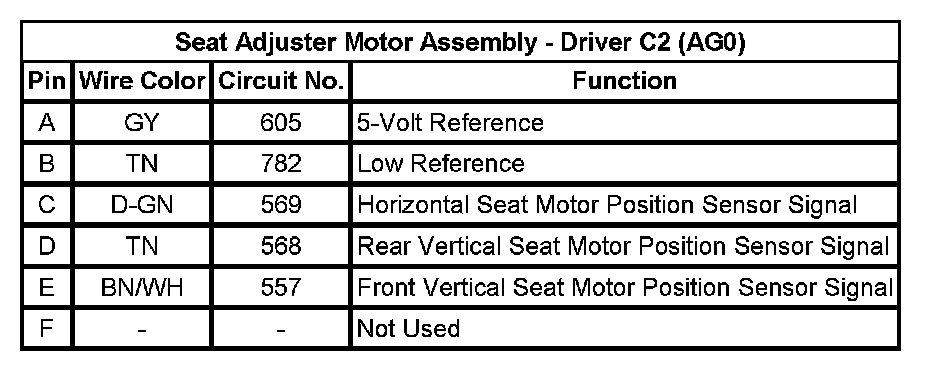

Seat Adjuster Motor Assembly - Driver C2 (AG0)

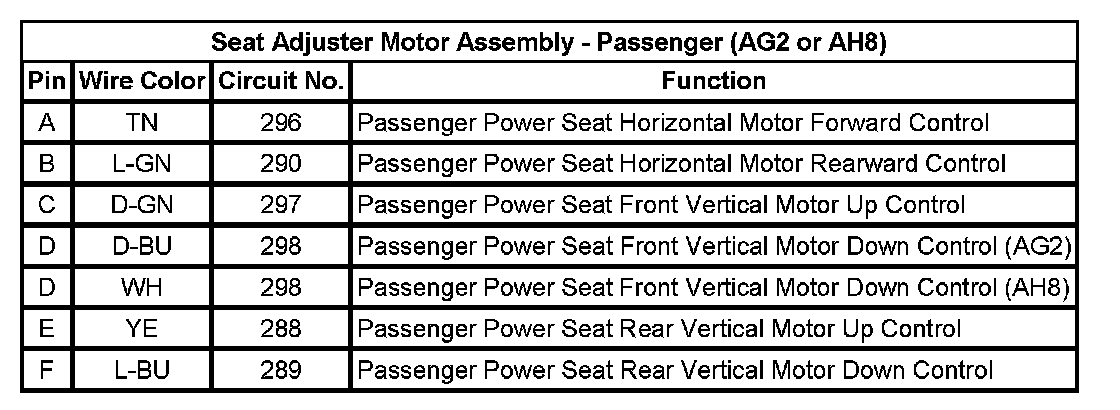

Seat Adjuster Motor Assembly - Passenger (AG2 or AH8)

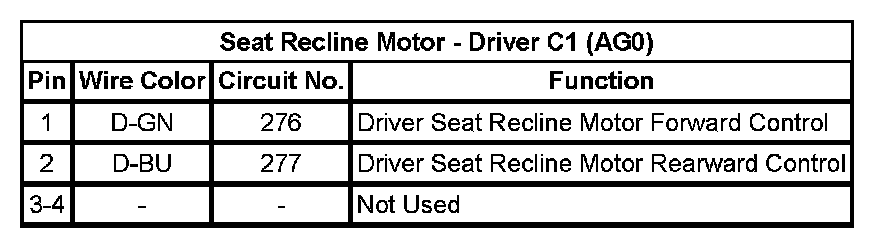

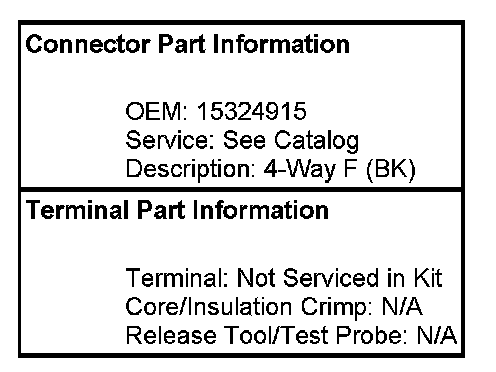

Seat Recline Motor - Driver C1 (AG0)

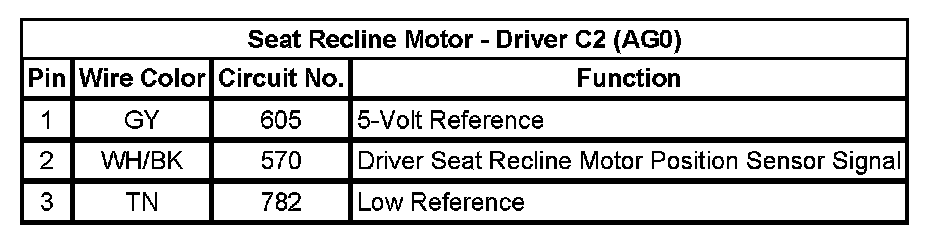

Seat Recline Motor - Driver C2 (AG0)

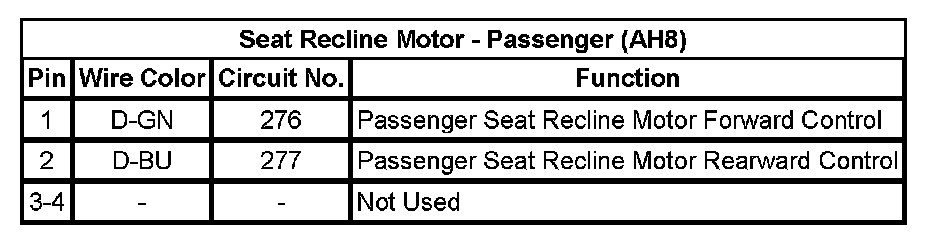

Seat Recline Motor - Passenger (AH8)
