Thermostat: Service and Repair

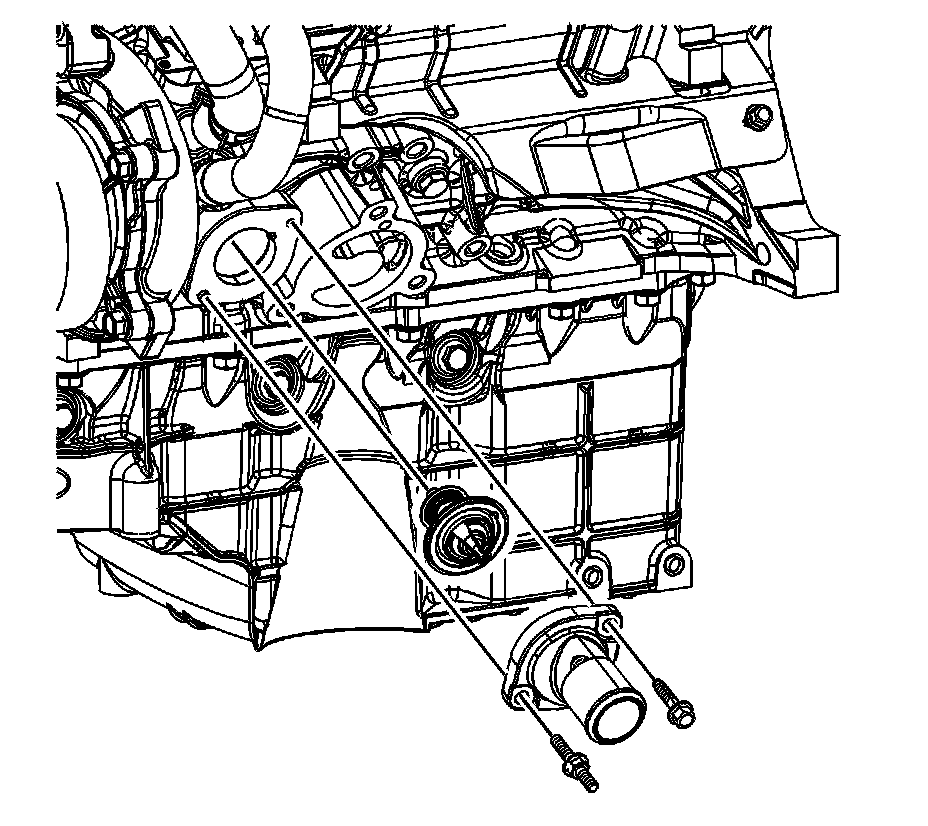

Thermostat Replacement

Removal Procedure

1. Remove the thermostat housing.
2. Remove the thermostat.

Installation Procedure

1. Install the thermostat.
2. Install the thermostat housing.
