Exhaust Heat Shield Replacement
Exhaust Heat Shield ReplacementRemoval Procedure 1.
Remove the
muffler.
2.

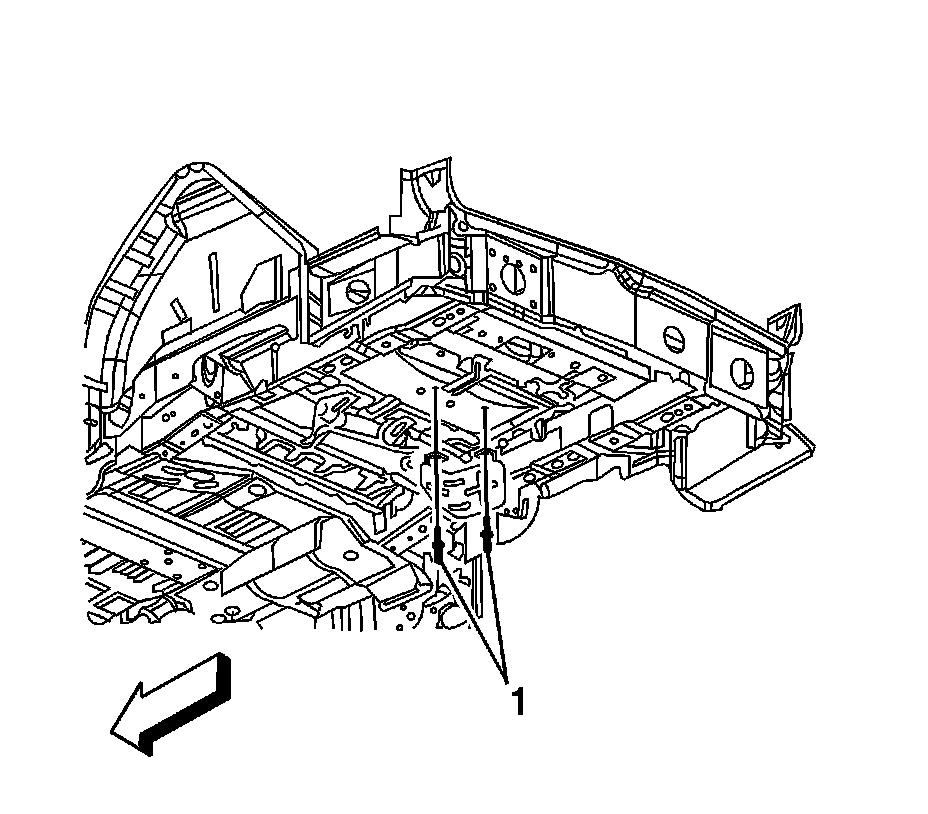

Drill out the resonator
heat shield rivets (1).
3.
Remove the
heat shield.
Installation Procedure 1.
Position the
heat shield to the underbody.
2.
Install NEW rivets (1) attaching the resonator
heat shield to the underbody.
3.
Install the
muffler.
