Driven Sprocket Support Assembly Removal

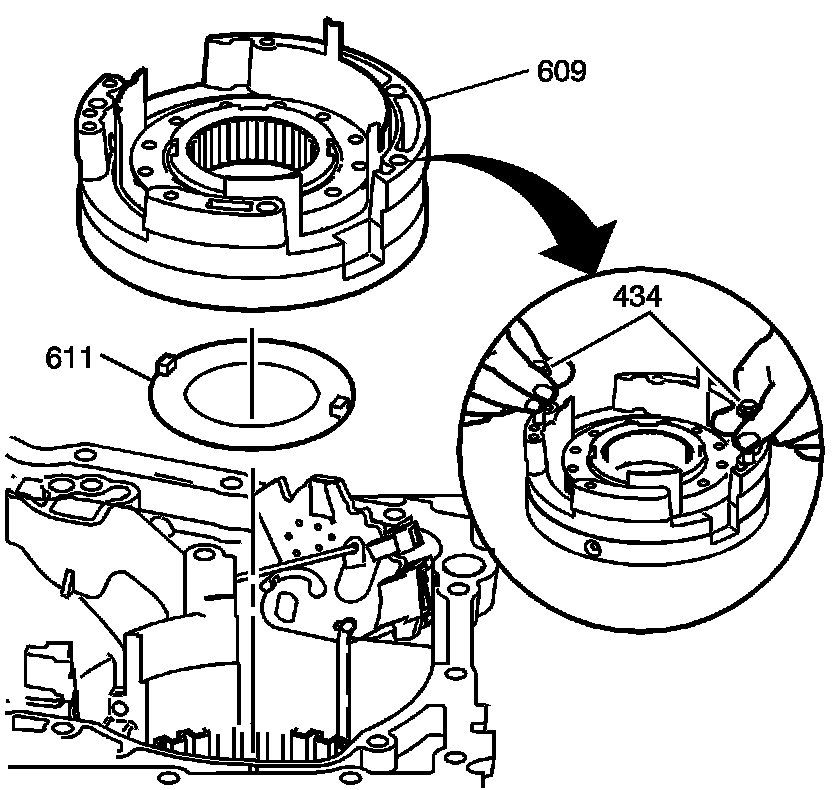

Driven Sprocket Support Assembly Removal 1.
With your fingers, insert
two 13 mm channel plate bolts (434) into the driven sprocket support assembly (609).
2.
Grasp the bolts and lift the support assembly from the case.
3.
Remove the thrust washer (611) from the second clutch housing. The washer may be stuck to the support assembly.
