Speaker

Entertainment/Communication Connector End Views

Speaker - LF Door (UQ3)

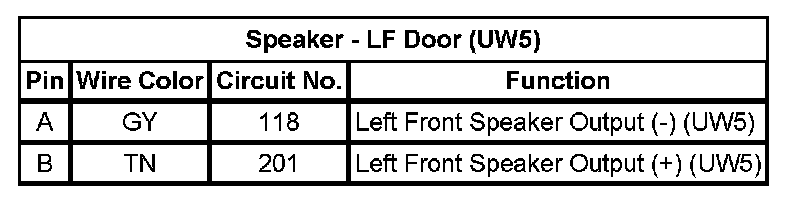

Speaker - LF Door (UW5)

A/T Shift Lock Control Solenoid:

Speaker - LF Tweeter (UQ3)

A/T Shift Lock Control Solenoid:

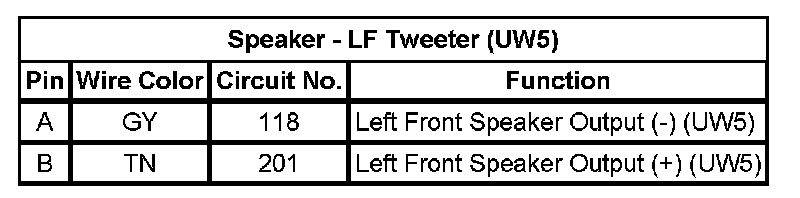

Speaker - LF Tweeter (UW5)

A/T Shift Lock Control Solenoid:

Speaker - LR (UQ3)

A/T Shift Lock Control Solenoid:

Speaker - LR (UW5)

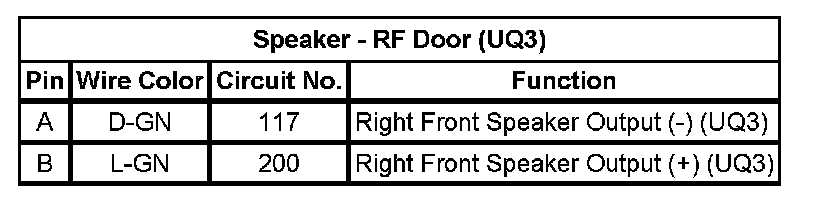

Speaker - RF Door (UQ3)

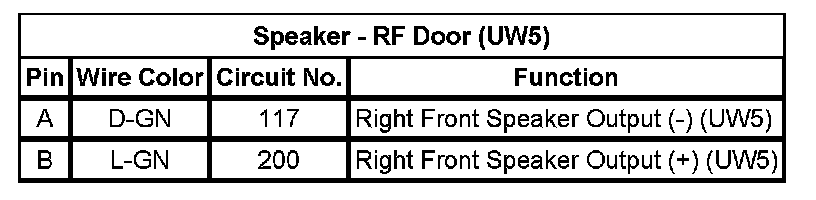

Speaker - RF Door (UW5)

A/T Shift Lock Control Solenoid:

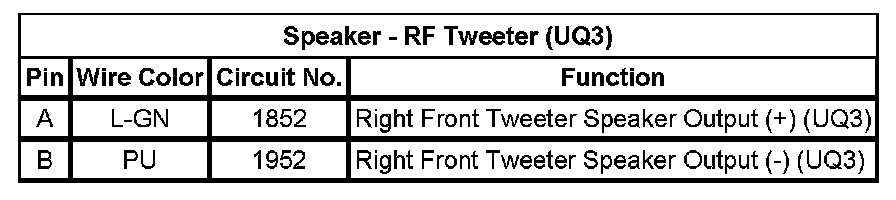

Speaker - RF Tweeter (UQ3)

A/T Shift Lock Control Solenoid:

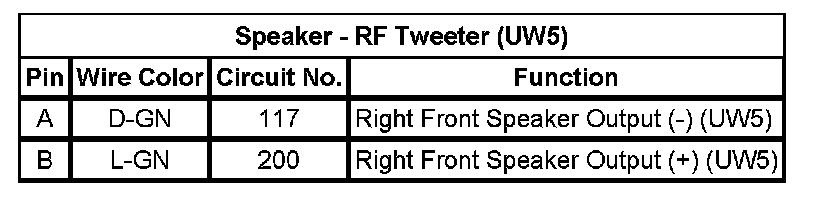

Speaker - RF Tweeter (UW5)

A/T Shift Lock Control Solenoid:

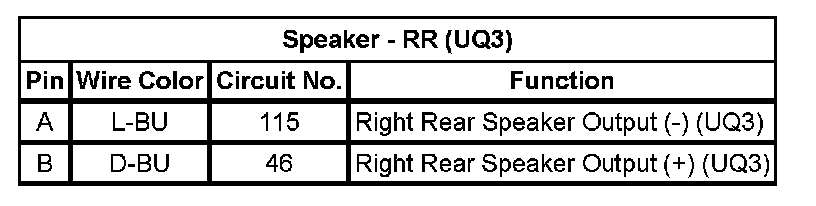

Speaker - RR (UQ3)

A/T Shift Lock Control Solenoid:

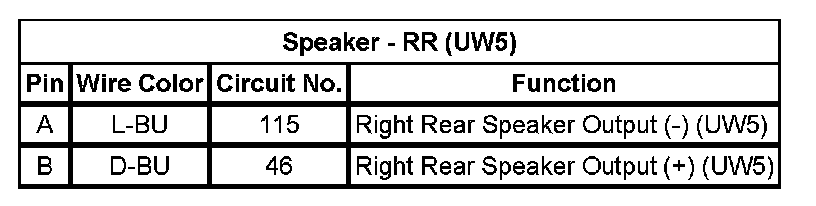

Speaker - RR (UW5)

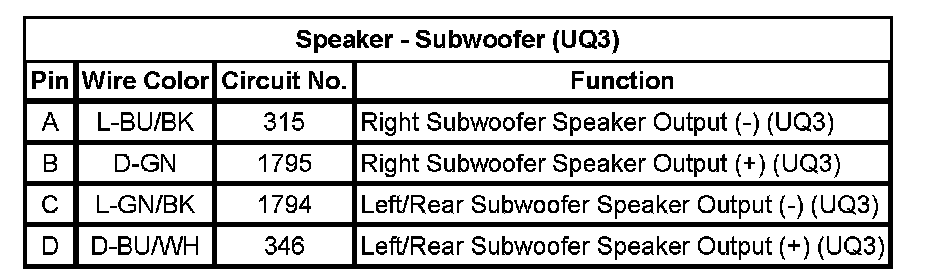

Speaker - Subwoofer (UQ3)
