Rear Fender Liner: Service and Repair

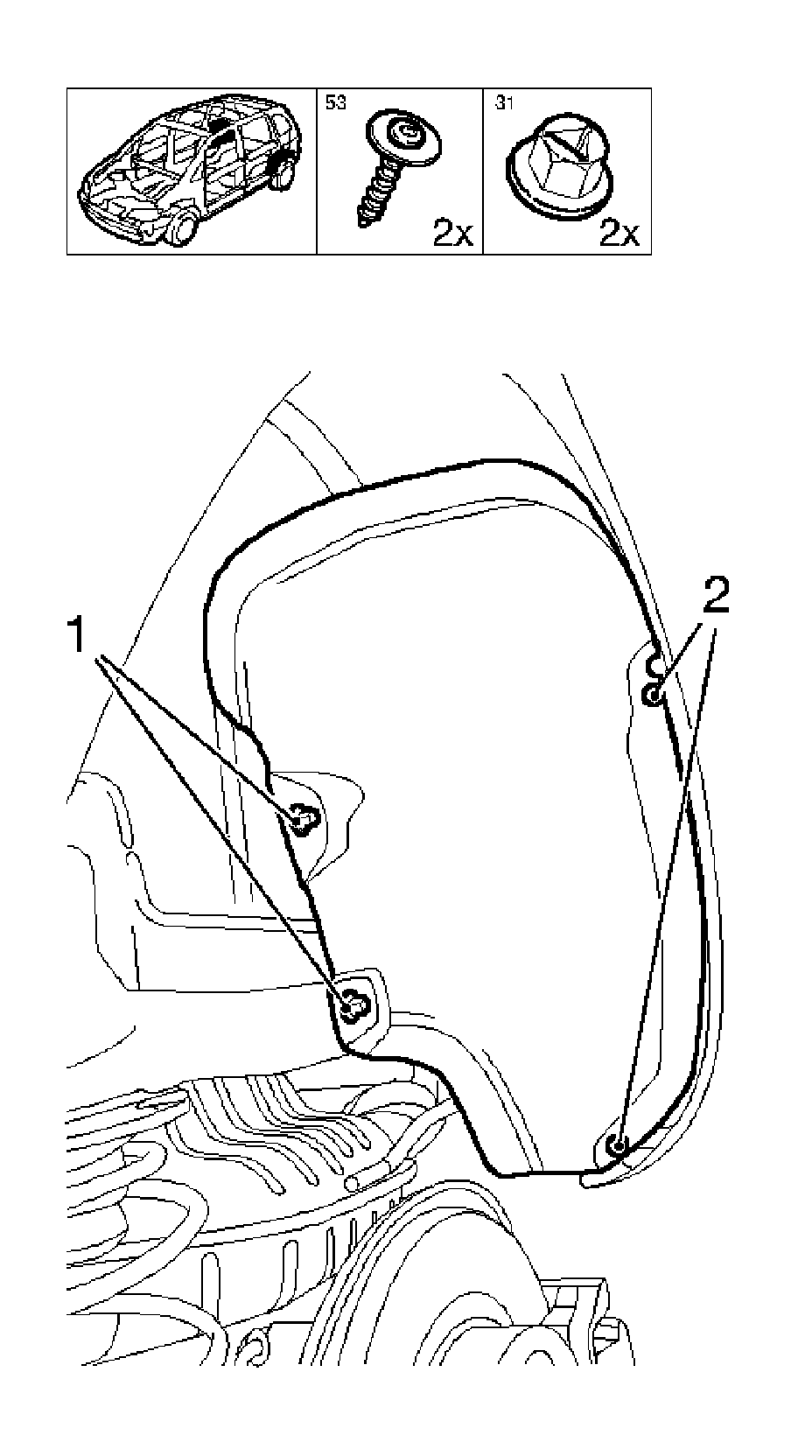

Rear Wheelhouse Panel Liner Replacement Removal Procedure Remove the rear wheelhouse panel liner.
-Remove the 2 bolts (2).
-Remove the 2 nuts (1).
Installation Procedure Notice:Refer to Fastener Notice .
Install the rear wheelhouse panel liner.
Tighten -Tighten the 2 nuts to 2.0 N �m (18 lb in).
-Tighten the 2 bolts to 2.5 N �m (22 lb in).
