Rear Seat Adjuster Handle Replacement



Rear Seat Adjuster Handle Replacement

Removal Procedure

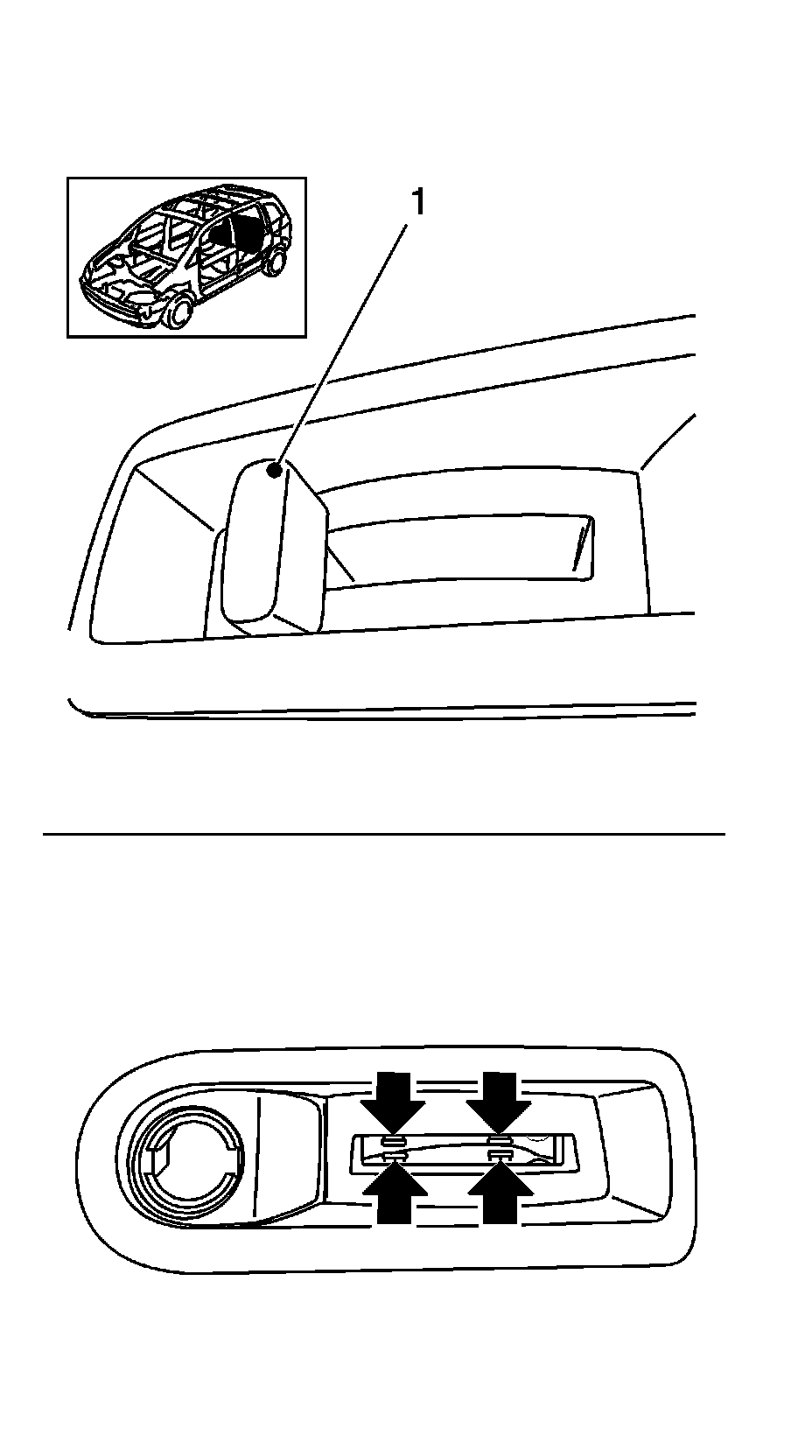

1. Remove the seat back cushion adjustment handle.
Release the handle (1) upwards.




2. Remove the seat back cushion release panel.

* Release the 4 lugs with a suitable tool.
* Remove upwards.




Installation Procedure

1. Install the seat back cushion release panel.

* Install the 4 lugs with a suitable tool.
* Install upwards.

2. Install the seat back cushion adjustment handle.
Install the handle.
