Blower Motor: Service and Repair



Blower Motor Replacement

Removal Procedure

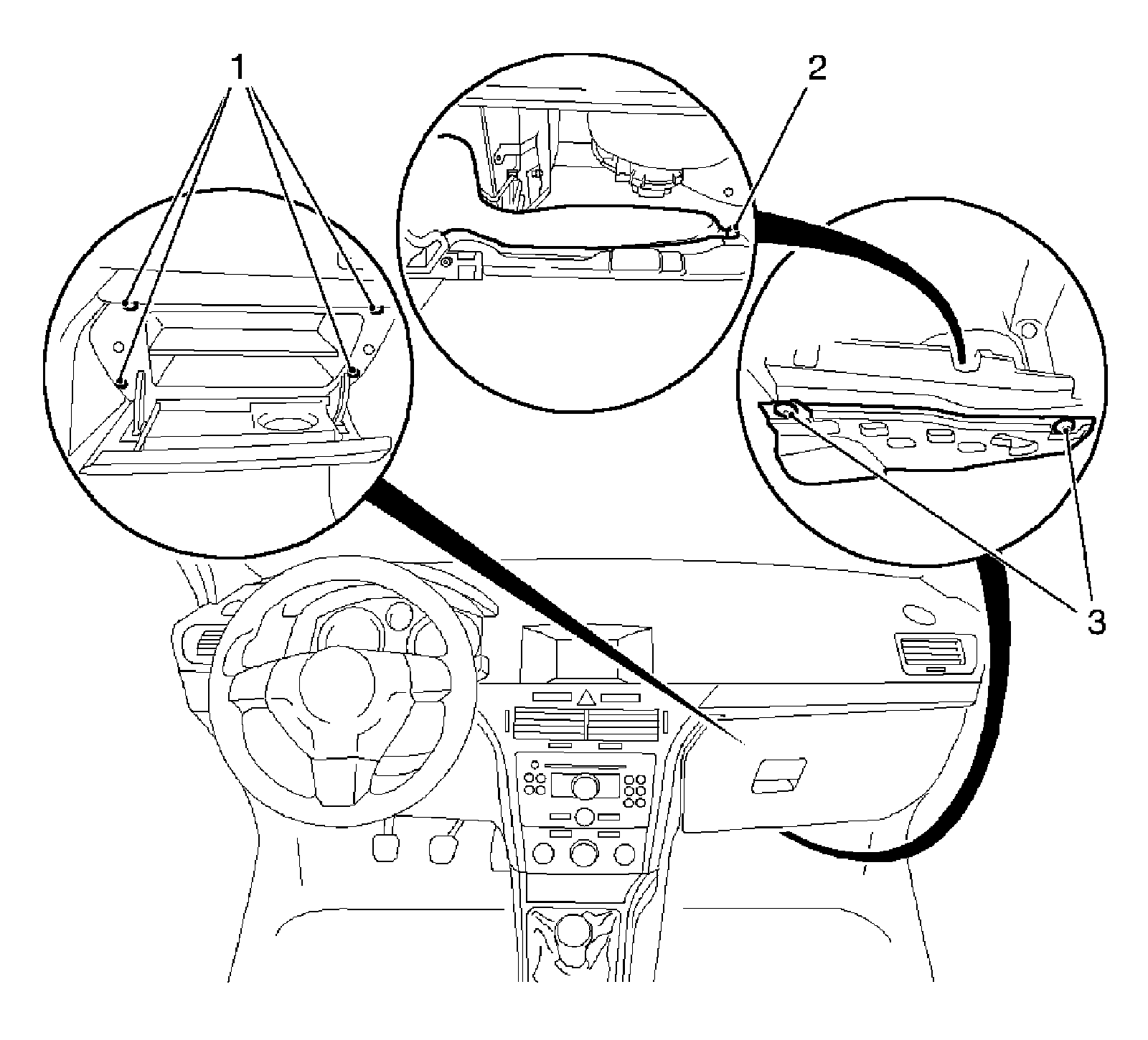

1. Remove the instrument panel (I/P) compartment.

1. Remove the 4 bolts (1).
2. Disconnect the wiring harness plug.

2. Remove the passenger side lower footwell trim.
Remove the bolt (3).
3. Remove the air duct.
Remove the body-bound rivet (2).

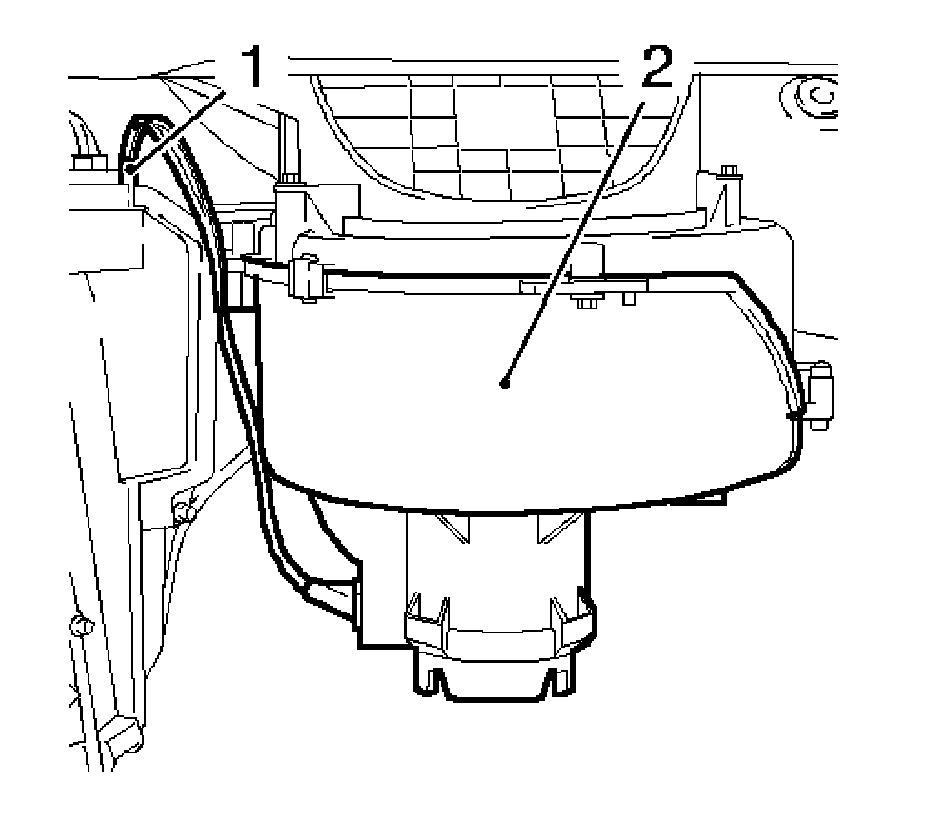

4. Remove the blower motor (2).

1. Disconnect the 2 wiring harness plugs (1) from series resistor.
2. Remove the 5 bolts.




Installation Procedure


Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the blower motor.

1. Connect the clip.

Tighten the 5 bolts to 6 N.m (63 lb in).

2. Connect the 2 wiring harness plugs.

2. Install the air duct.
Install the body-bound rivet.
3. Install the lower right footwell trim.

Tighten the bolt - pivot and lock.

4. Install the I/P compartment.
Connect the wiring harness plug.

Tighten the 4 bolts to 4 N.m (35 lb in).
