Evaporator Drain Tube: Service and Repair
Air Conditioning Evaporator and Blower Module Drain Hose ReplacementRemoval Procedure 1.
Remove the drain hose from the dash.
2.

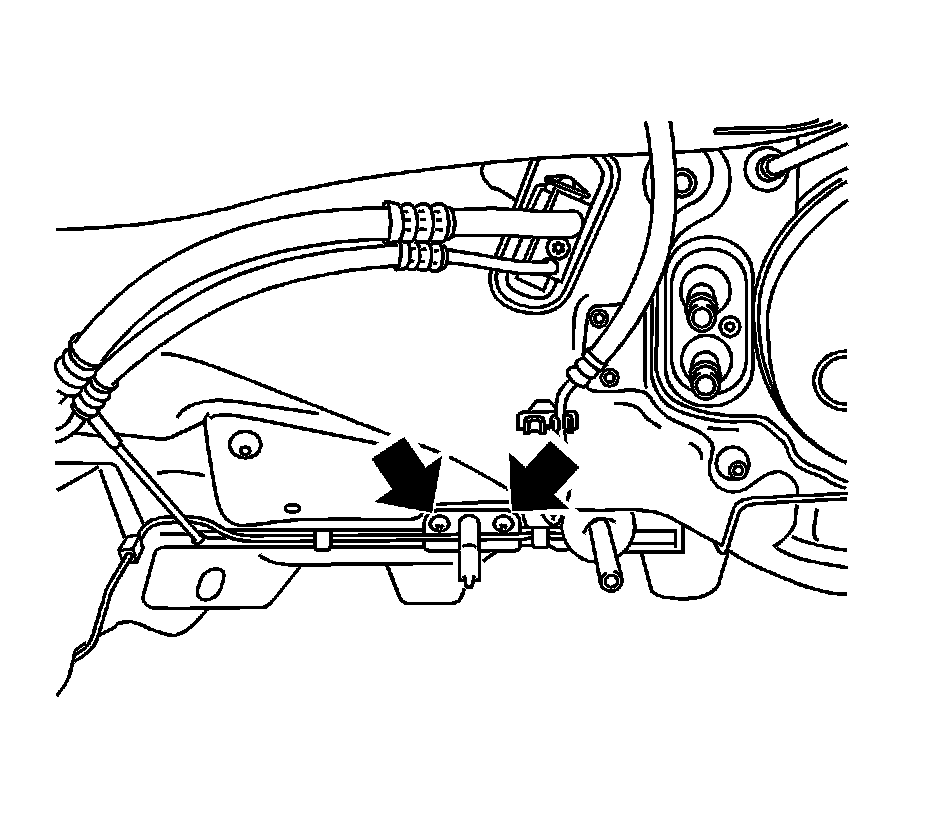

Remove the 2 bolts.
Installation ProcedureNotice: Refer to Fastener Notice (
Fastener Notice) .
Install the drain hose to the dash.
Tighten the 2 bolts to 5 N.m (44 lb in).
