Shifter A/T: Service and Repair



Transmission Control Lever Boot Replacement

Removal Procedure






Important: If the selector lever is not in the P position when the vehicle is left standing for a long period the battery can run flat. To prevent the battery from discharging, always remove the ignition key from the ignition lock when leaving for a period, including overnight.

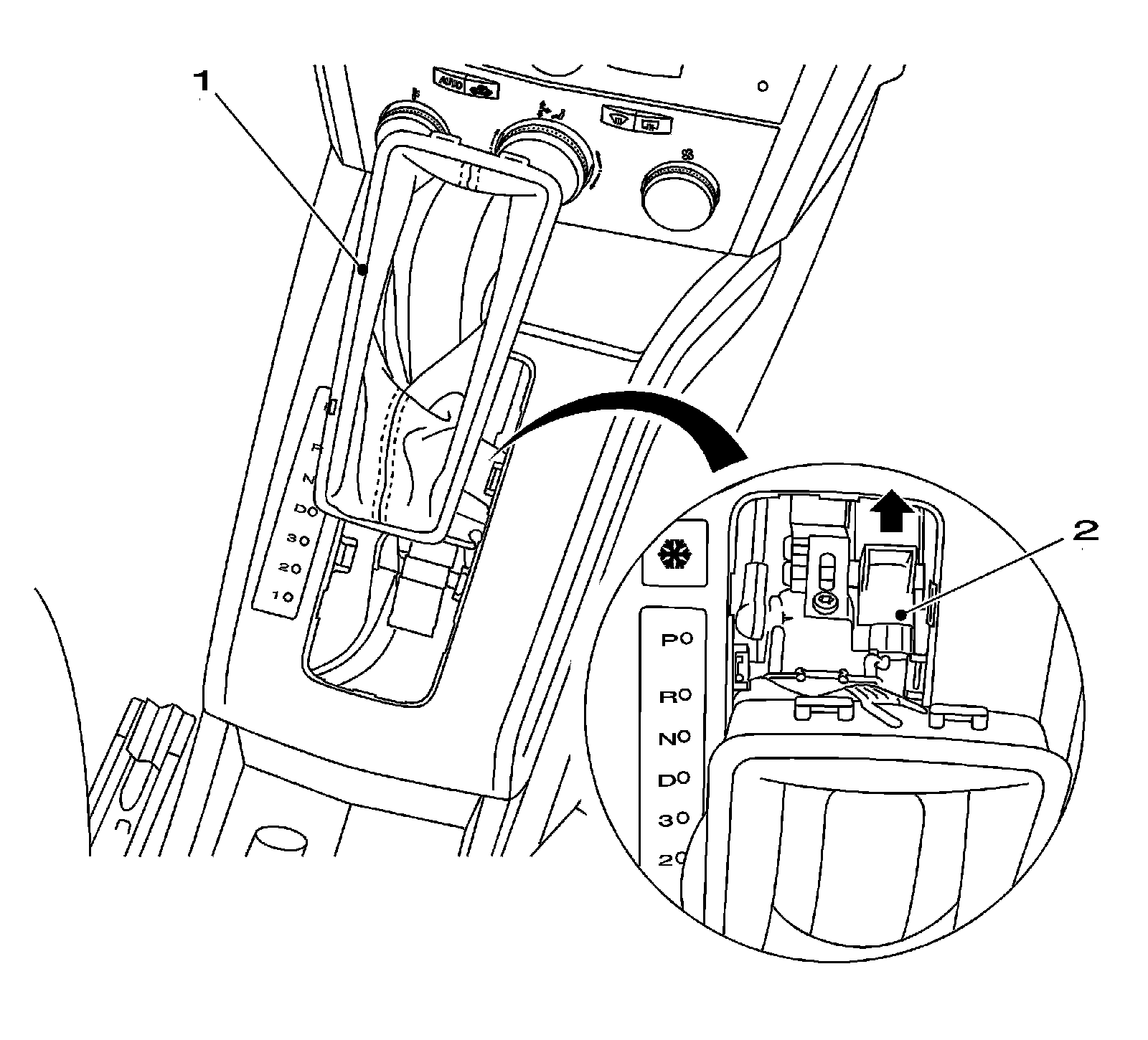

1. Carefully remove the selector lever boot (1) from the selector lever cover.
Slide the boot upwards.
2. Release the selector lever.

* Use a suitable tool to push the release lever (2) on the selector lever lock solenoid switch forwards (arrow) and hold in this position.
* Press the lock control on the selector lever and disengage the selector lever from the P position.




Installation Procedure

Clip the selector lever boot into the selector lever cover.
