Engine Harness Routing

Harness Routing Views

Engine Harness - Rear (LZ4)

1 - X108
2 - Engine Control Module (ECM) X2
3 - Engine Control Module (ECM) X1
4 - X103
5 - Upper Intake Manifold
6 - Ignition Control Module (ICM)
7 - Transmission
8 - G106
9 - G105
10 - Fuse Block - Underhood

Engine Harness - Rear (LY7)

1 - X108
2 - G105
3 - J198
4 - Upper Intake Manifold
5 - G111
6 - Fuse Block - Underhood X1

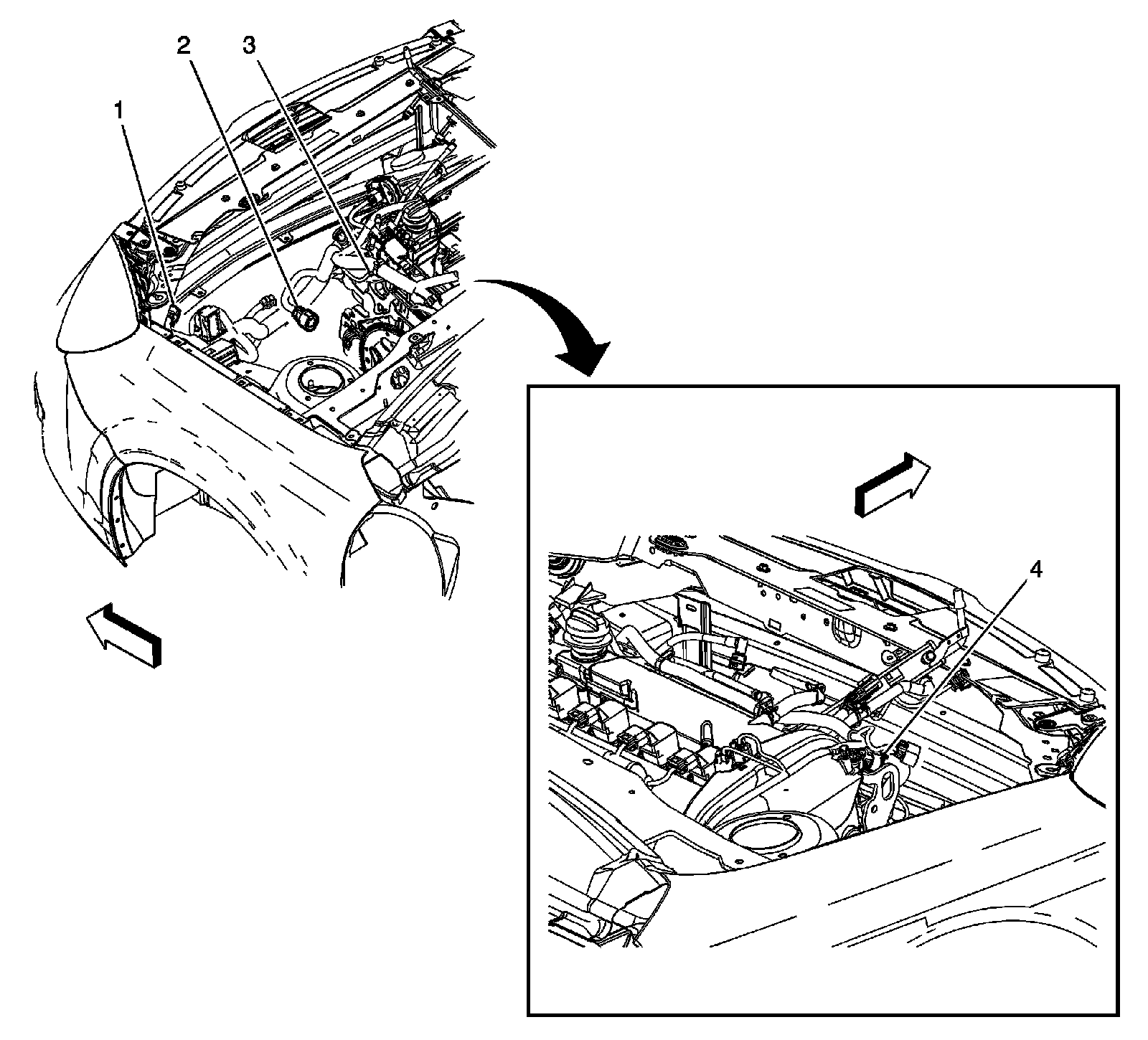

Engine Harness Routing (LE5)

1 - X108
2 - X100
3 - G106
4 - X130
