Ignition Coil(s) Replacement - Bank 1




Ignition Coil Replacement - Bank 1

Removal Procedure




1. Remove the injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LY7) (Service and Repair)Fuel Injector Sight Shield Replacement (LCS) (Service and Repair).

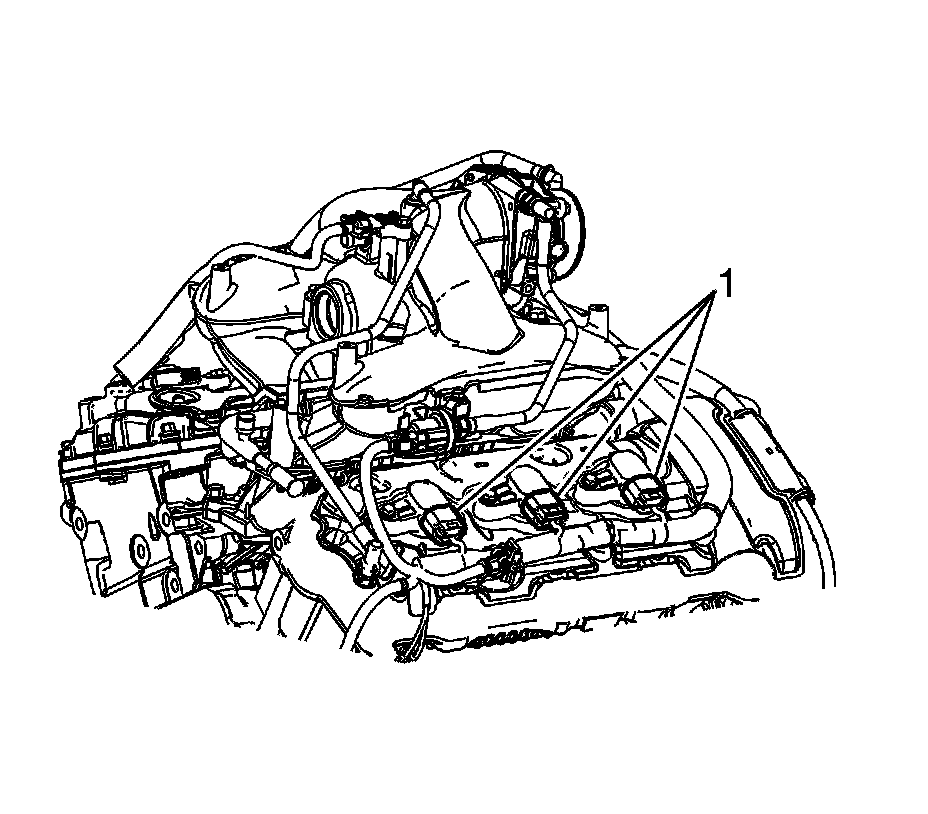

2. Disconnect the engine wiring harness electrical connectors (1) from the ignition coils.




3. Remove the ignition coil bolts.
4. Remove the ignition coils.

Installation Procedure




1. Install the ignition coils.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the ignition coil bolts. Tighten the bolts to 10 Nm (89 lb in).




3. Connect the engine wiring harness electrical connectors (1) to the ignition coils.
4. Install the injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LY7) (Service and Repair)Fuel Injector Sight Shield Replacement (LCS) (Service and Repair).
