Generator Control Module Bracket Reinforcement Replacement




Generator Control Module Bracket Replacement

Removal Procedure




1. Remove the windshield washer solvent container filler tube assembly bolt.

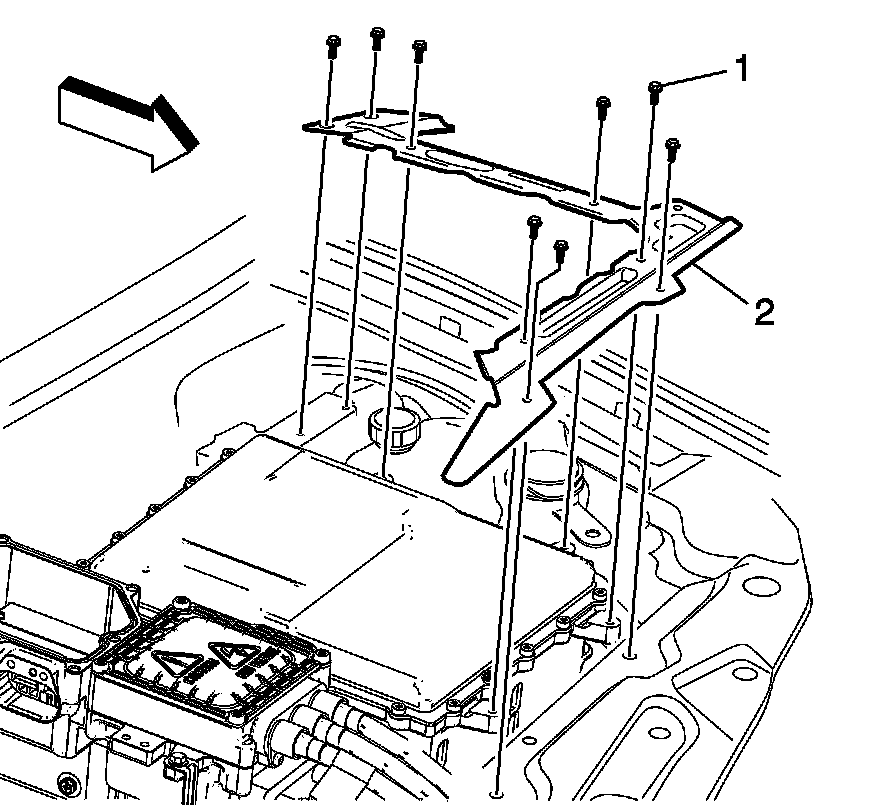

2. Remove the drive motor generator control module assembly support retaining bolts (1).
3. Remove the drive motor generator control module assembly support (2).

Installation Procedure




1. Install the drive motor generator control module assembly support (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drive motor generator control module assembly support retaining bolts (1). Tighten the bolts to 11 Nm (97 lb in).
3. Install the windshield washer solvent container filler tube assembly bolt. Tighten the bolt to 10 Nm (89 lb in).
