Skid Control ECU Communication Stop Mode

SKID CONTROL ECU COMMUNICATION STOP MODE

Circuit Description:

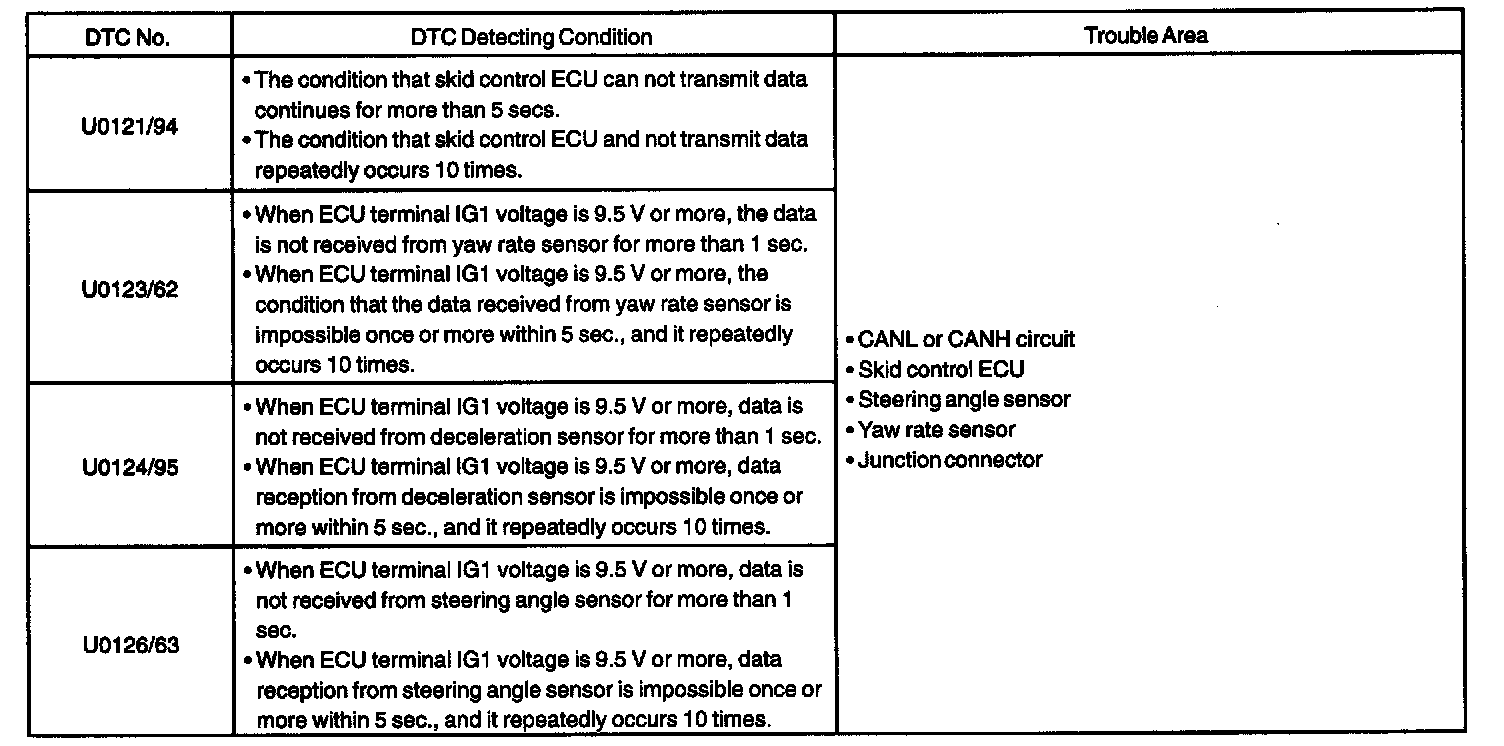

CIRCUIT DESCRIPTION

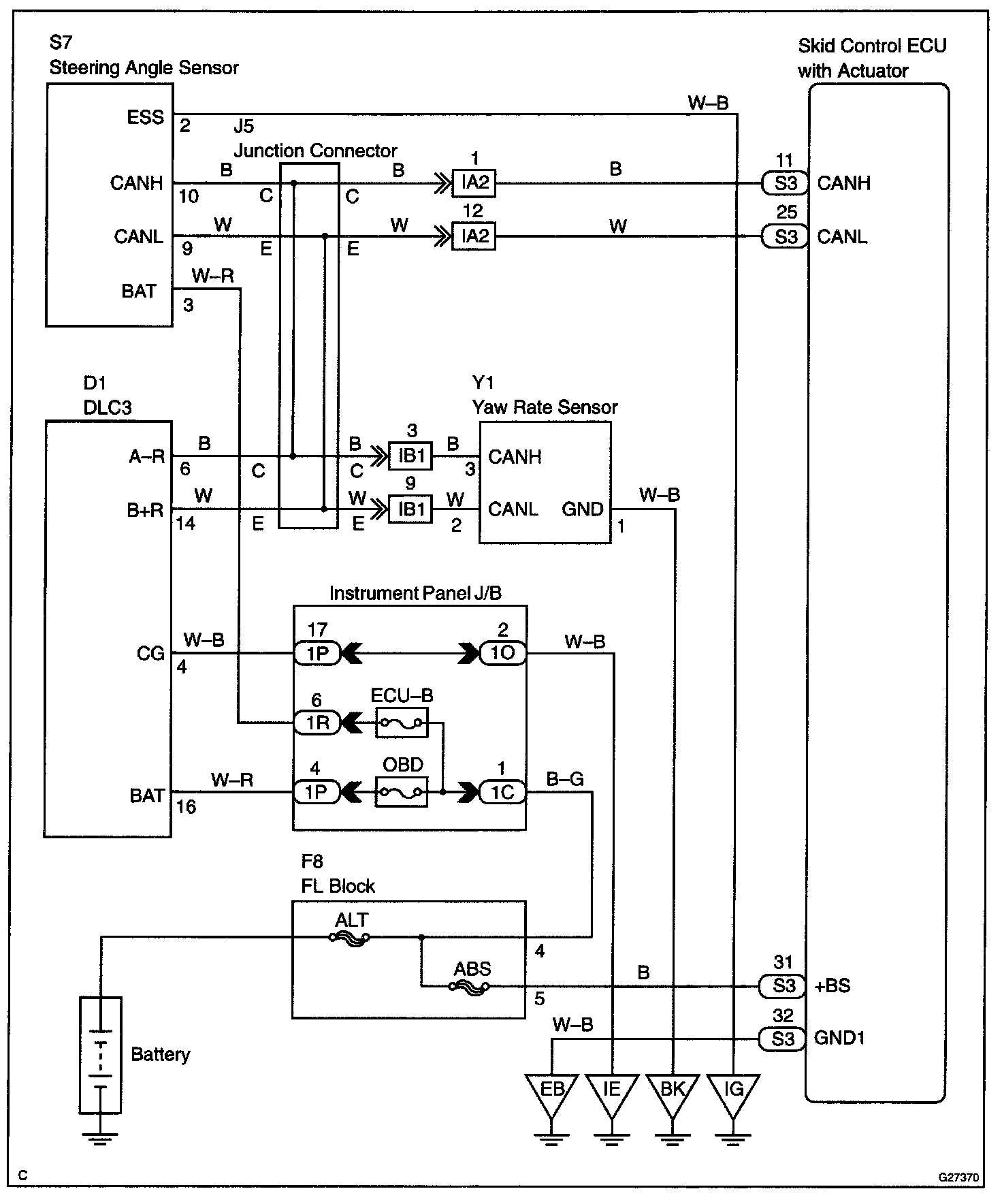

Wiring Diagram:

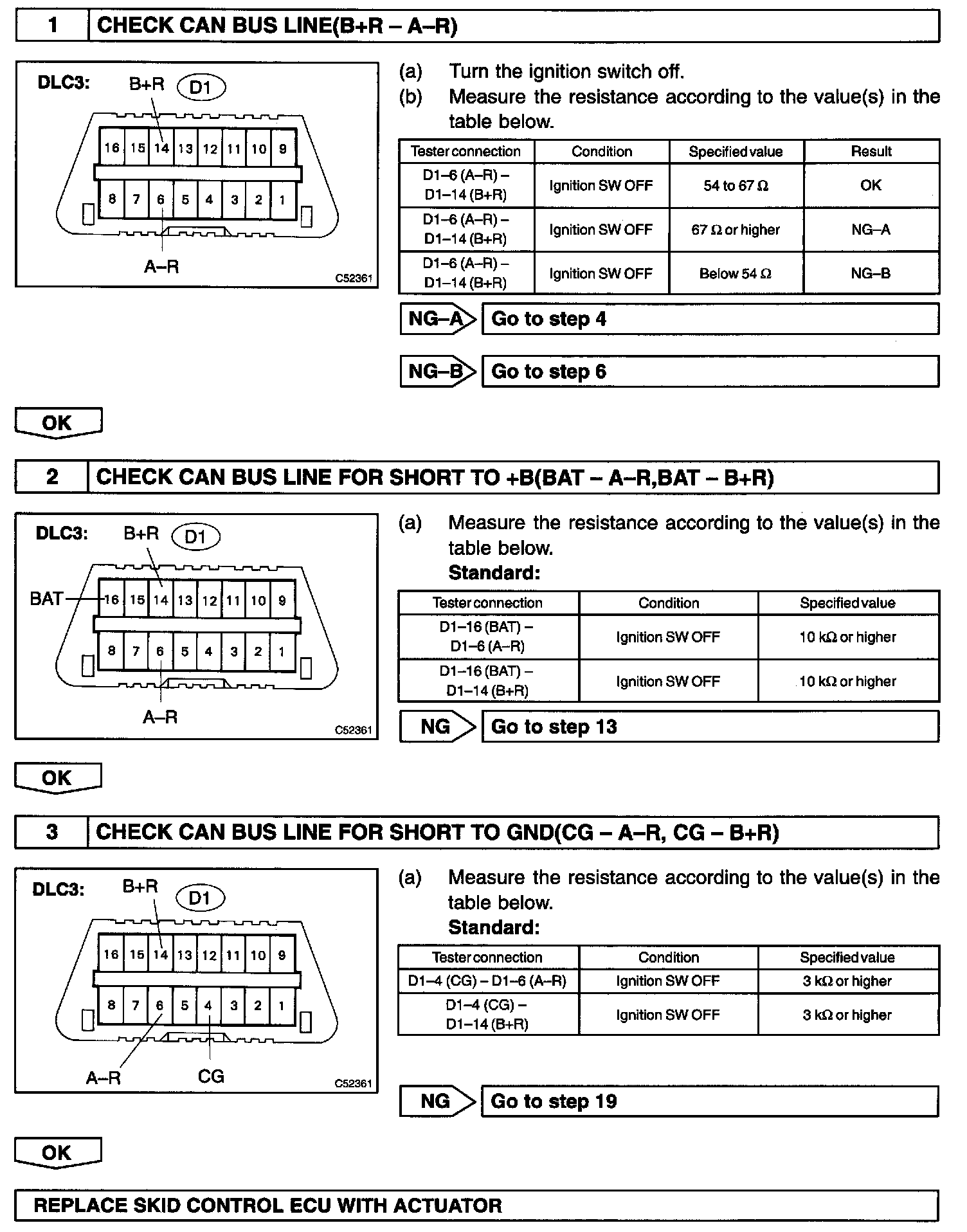

Step 1 - 3:




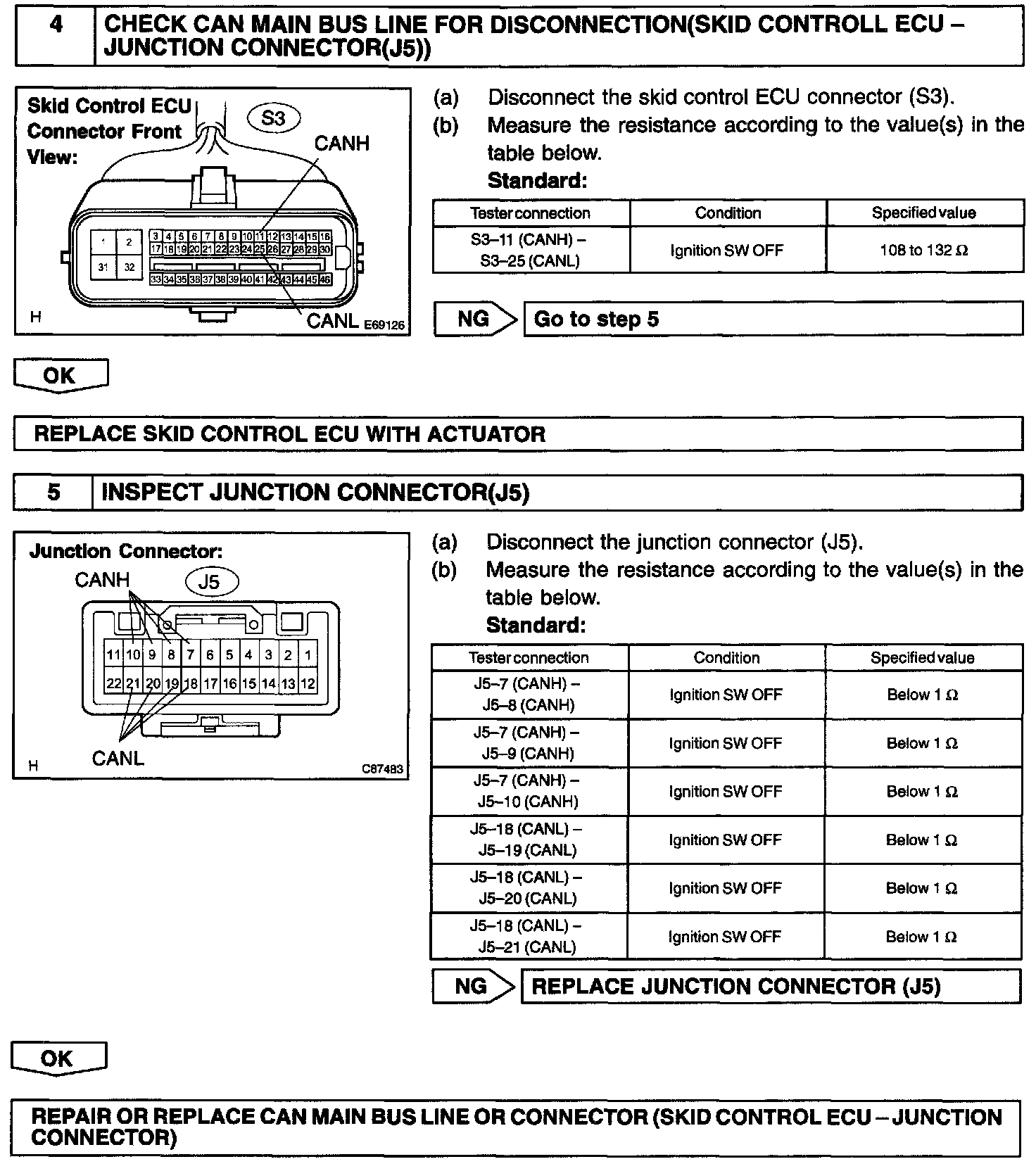

Step 4 - 5:

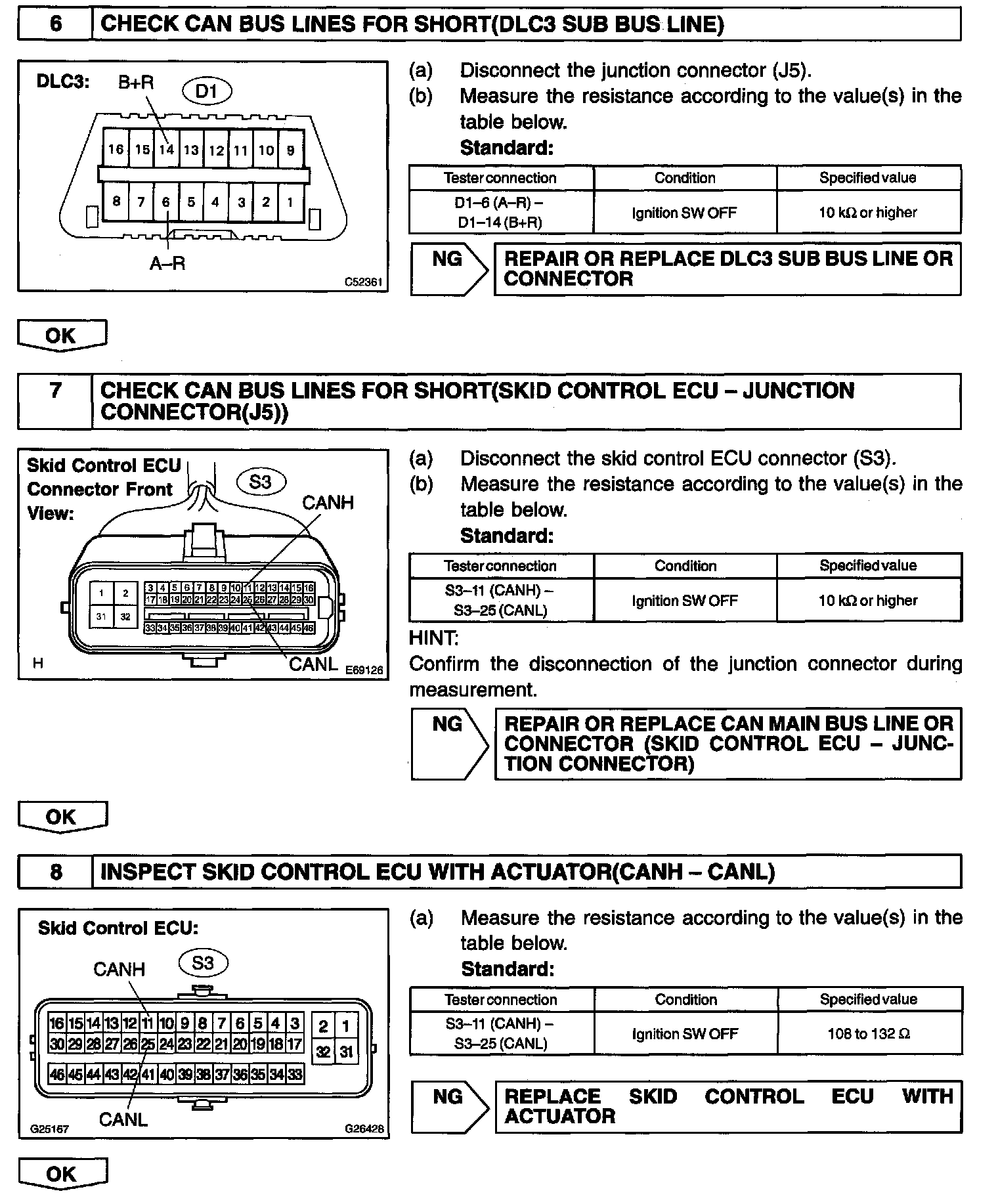

Step 6 - 8:




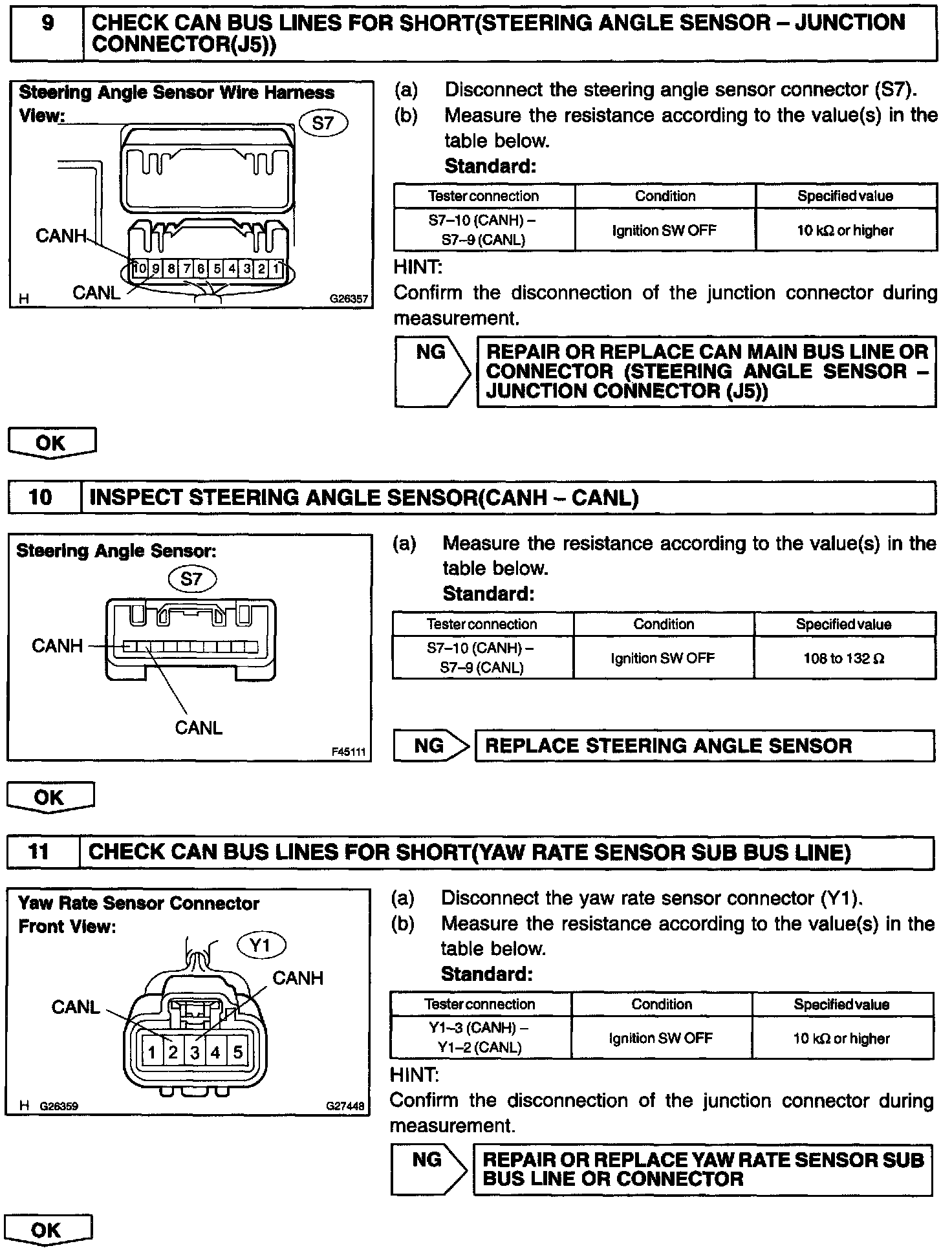

Step 9 - 11:




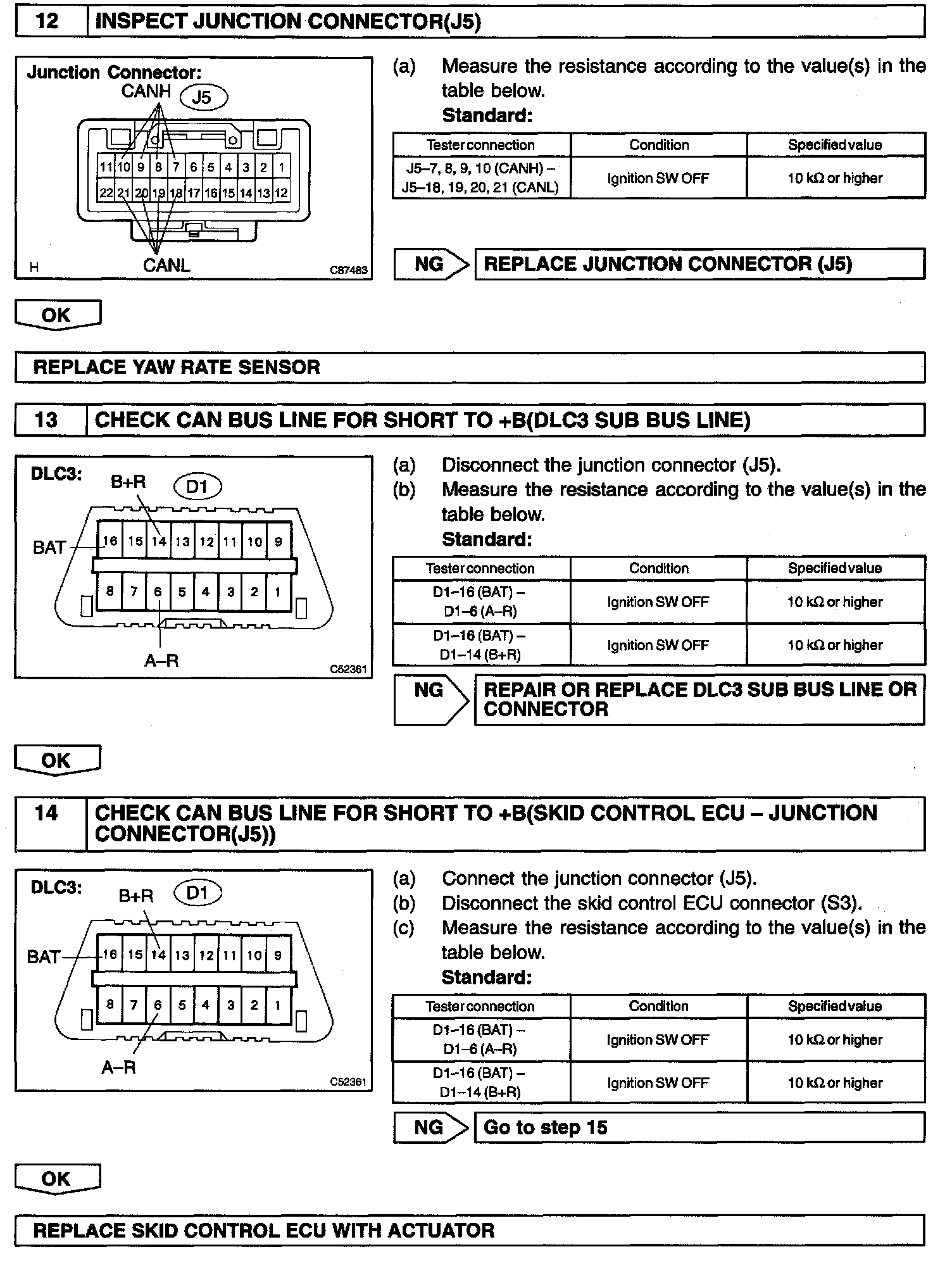

Step 12 - 14:

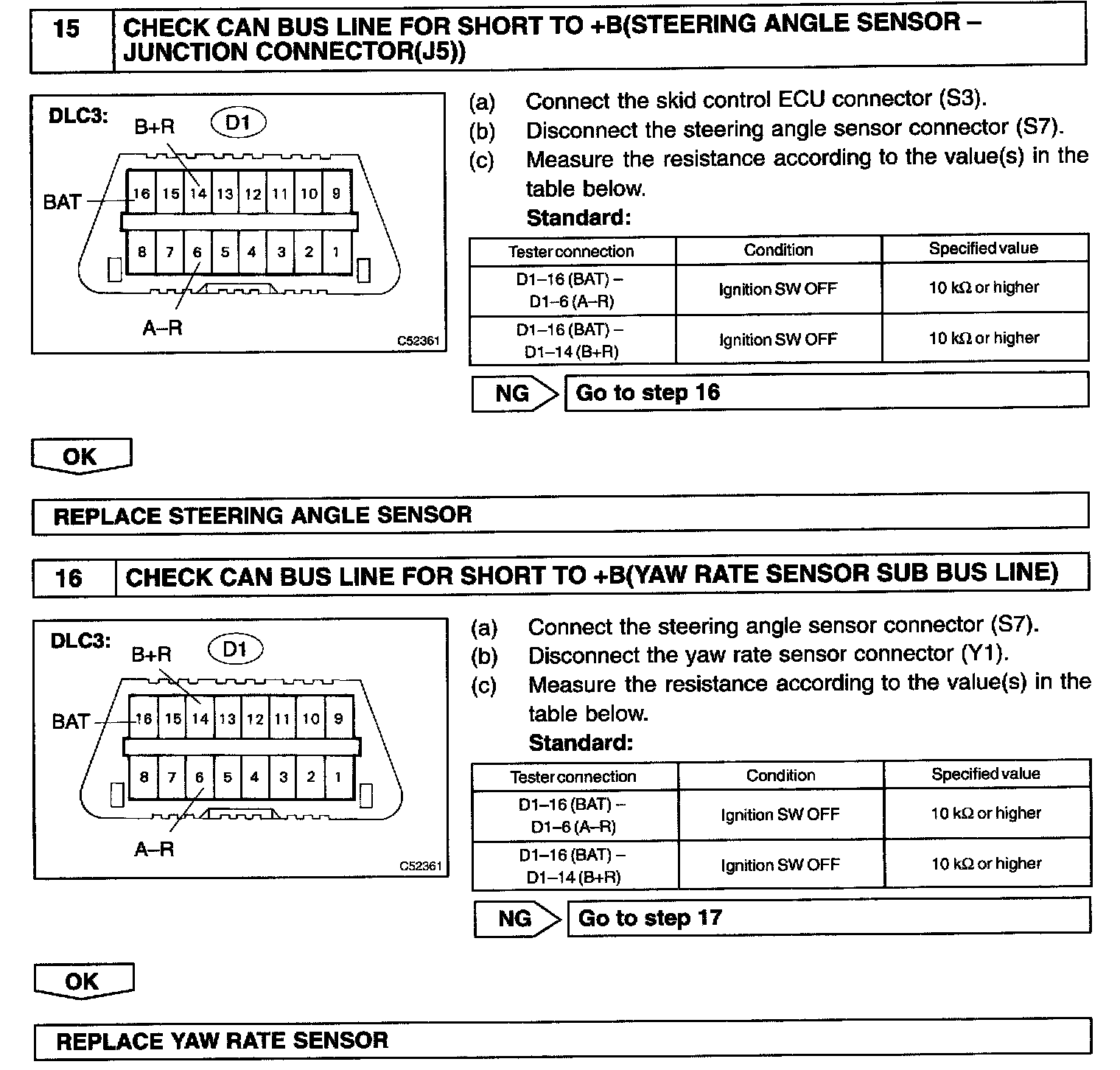

Step 15 - 16:

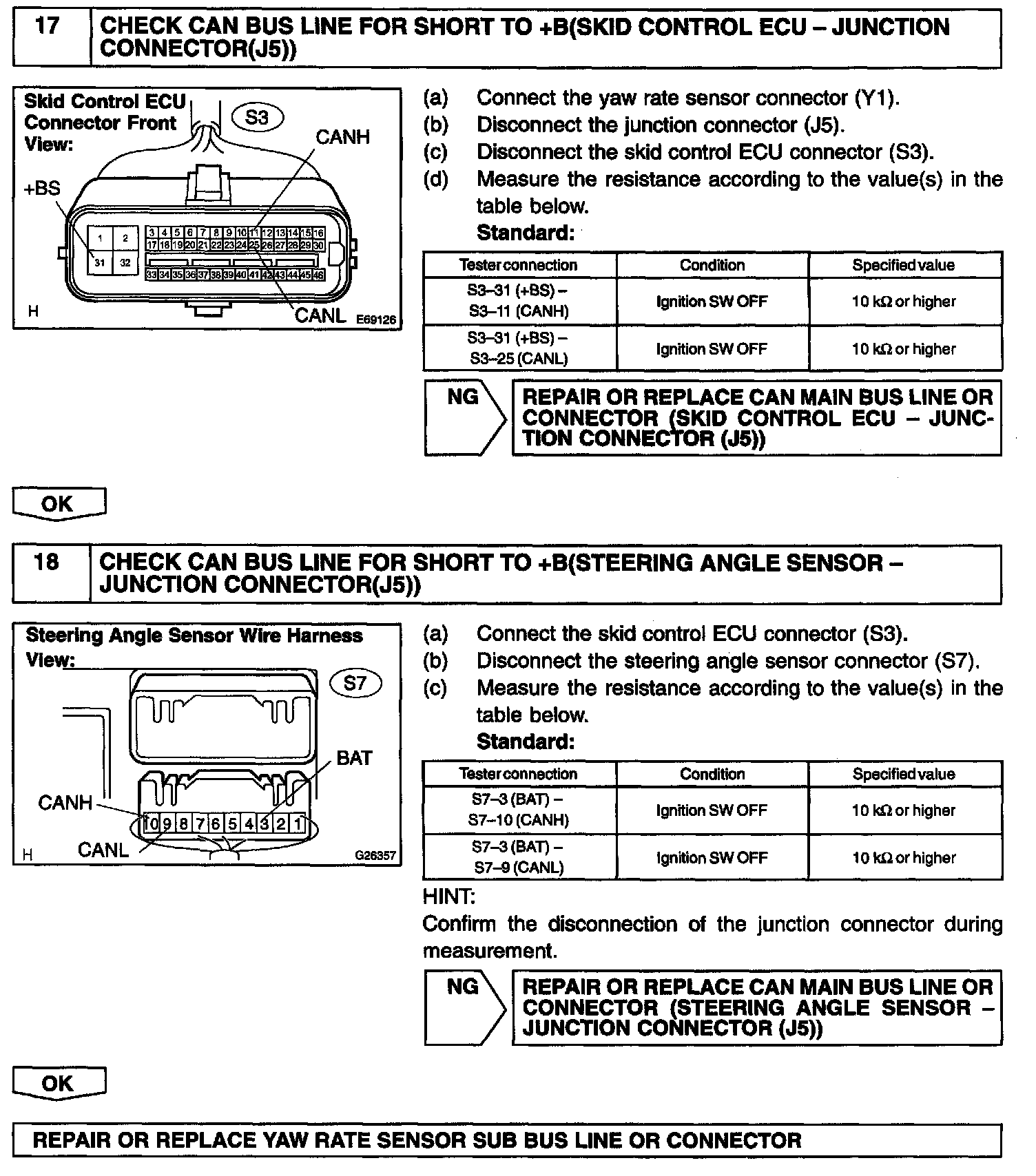

Step 17 - 18:

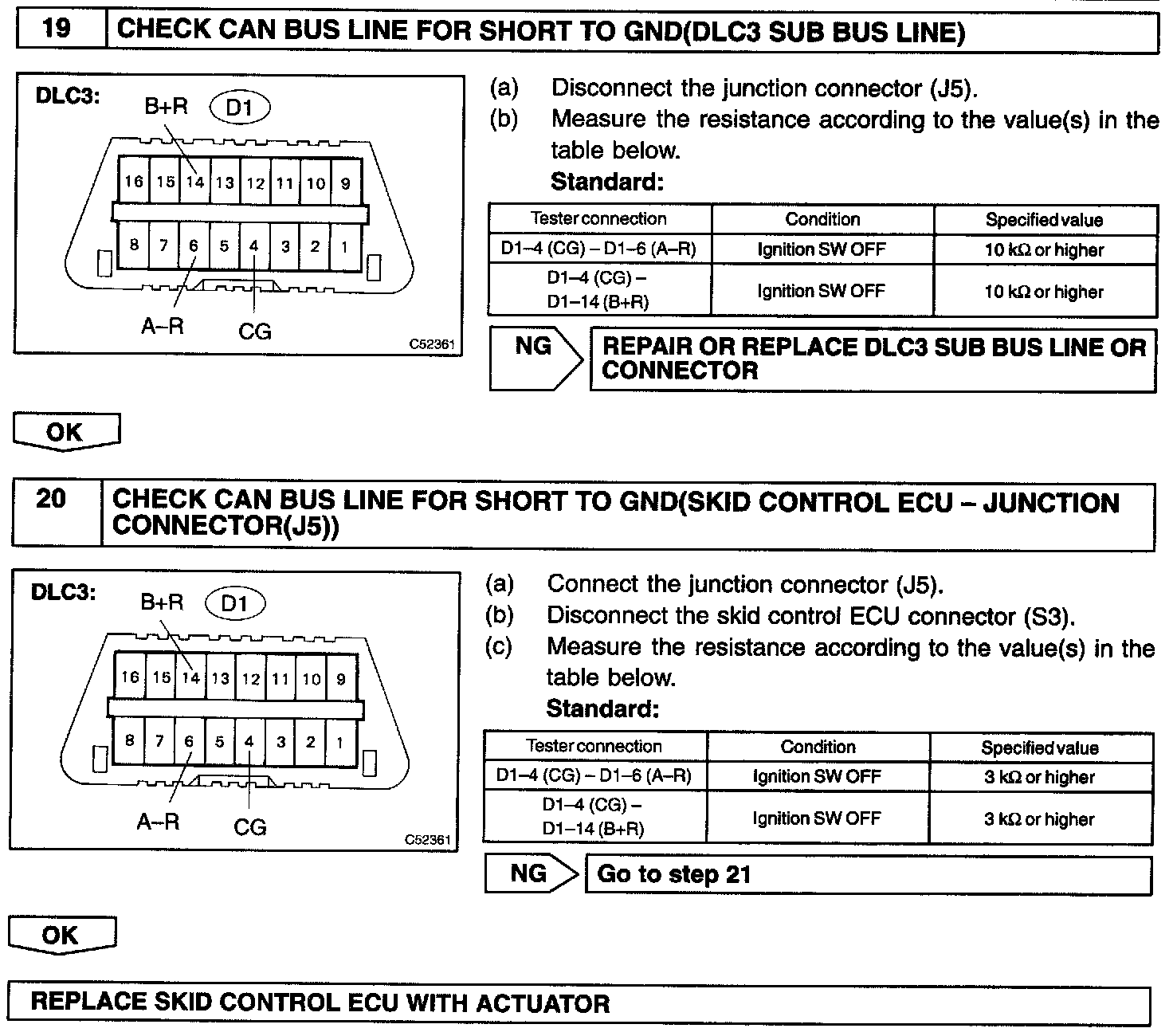

Step 19 - 20:

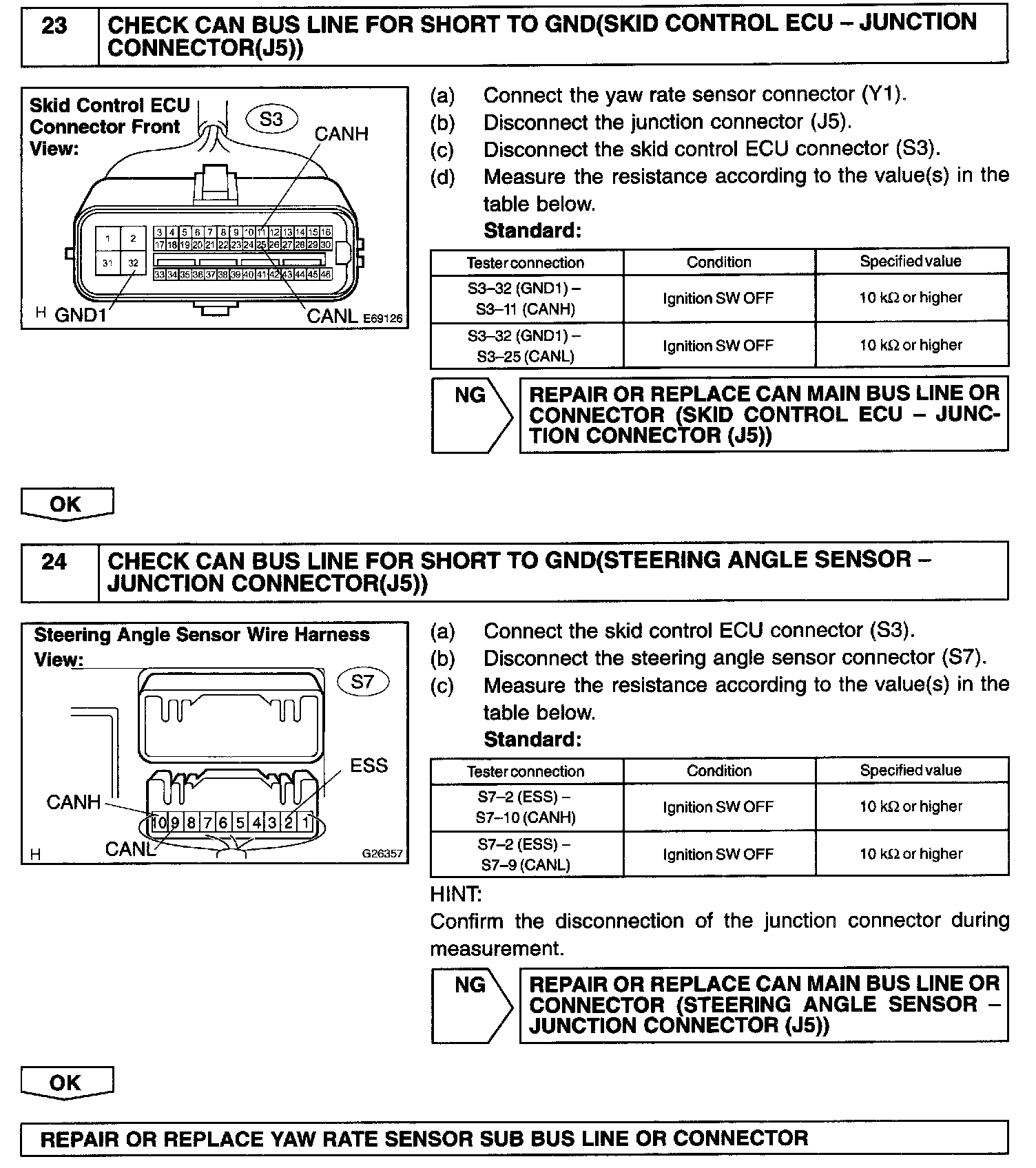

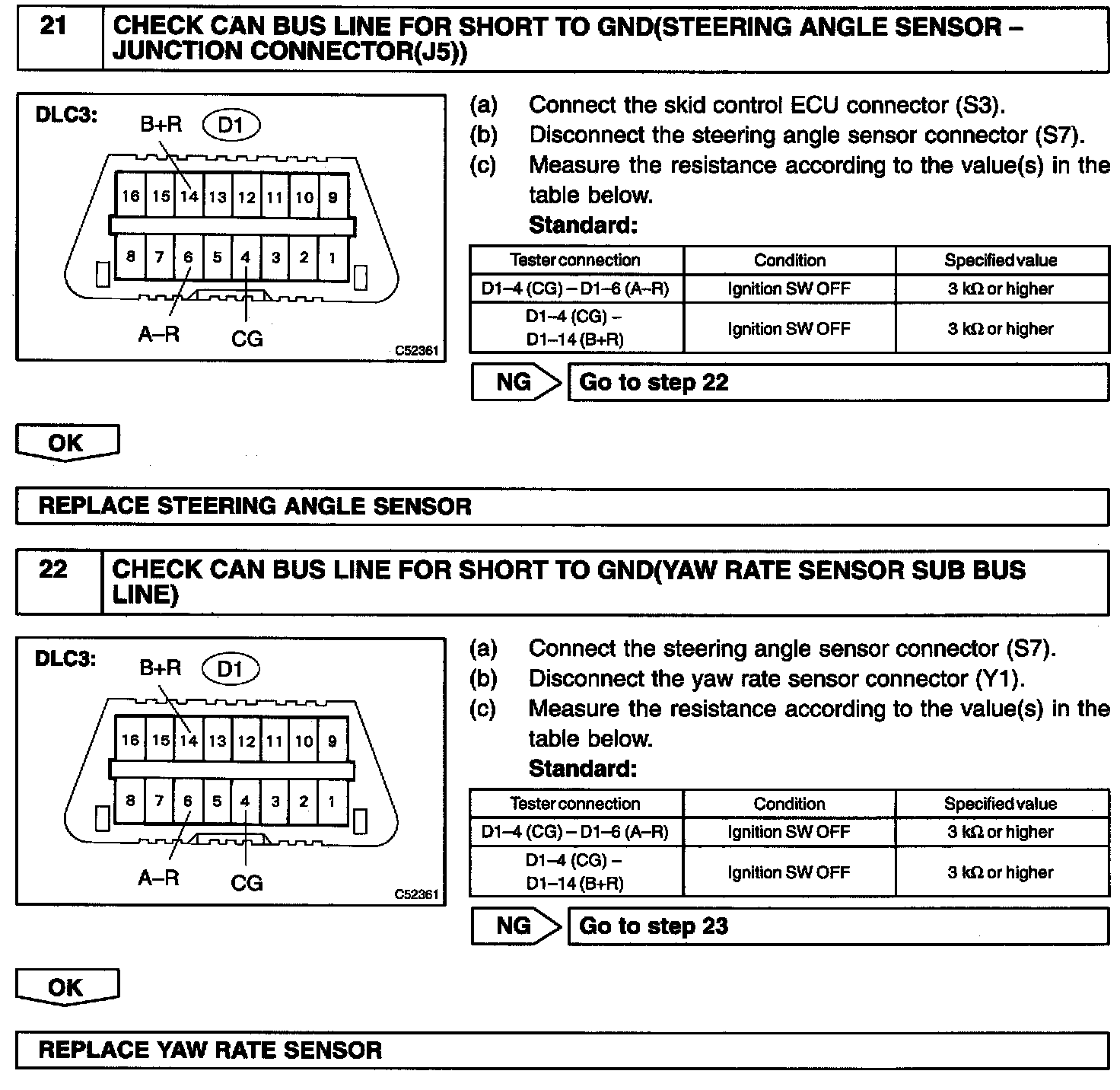

Step 21:




Step 23 - 24:




INSPECTION PROCEDURE
