Power Window Safety Switch: Testing and Inspection




INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

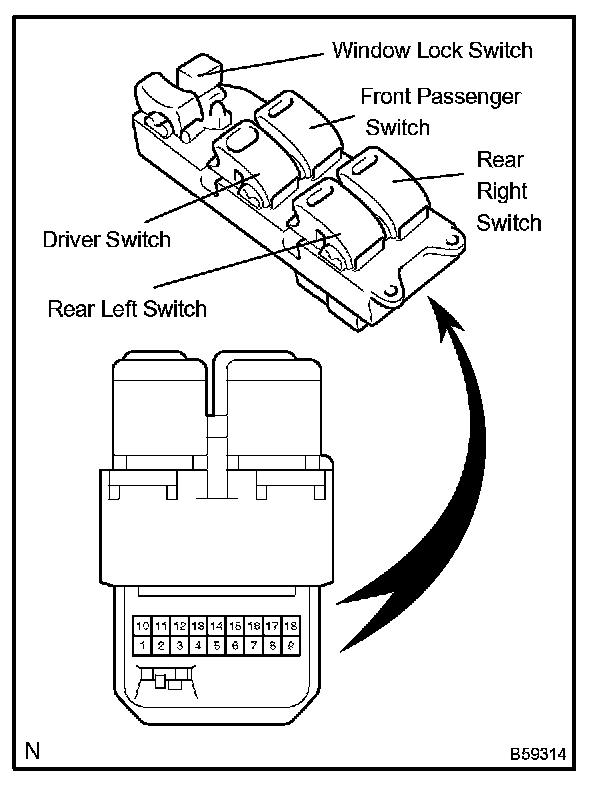

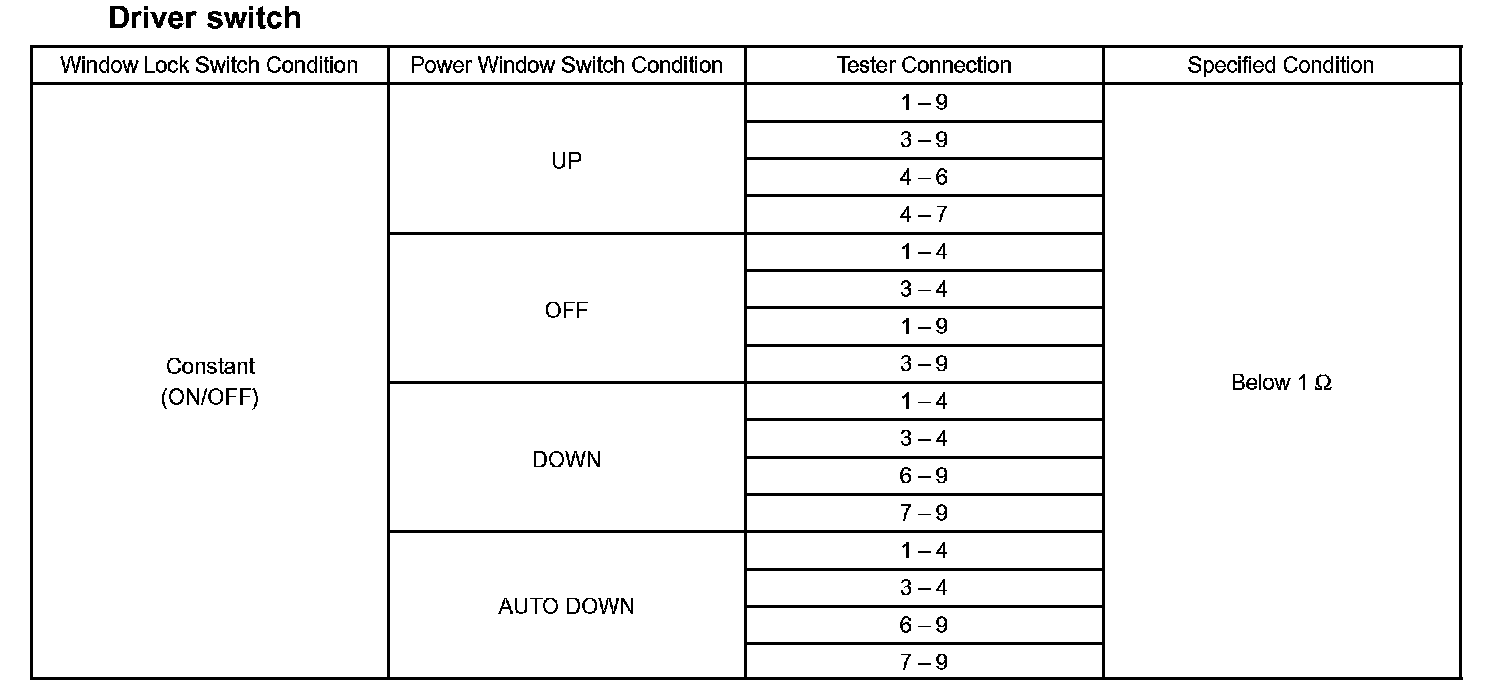

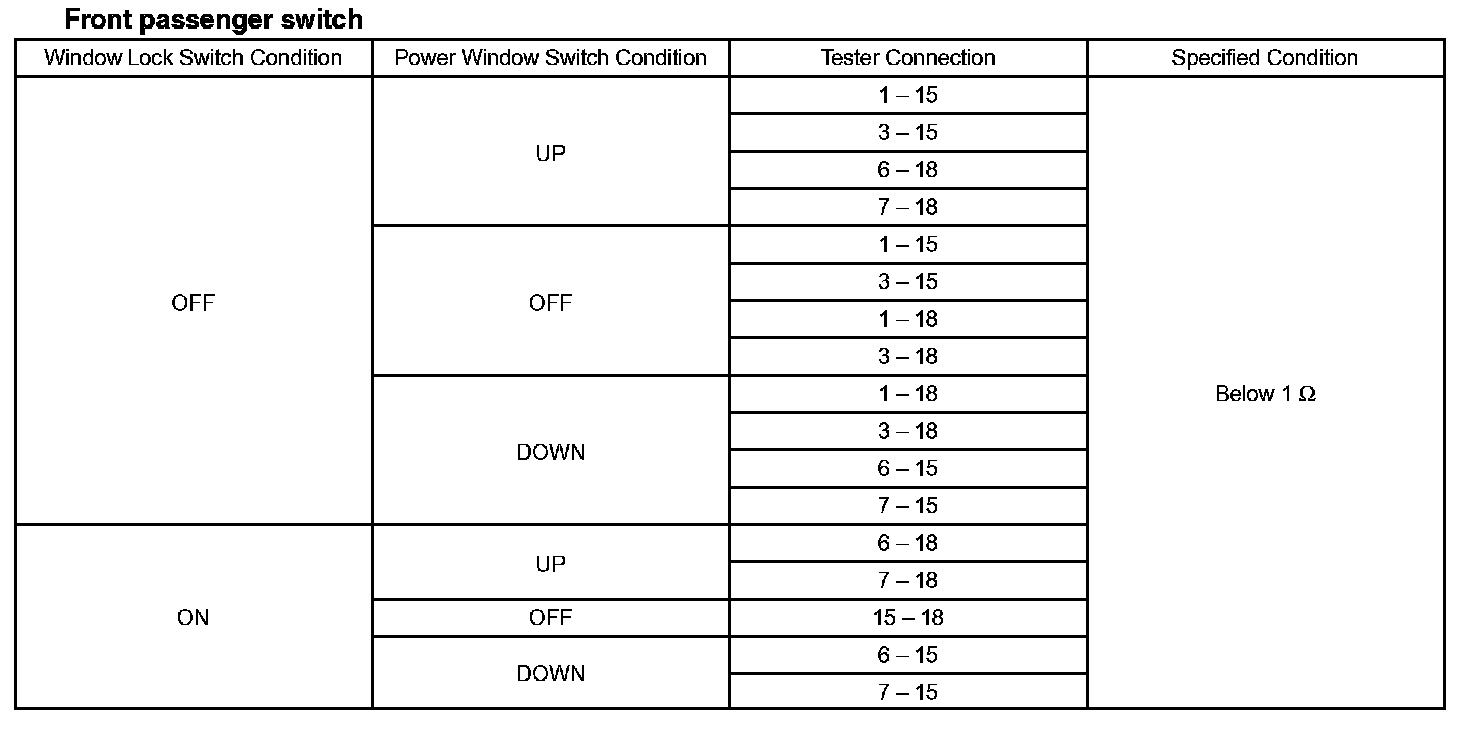

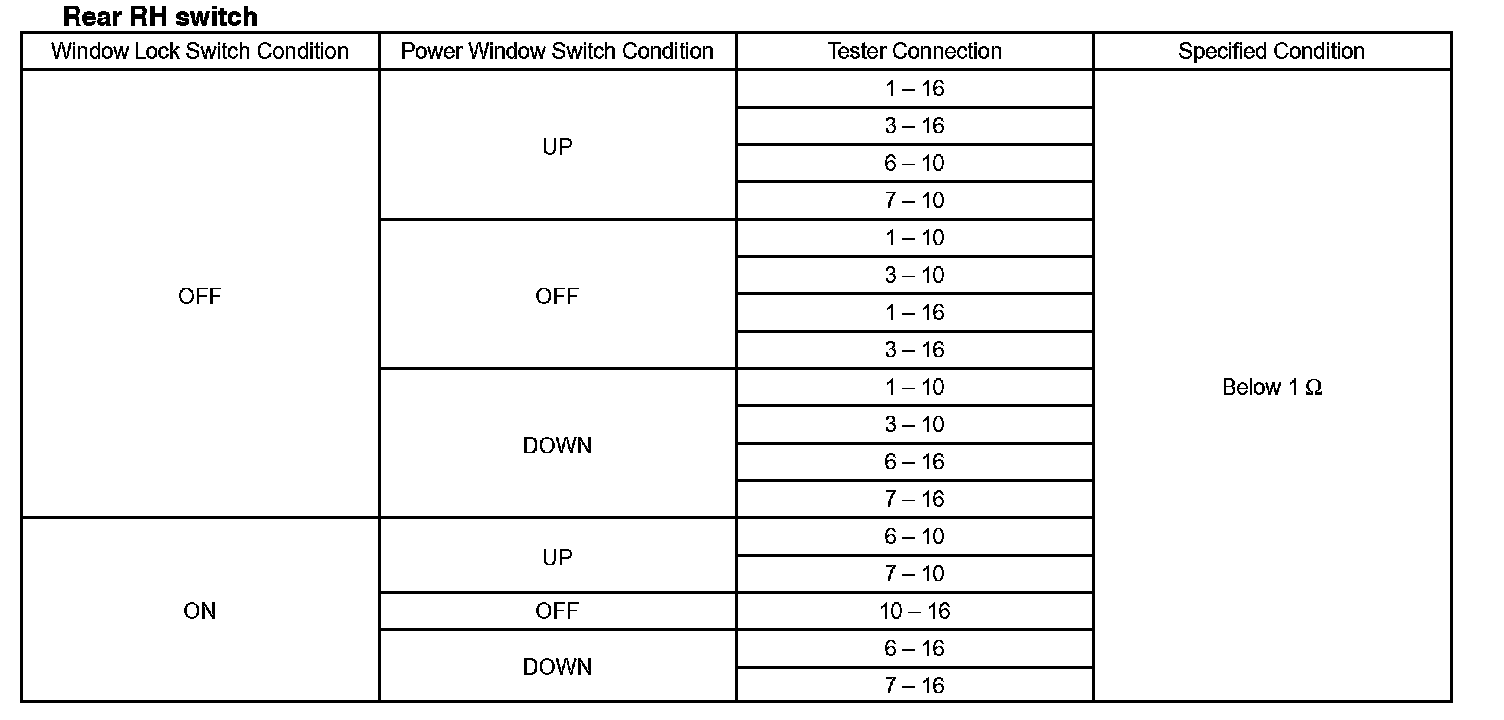

a. Check the resistance between each terminal of the connector when the switch is operated.

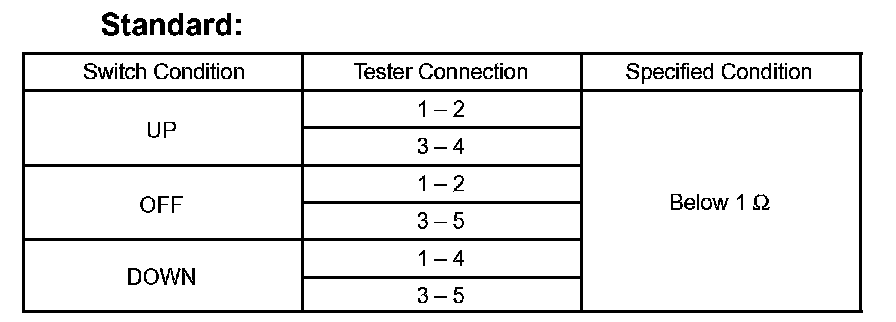

Standard

If the result is not as specified, replace the master switch assy.

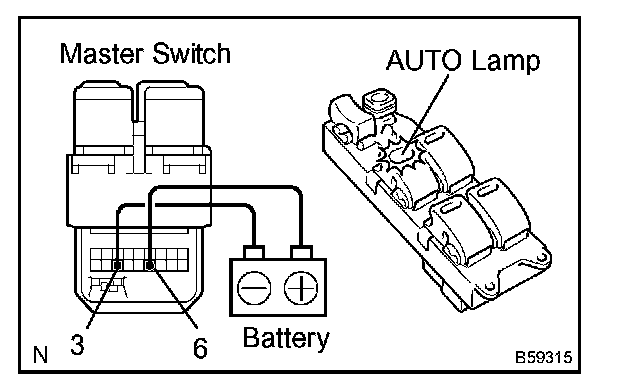

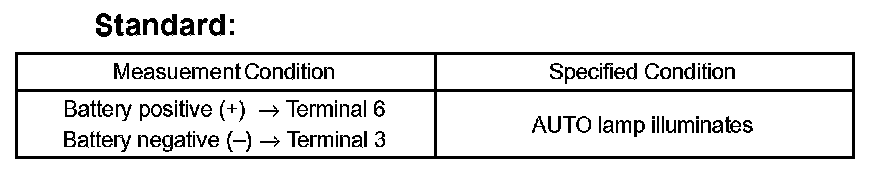

b. Apply battery voltage to the master switch terminal, and check the AUTO lamp.
If the result is not as specified, replace the master switch assy.







INSPECT POWER WINDOW REGULATOR SWITCH ASSY

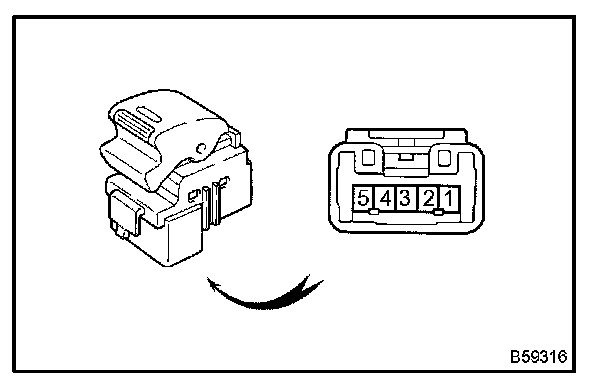

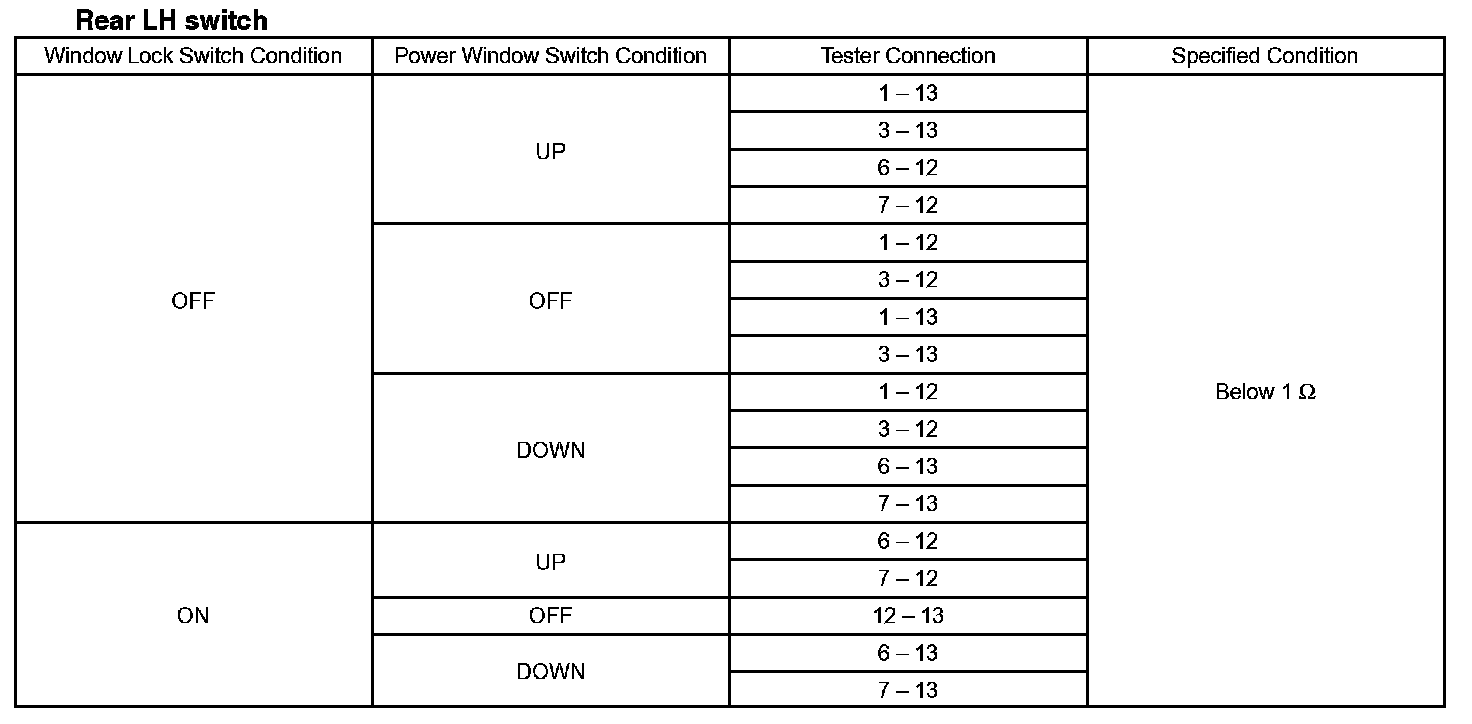

a. Check the resistance between each terminal of the connector when the switch is operated.
If the result is not as specified, replace the regulator switch assy.







INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

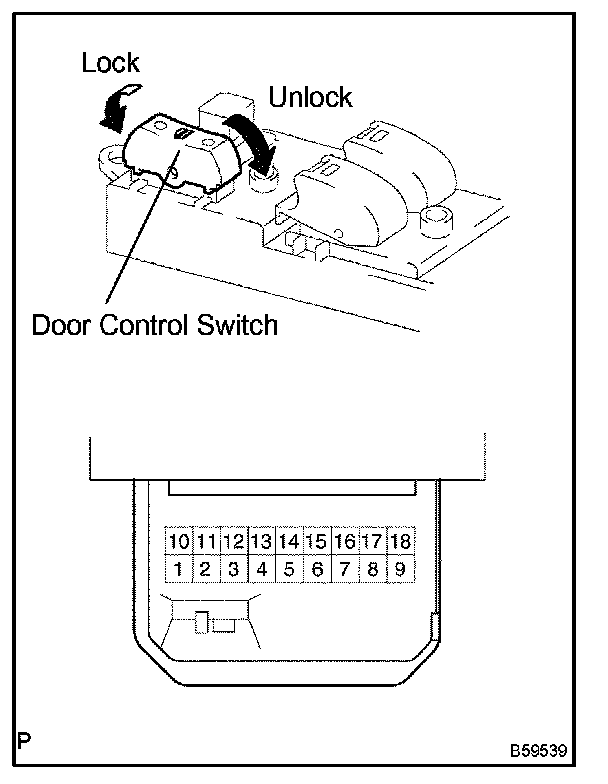

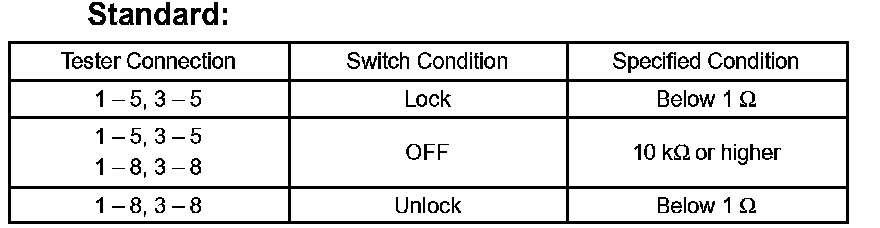

a. Check the resistance of the door control switch.
If the result is not as specified, replace the switch assy.
