Wiper Switch: Service and Repair
WINDSHIELD WIPER SWITCH ASSY REPLACEMENT 1.
REMOVE STEERING COLUMN COVER
2.
REMOVE WINDSHIELD WIPER SWITCH ASSY
a.
Disconnect the connector.
b.

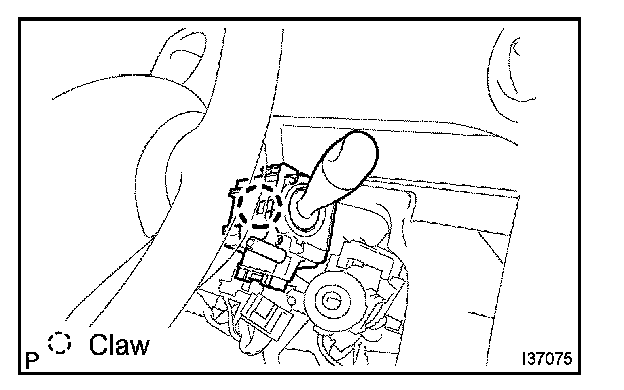

Using a screwdriver, disengage the claw and pull out the windshield wiper switch assy.
HINT: Tape up the screwdriver tip before use to avoid damage.
3.
INSTALL STEERING COLUMN COVER
