System Description

SYSTEM DESCRIPTION

WIRELESS DOOR CONTROL SYSTEM DESCRIPTION

a. This system locks and unlocks the vehicle's doors remotely. The wireless control system has the following features:
- The door control receiver performs the code identification process and the integration relay operates the door lock control. A serial data link is provided for communication between the door control receiver and the integration relay.
- A key-integrated type transmitter is used and it contains the following 3 switches: the door lock switch, door unlock switch and panic switch.

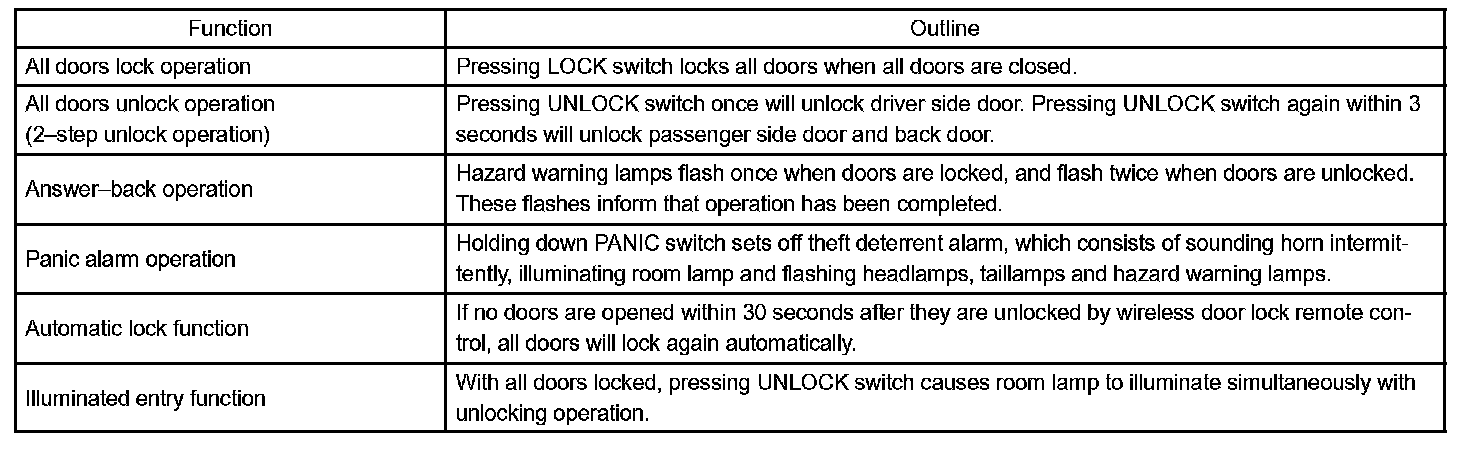

b. The wireless door lock control system functions:
