Inner Rear View Mirror Assembly
REPLACEMENT HINT: The installation procedures are the removal procedures in reverse order.
1.
REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a.

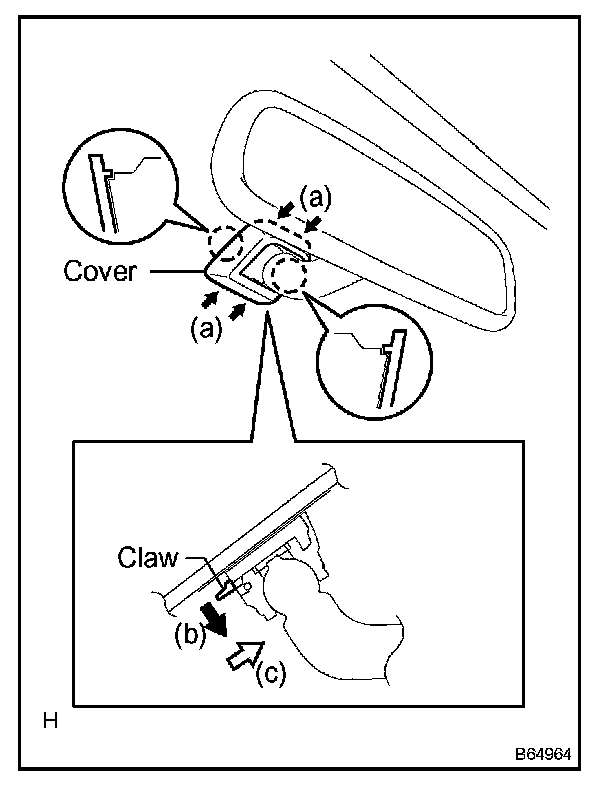

Push the cover in the direction indicated by the arrows labeled a.and remove it.
b.
While holding down the claw in the direction of the black arrow labeled (b), slide the mirror in the direction of the white arrow labeled (c) and remove it.
