Map Light: Testing and Inspection




1. MAP LAMP ASSEMBLY

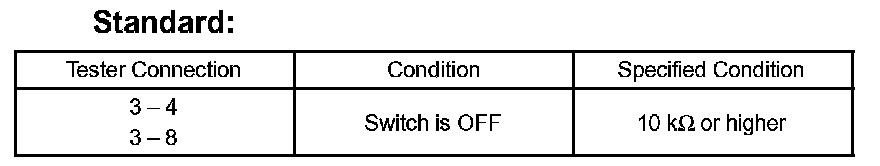

a. Measure the resistance according to the values in the table.
b. Connect the battery positive (+) lead from the battery to terminal 3 and the battery negative (-) lead to terminal 8, then check that the lamp comes on when the switch is in the DOOR position.
OK:
Lamp comes on.

c. Connect the battery positive (+) lead from the battery to terminal 3 and the battery negative (-) lead to terminal 4, then check that the lamp comes on when the switch is in the ON position.
OK:
Lamp comes on.
