Maintenance Indicator Reset

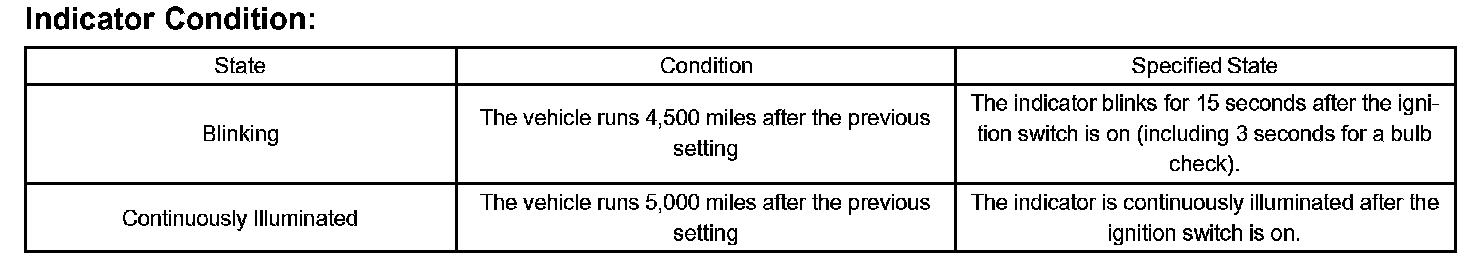

MAINTENANCE LIQUID RESETTING PROCEDURE Indicator Condition:
a. Set the display window to ODO.
b. Turn the ignition switch off.
c. Pressing the reset switch, turn the ignition switch to the ON position (keep pressing for at least 5 seconds.)
d. Reset procedure is completed.

HINT:
- If the ignition switch is turned off during the reset procedure. LCD: off IND: off
- If the reset switch is pressed off during the reset procedure. LCD: return to ODO IND: Keep the previous state of reset
