Fuse: Application and ID

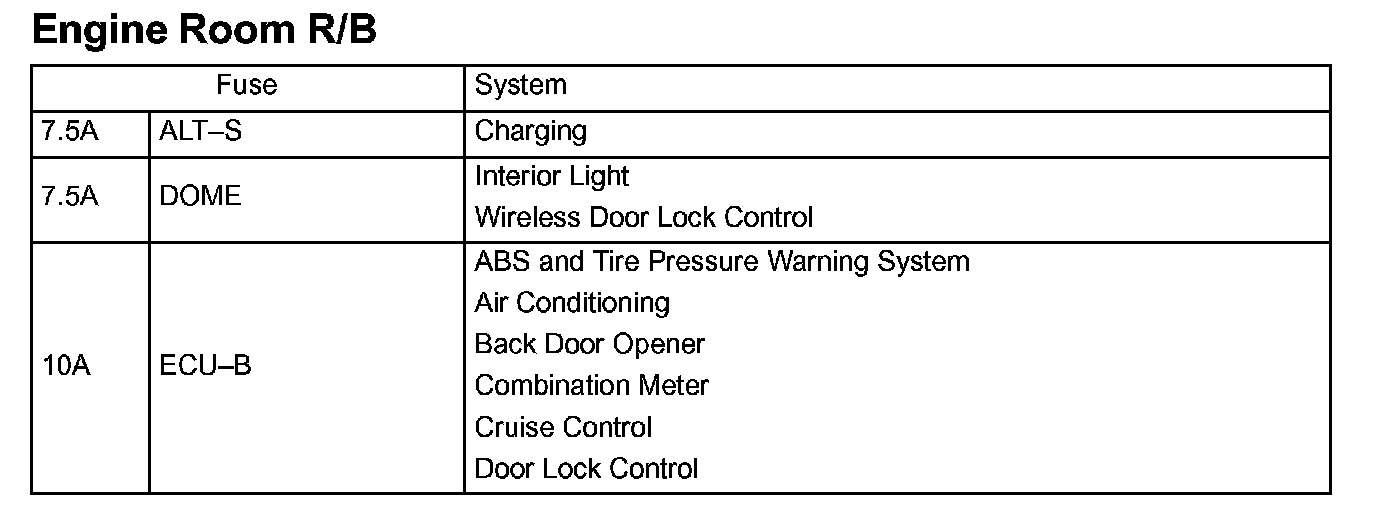

Engine Room R/B Part 1:

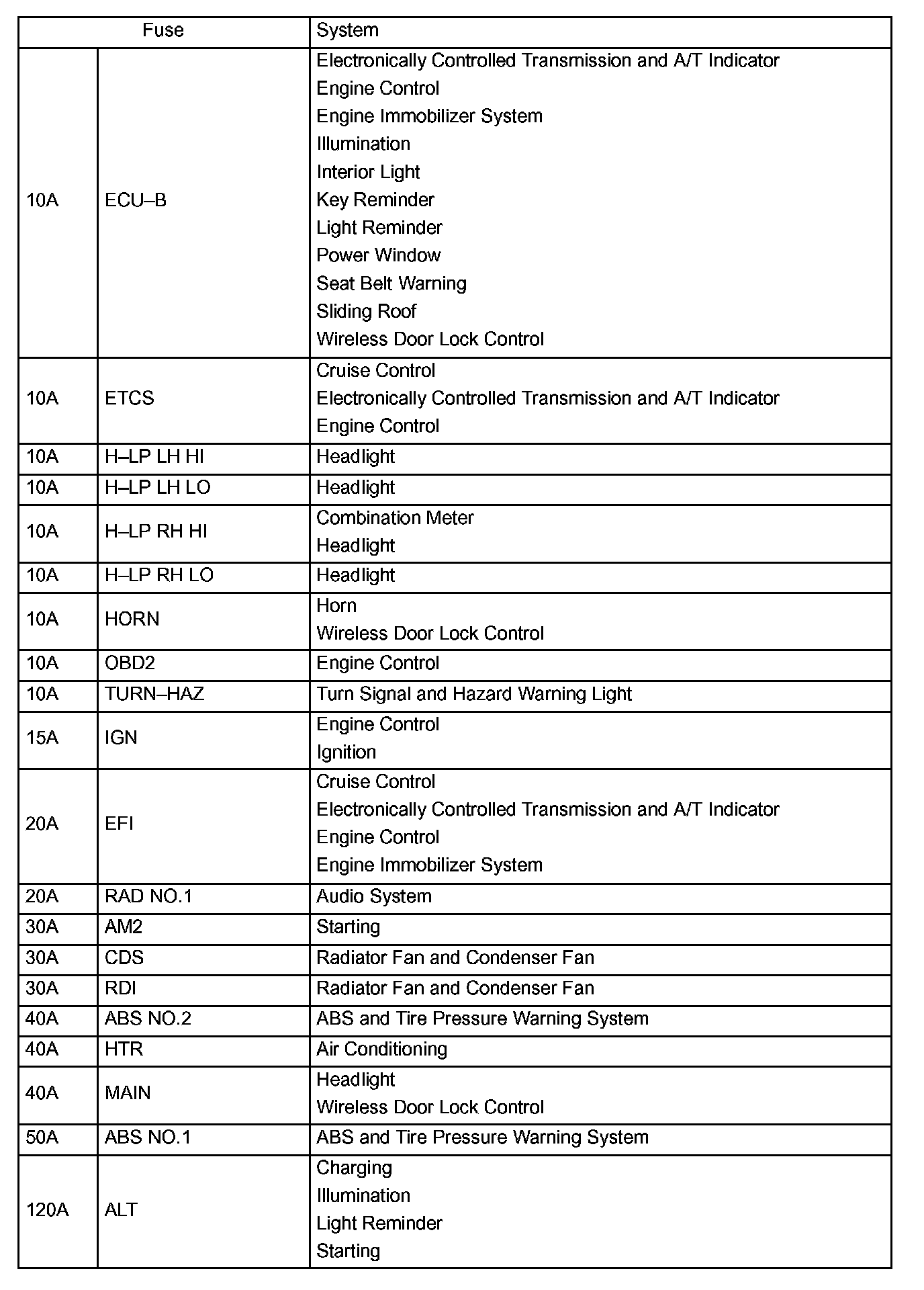

Engine Room R/B Part 2:

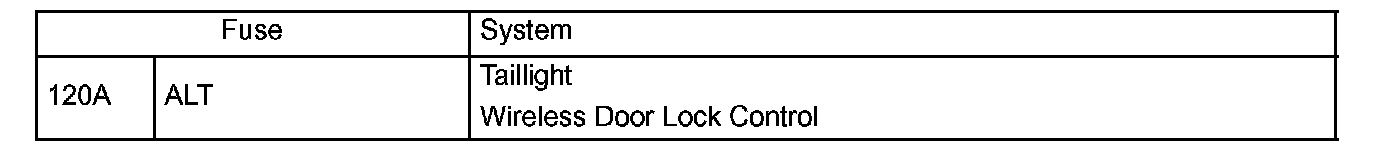

Engine Room R/B Part 3:

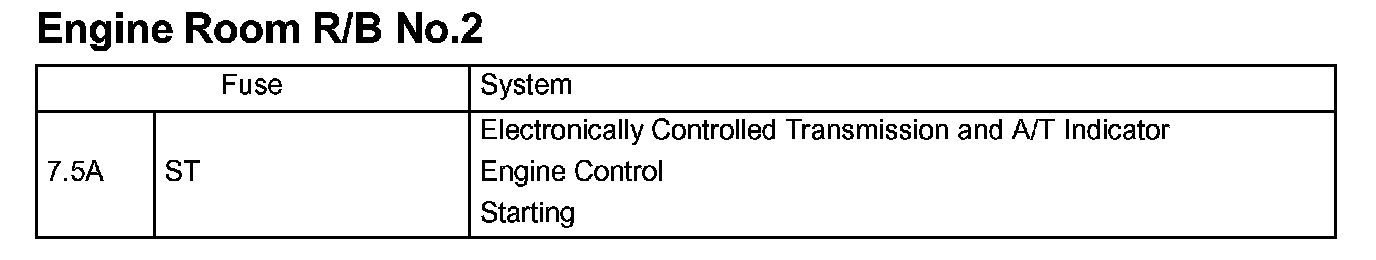

Engine Room R/B No.2:

Engine Room Fuse Details

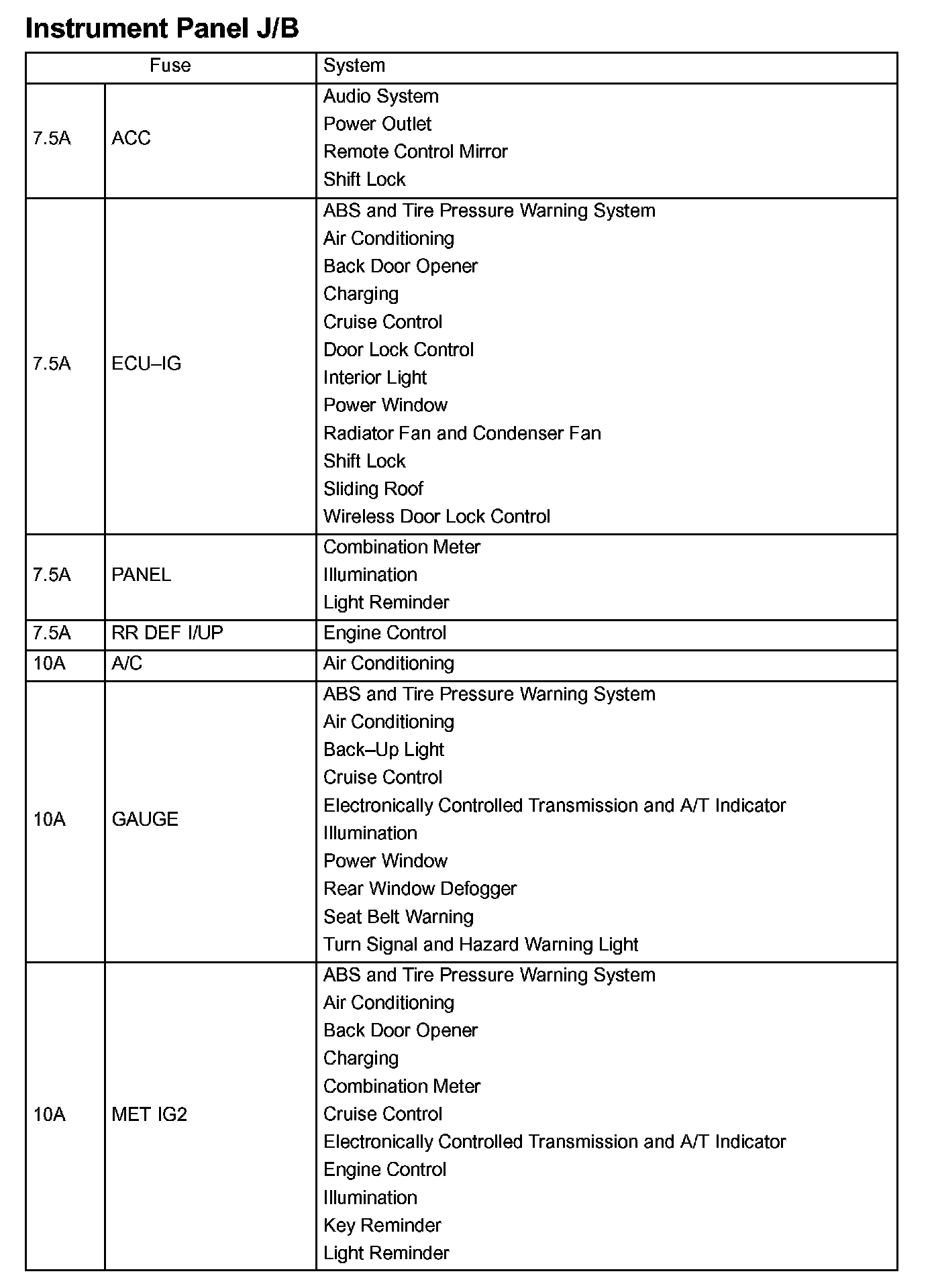

Instrument Panel J/B Part 1:

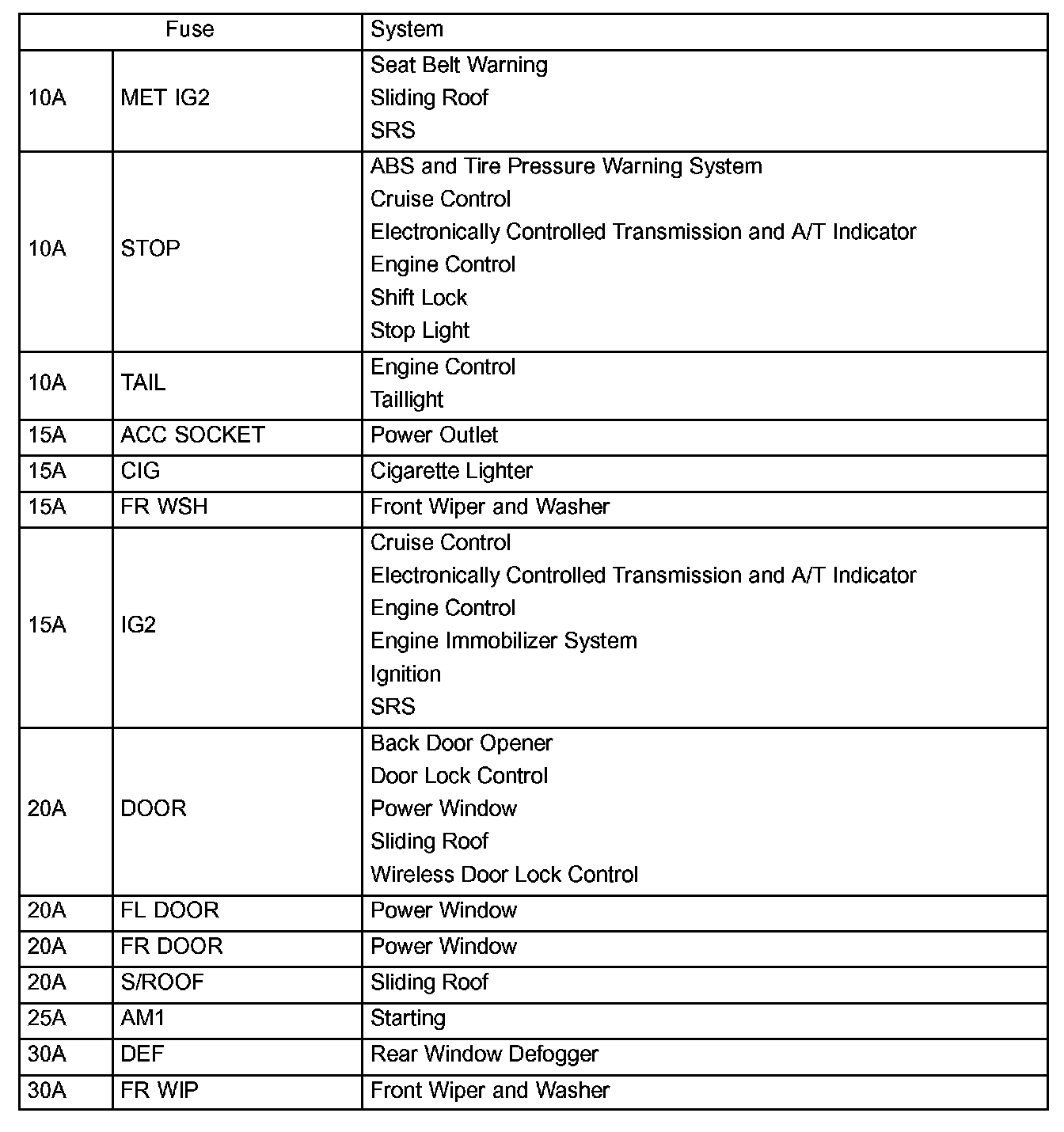

Instrument Panel J/B Part 2:

Interior Panel Fuse Details
