CAMSHAFT POSITION SENSORREPLACEMENT
NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.
- Power window control system
- Sliding roof system
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE ENGINE COVER SUB-ASSEMBLY NO.1
3. REMOVE CAMSHAFT POSITION SENSOR

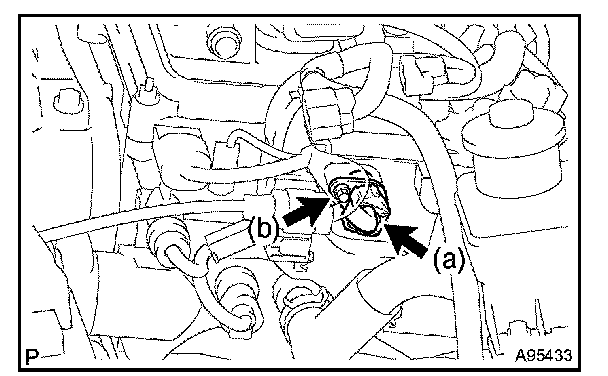

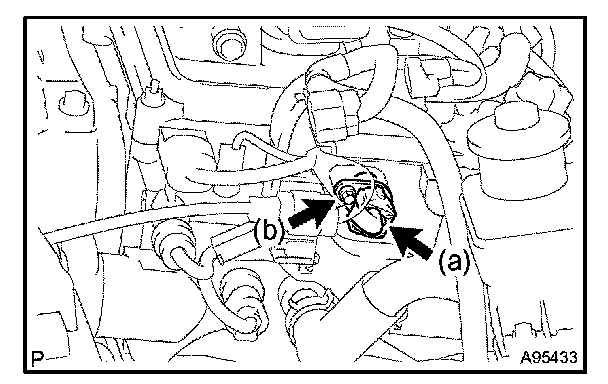

a. Disconnect the camshaft position sensor connector.
b. Remove the bolt, then camshaft position sensor.
4. INSTALL CAMSHAFT POSITION SENSOR

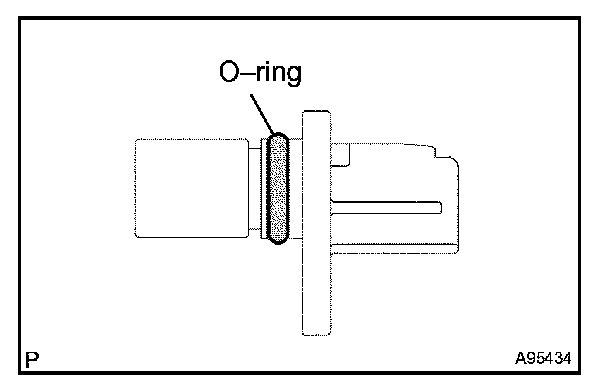

a. Apply a light coat of engine oil to the O-ring of the camshaft position sensor.
b. Install the camshaft position sensor with the bolt.
Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
NOTE: Make sure that the O-ring is not cracked or jammed when installing.
c. Connect the camshaft position sensor connector.
5. CONNECT BATTERY NEGATIVE TERMINAL
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
6. CHECK FOR ENGINE OIL LEAKAGE
7. INSTALL ENGINE COVER SUB-ASSEMBLY NO.1
