Remote Up/Down Function Does Not Operate

REMOTE UP/DOWN FUNCTION DOES NOT OPERATE

CIRCUIT DESCRIPTION
Operating the passenger side power window switch on the power window regulator master switch inputs a remote signal to the power window regulator switch. Then, the power window regulator switch drives the passenger side window motor.

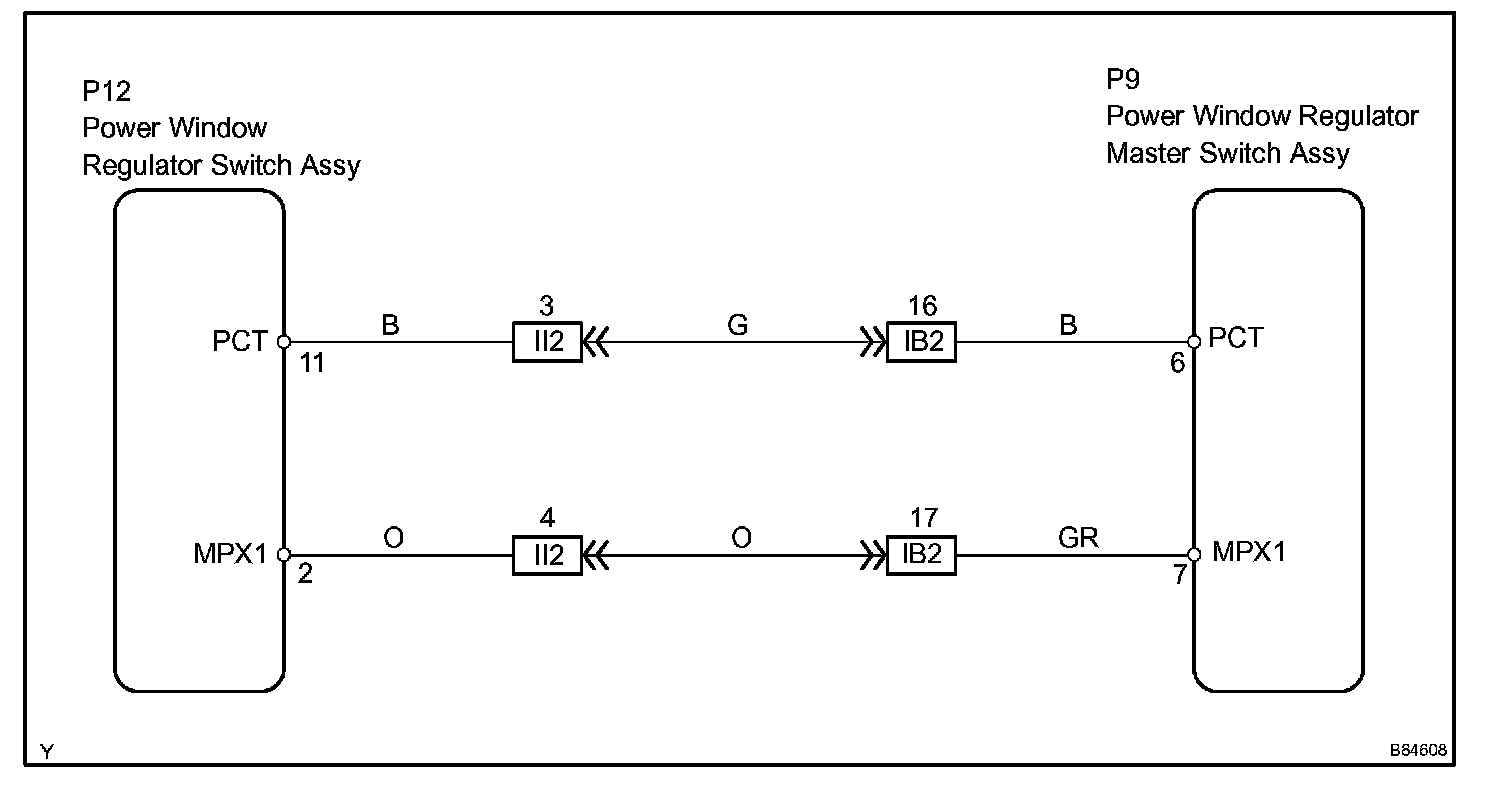

Wiring Diagram:

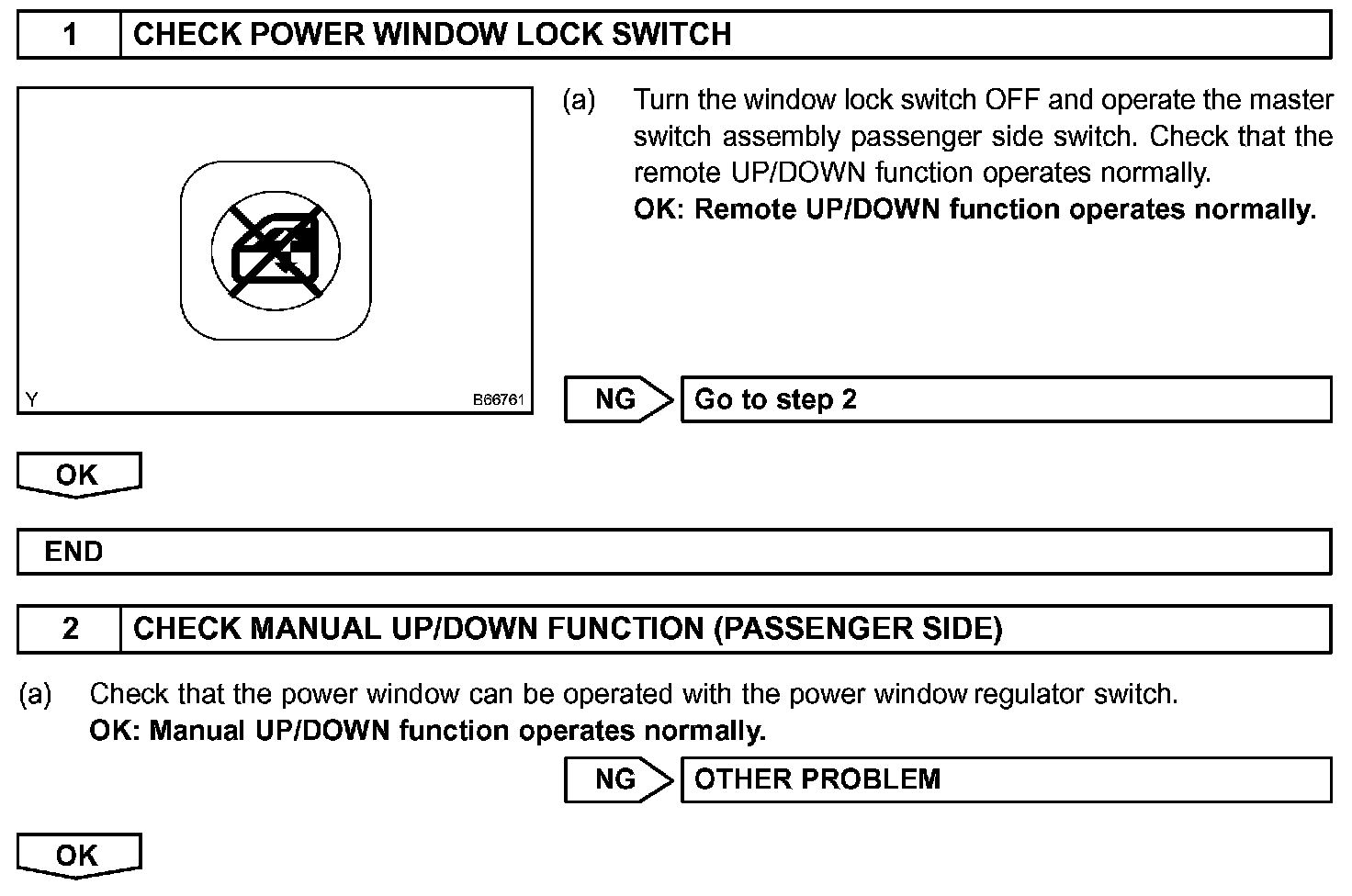

Step 1 - 2:

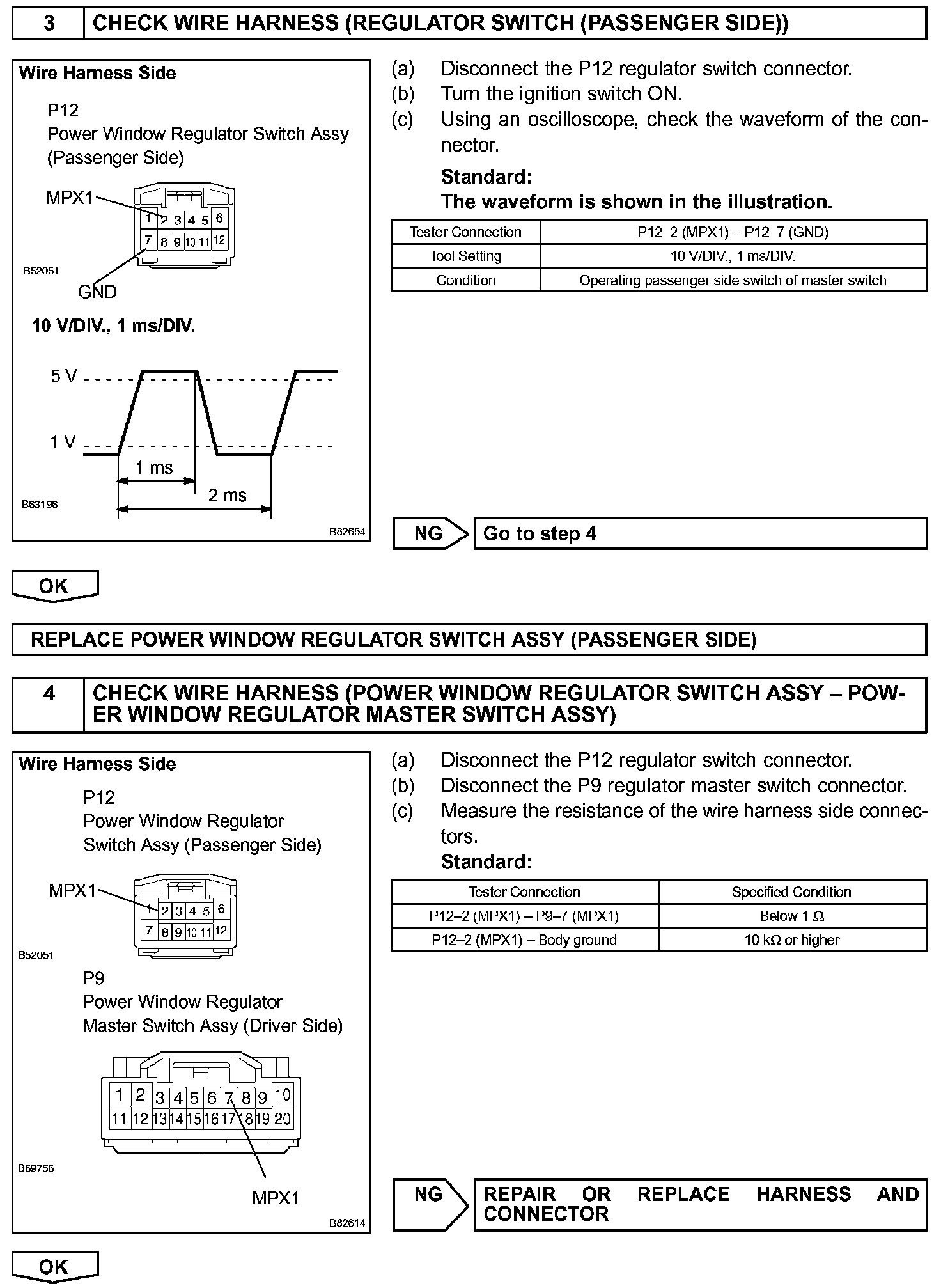

Step 3 - 4:

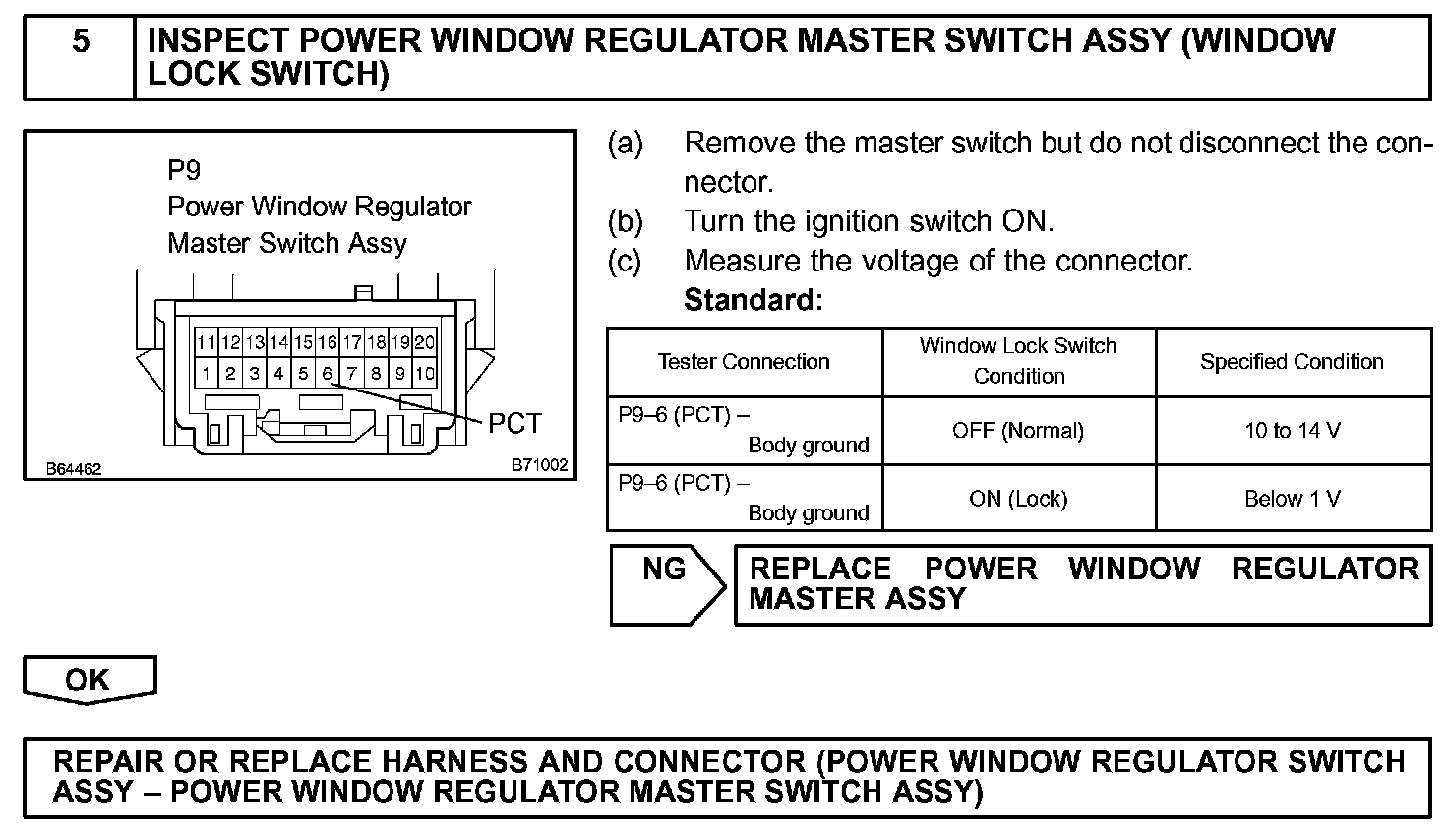

Step 5:




INSPECTION PROCEDURE
