Wiper Switch: Service and Repair
WINDSHIELD WIPER SWITCH ASSEMBLY REPLACEMENT HINT: Installation is in the reverse order of removal.
1.
REMOVE STEERING COLUMN COVER
2.
REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
a.
Disconnect the connector.
b.

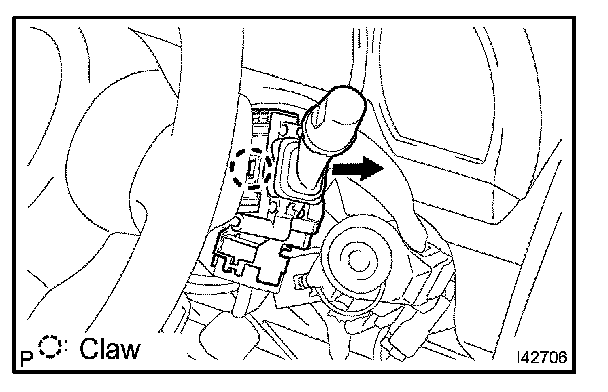

Disengage the claw, and remove the windshield wiper switch assembly.
NOTE: If the claw is pushed with excessive force, it may be broken.
