Rear Wheel Alignment

REAR WHEEL ALIGNMENT
INSPECTION
1. INSPECT TIRE
2. MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting wheel alignment, adjust the vehicle height to the specified value.

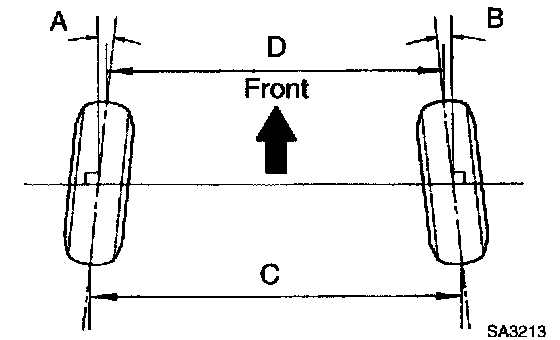

3. INSPECT TOE-IN





Toe-in

If the toe-in is not within the specified value, inspect the suspension parts and replace them if necessary.
4. INSPECT CAMBER
a. Install the camber-caster-kingpin gauge or position the vehicle on a wheel alignment tester.
b. Inspect the camber.





Camber

If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear, and replace them if necessary because the camber is not adjustable.
