Check CAN Bus Line (CAN-L) For Short to GND

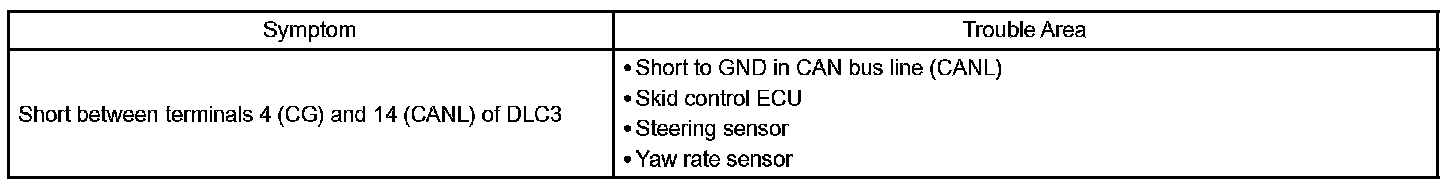

CHECK CAN BUS LINE (CANL) FOR SHORT TO GNDCIRCUIT DESCRIPTIONA short to GND may be occurring in the CAN bus line when there is a short between terminals 4 (CG) and 14 (CANL) of the
DLC3.

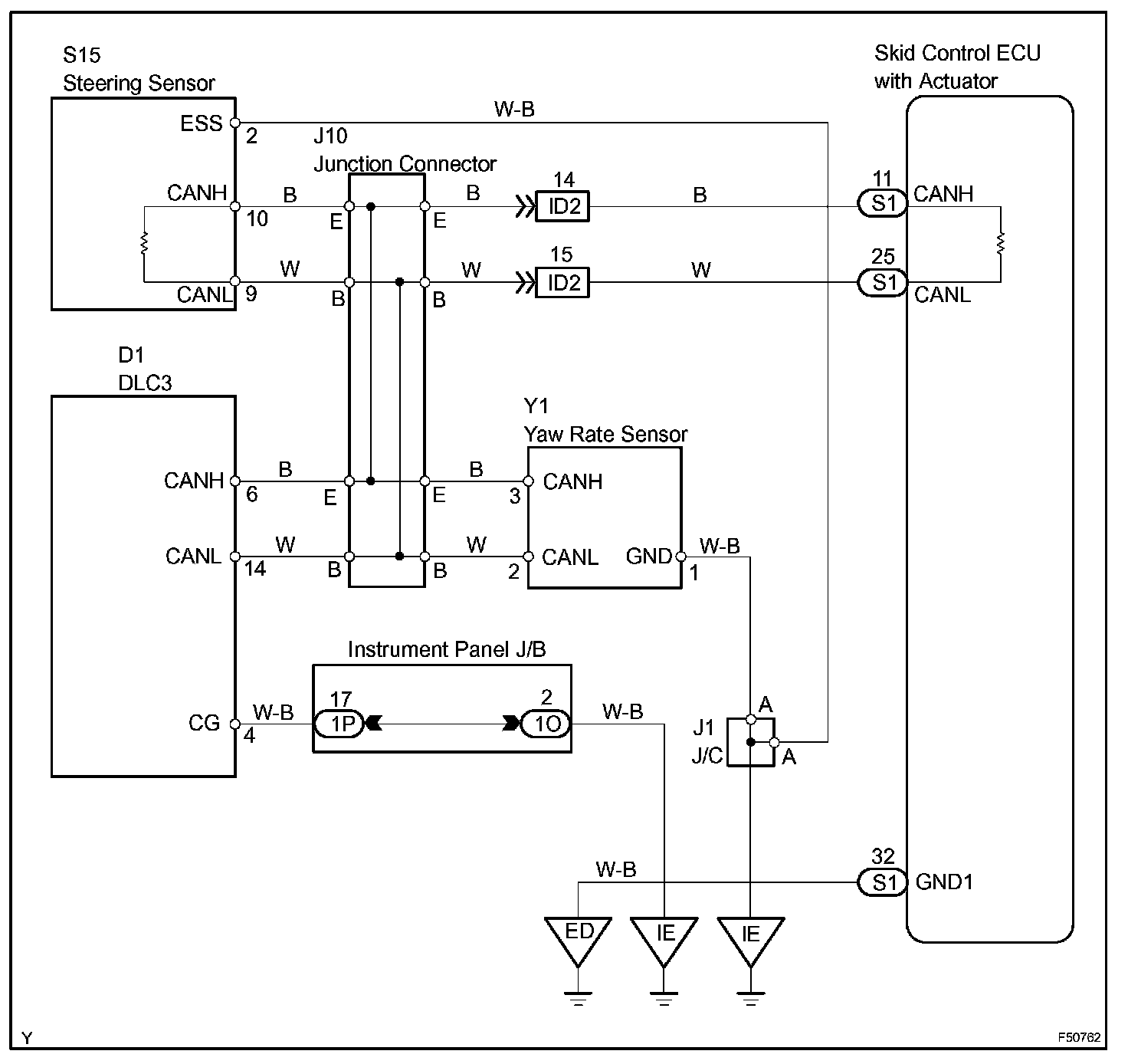

Wiring Diagram:

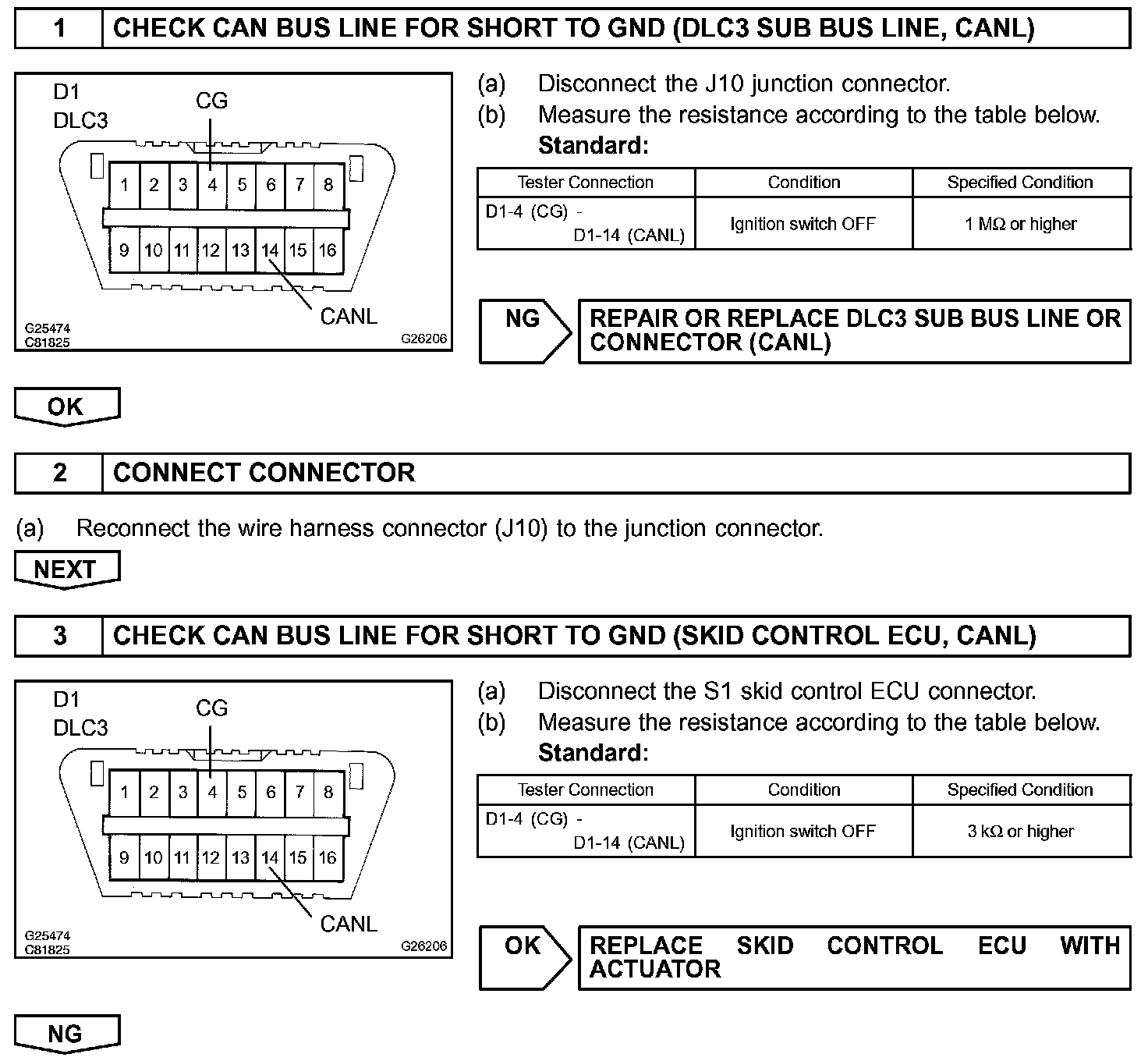

Step 1-3:

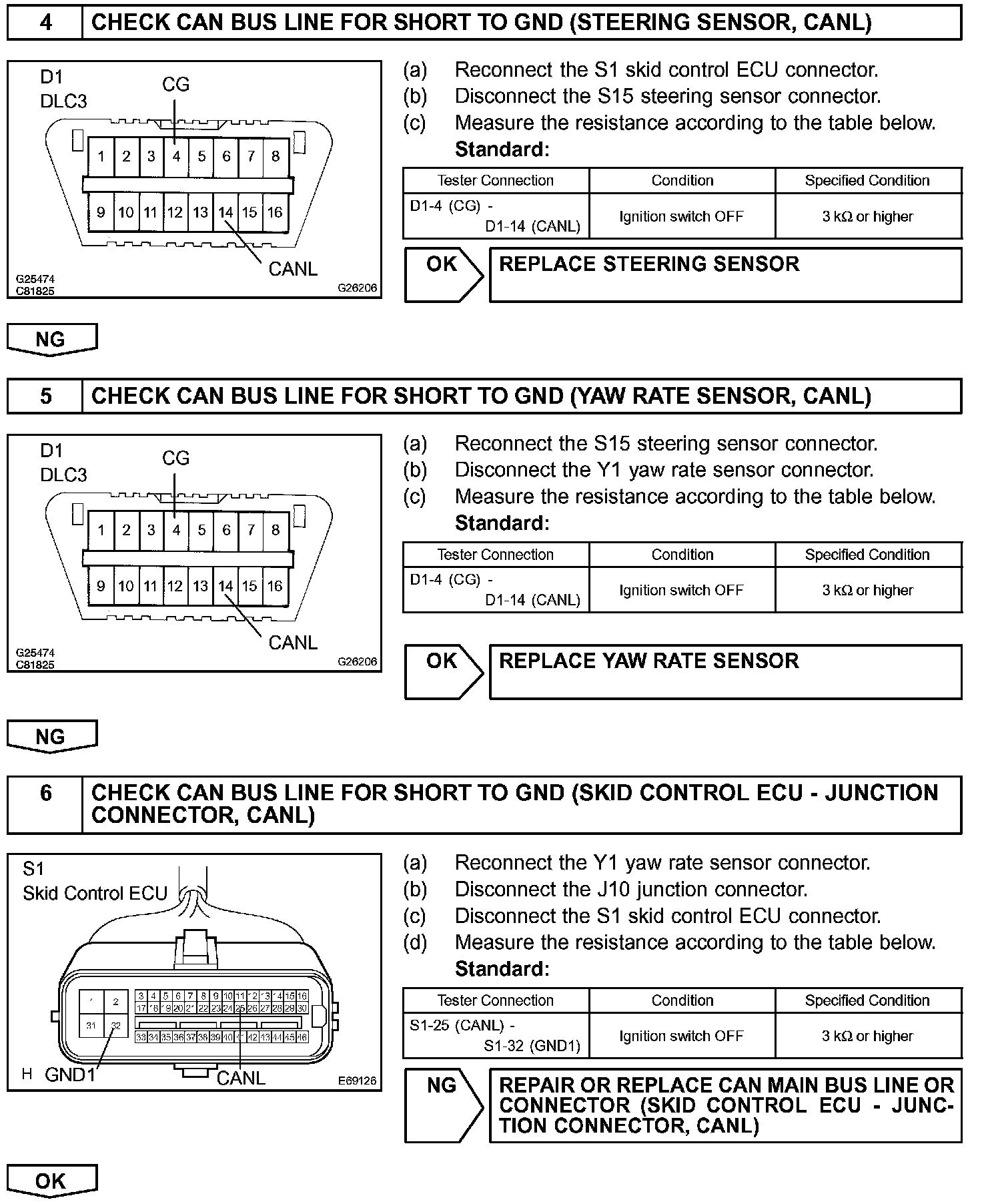

Step 4-6:

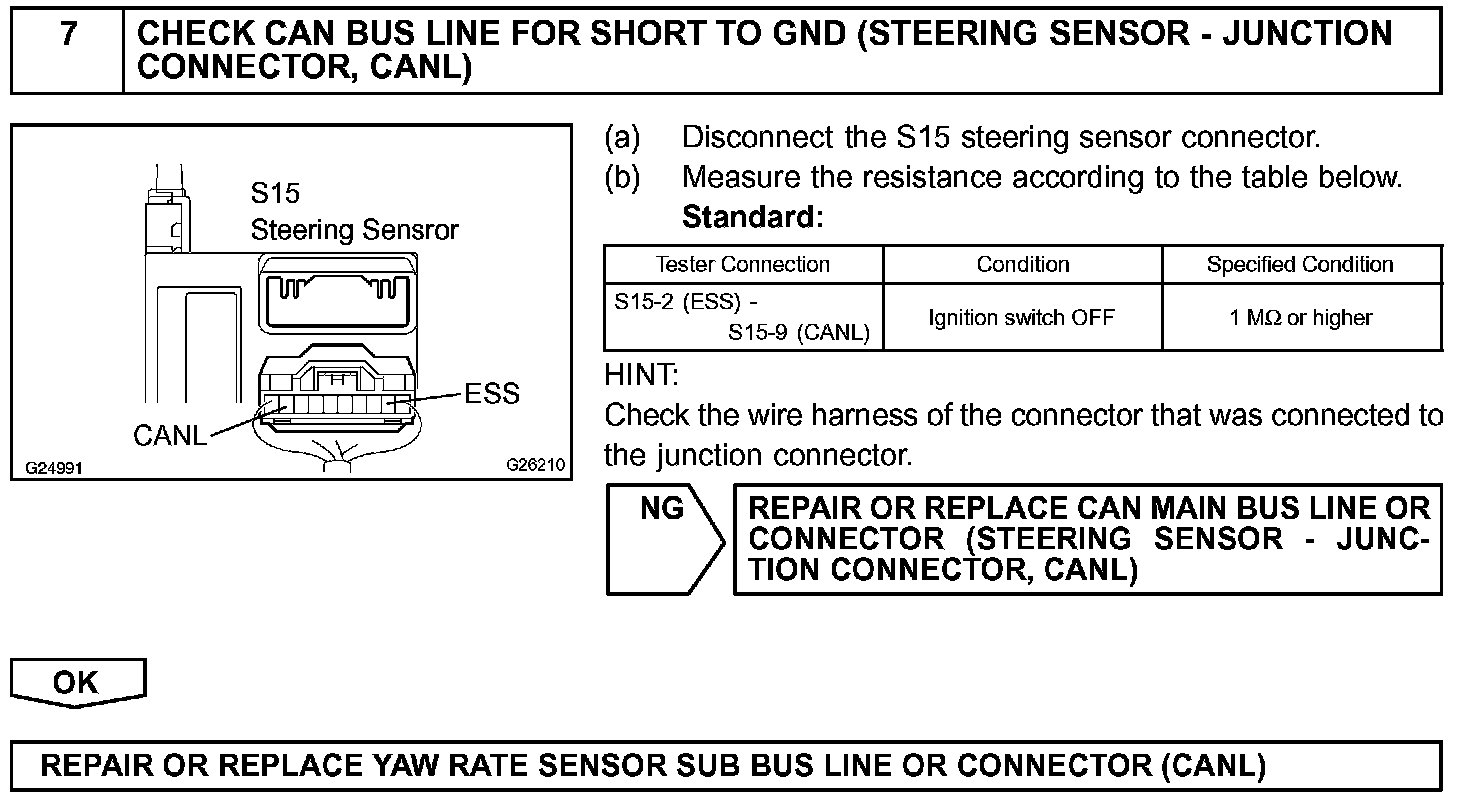

Step 7:
INSPECTION PROCEDURE
