Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

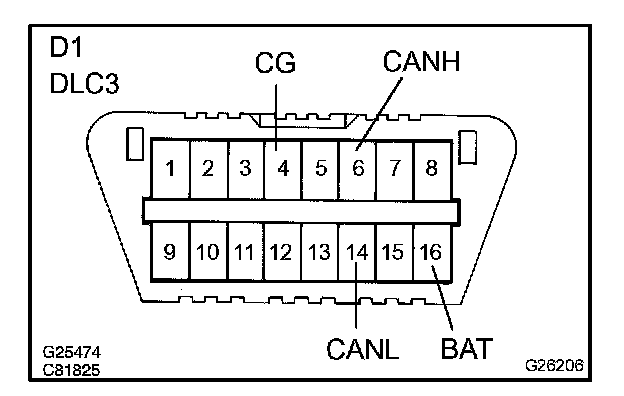

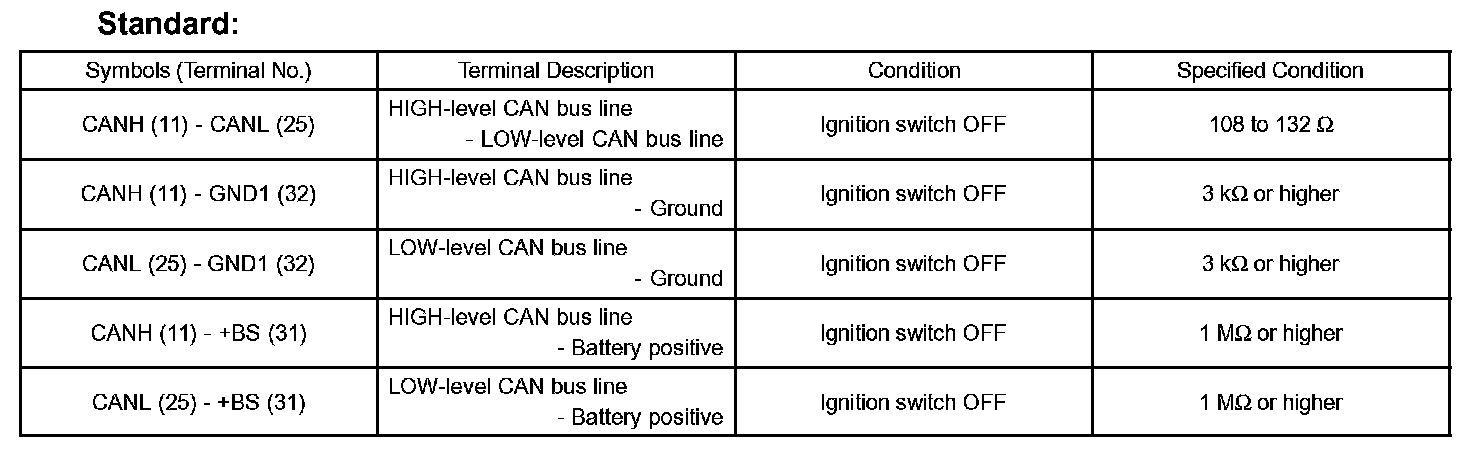

1. CHECK DLC3







a. Check the DLC3.
1. Measure the resistance according to the table given.

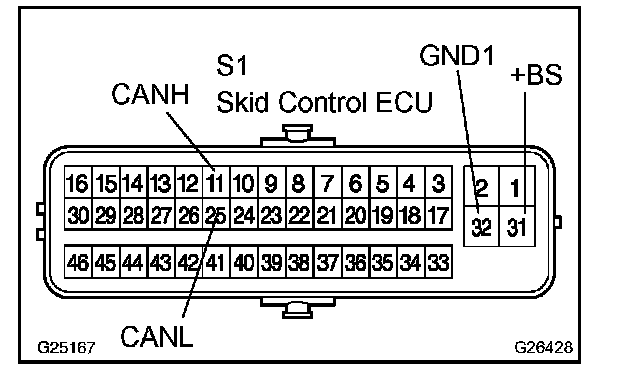

2. CHECK SKID CONTROL ECU







a. Check the skid control ECU.
1. Disconnect the S1 skid control ECU connector.
2. Measure the resistance according to the table given.

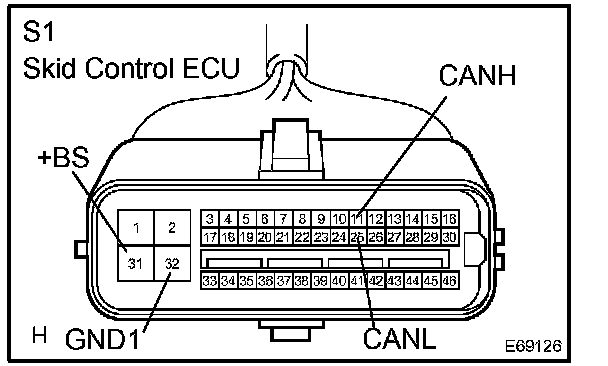

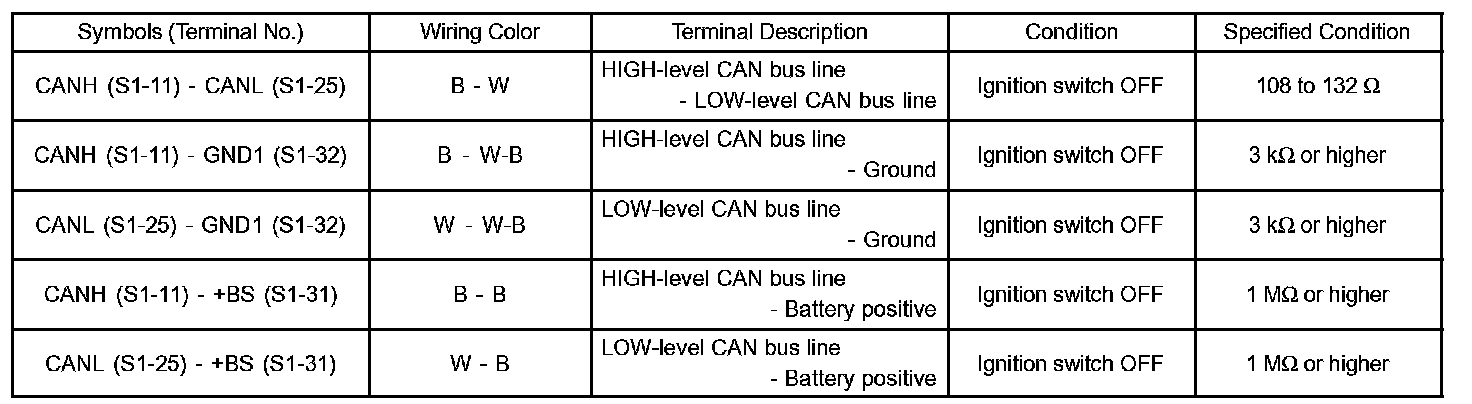

b. Check the wire harness of the skid control ECU.
1. Disconnect the S1 skid control ECU connector.
2. Measure the resistance according to the table given.

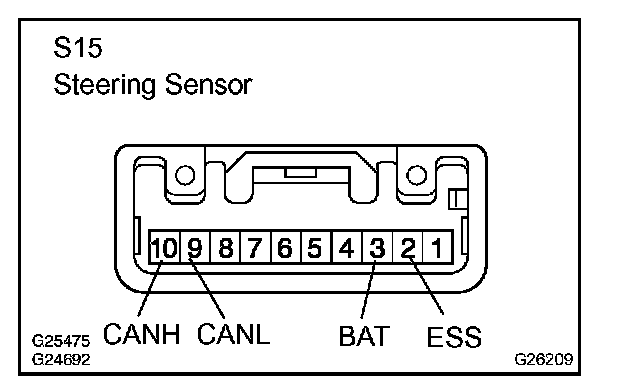

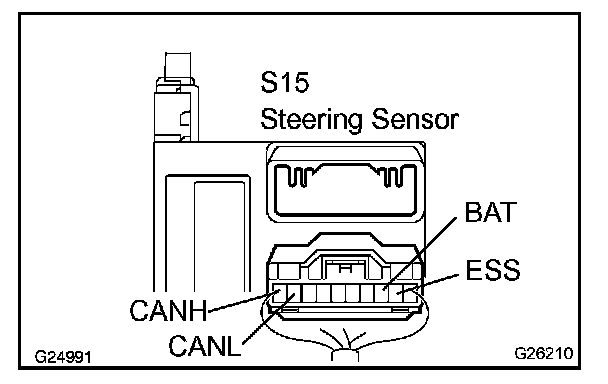

3. CHECK STEERING SENSOR







a. Check the steering sensor.
1. Disconnect theS15 steering sensor connector.

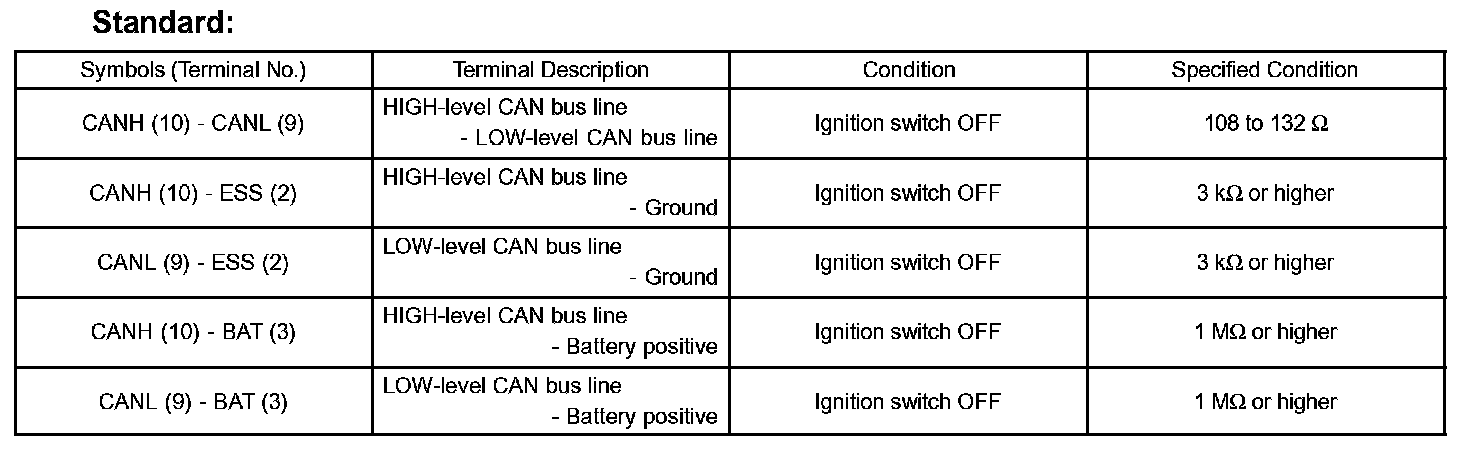

2. Measure the resistance according to the table given.







b. Check the wire harness of the steering sensor.
1. Disconnect the S15 steering sensor connector.

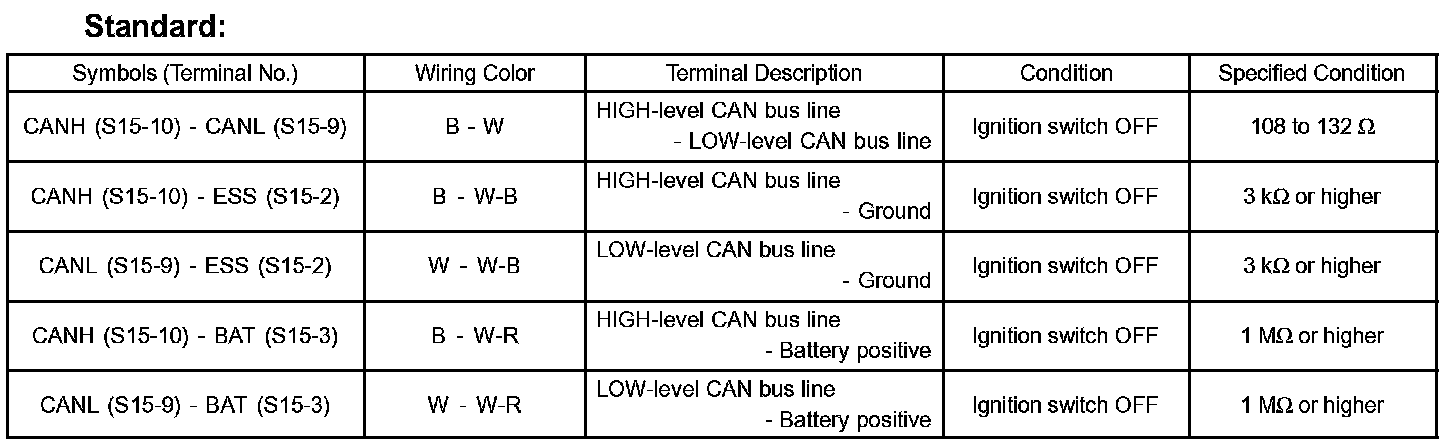

2. Measure the resistance according to the table given.

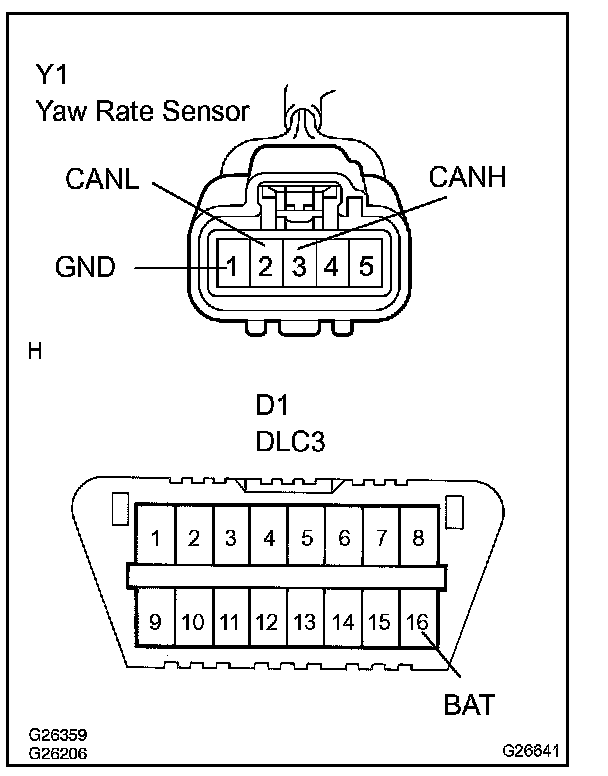

4. CHECK YAW RATE SENSOR







a. Check the wire harness of the yaw rate sensor.
1. Disconnect the Y1 yaw rate sensor connector.

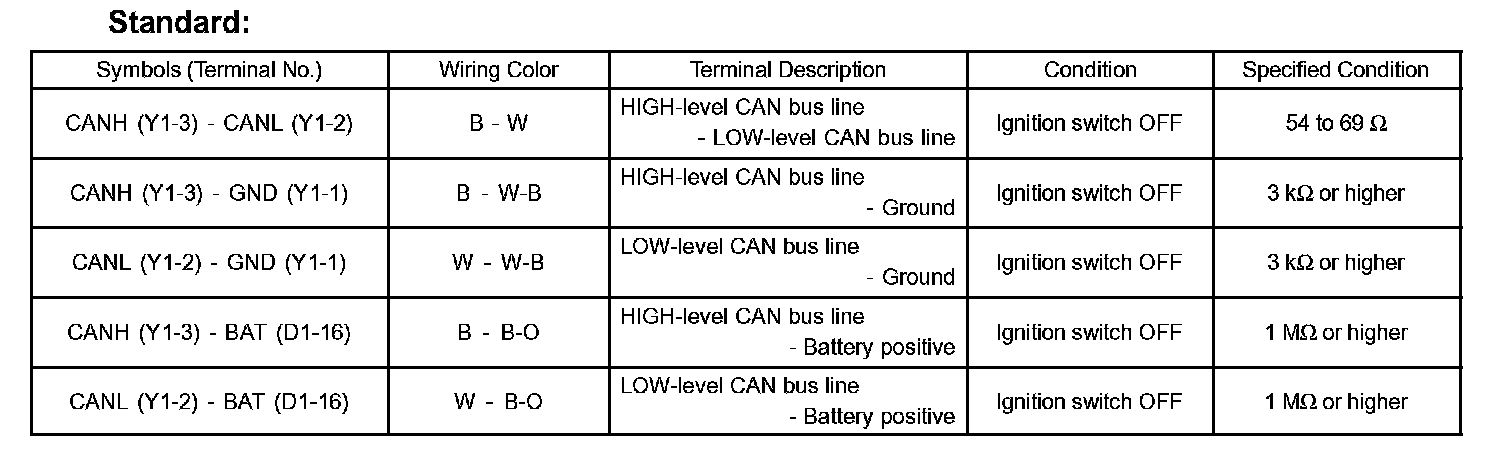

2. Measure the resistance according to the table given.

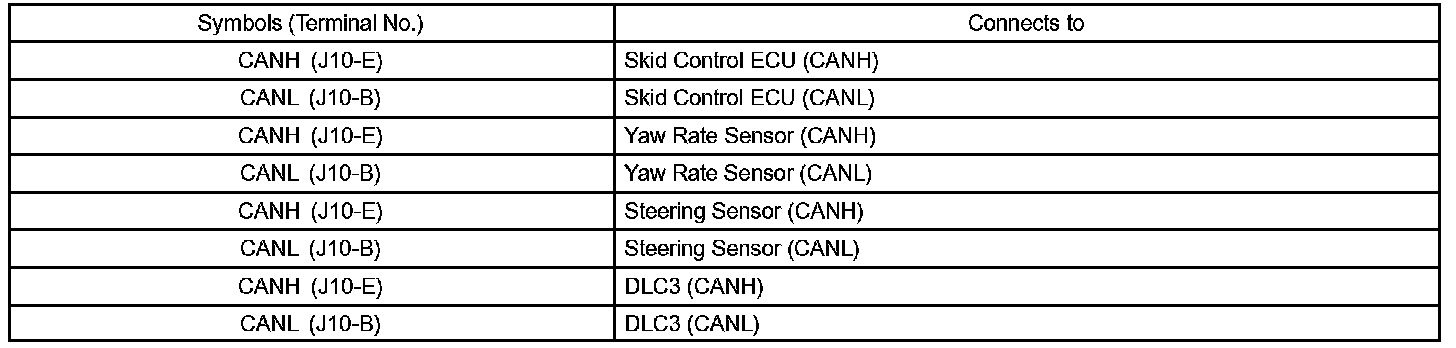

5. CHECK J10 JUNCTION CONNECTOR
a. Check the terminal arrangement and connection
