Power Window Control System (w/ Jam Protection Function)

ON-VEHICLE INSPECTION




1. CHECK WINDOW LOCK SWITCH
a. Check that operation of the power windows except the driver side power window is disabled when the window lock switch of the power window master switch is pressed.
b. Check that the power windows can operate when the window lock switch is pressed again.

2. CHECK MANUAL UP/DOWN FUNCTION

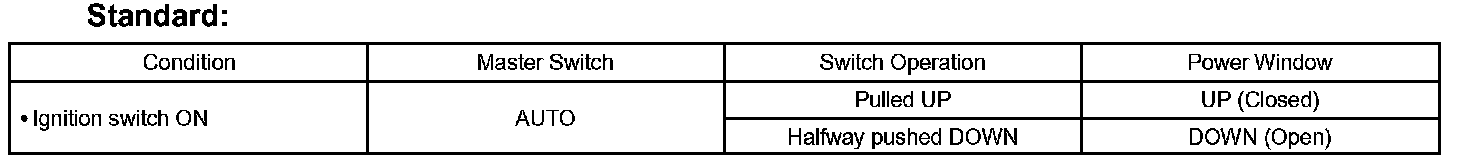

a. Check that the AUTO switch of the master switch can operate the driver side power window as shown.

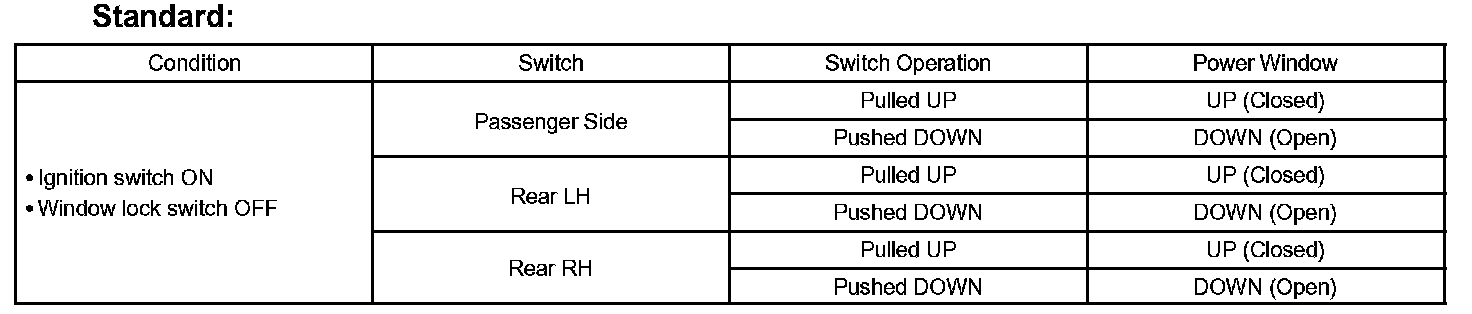

b. Check that each regulator switch can operate each power window as shown.

3. CHECK AUTO DOWN FUNCTION

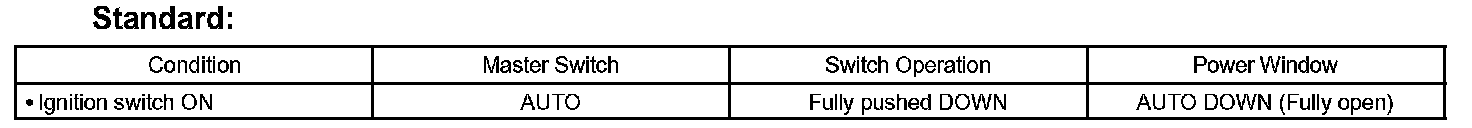

a. Check that the AUTO switch of the master switch can operate the driver side power window as shown.

4. CHECK REMOTE UP/DOWN FUNCTION

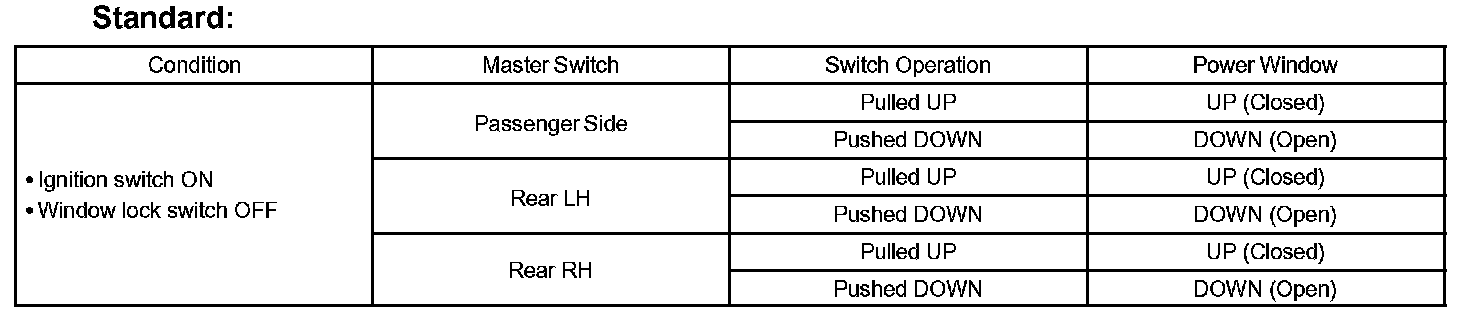

a. Check that the power window master switch can operate the power windows besides the driver side power window as shown.
