Keyless Entry Receiver: Testing and Inspection

CHECK DOOR CONTROL RECEIVER
a. Disconnect the receiver connector.

Standard:

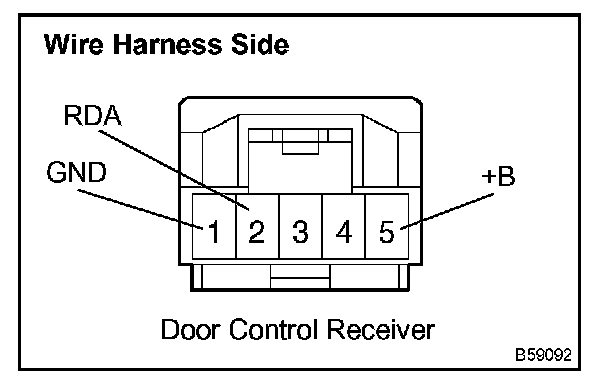

b. Check the voltage and resistance between the terminals of the wire harness side connector of the receiver and body ground.
If the result is not as specified, there may be a malfunction on the wire harness side.

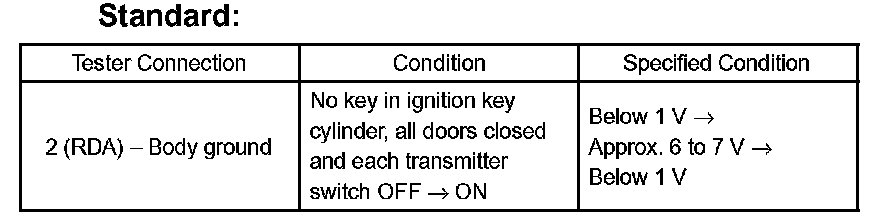

Standard:

c. Reconnect the connector and check the voltage between the terminal and body ground.
If the result is not as specified, the receiver may have a malfunction.
