Rear Wheel Alignment
REAR WHEEL ALIGNMENTINSPECTION
1. INSPECT TIRE
2. MEASURE VEHICLE HEIGHT
NOTICE: Before inspecting wheel alignment, adjust vehicle height to the specified value.

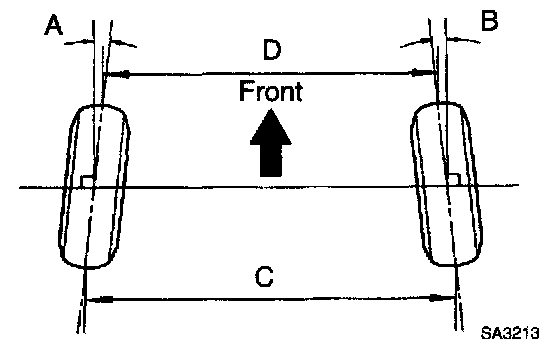

3. INSPECT TOE-IN
Toe-in
If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
4. INSPECT CAMBER
a. Install the camber-caster-kingpin gage or position the vehicle on the wheel alignment tester.
b. Inspect the camber.
Camber
If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them as necessary because the camber is not adjustable.
