Camshaft Position Sensor: Service and Repair

REPLACEMENT

1. REMOVE AIR CLEANER ASSEMBLY

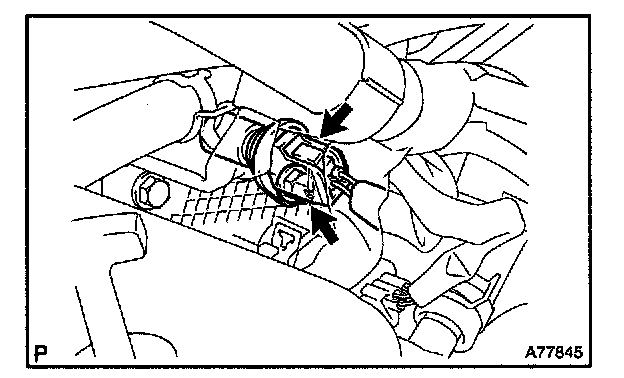

2. REMOVE CAMSHAFT POSITION SENSOR

a. Disconnect the camshaft position sensor connector.
b. Remove the bolt and camshaft position sensor.

3. INSTALL CAMSHAFT POSITION SENSOR
a. Apply a light coat of engine oil to the O-ring on the camshaft position sensor.
b. Install the camshaft position sensor with the bolt.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

c. Connect the camshaft position sensor connector.

4. INSTALL AIR CLEANER ASSEMBLY
