Check CAN Bus Line (CAN-L) For Short to B+

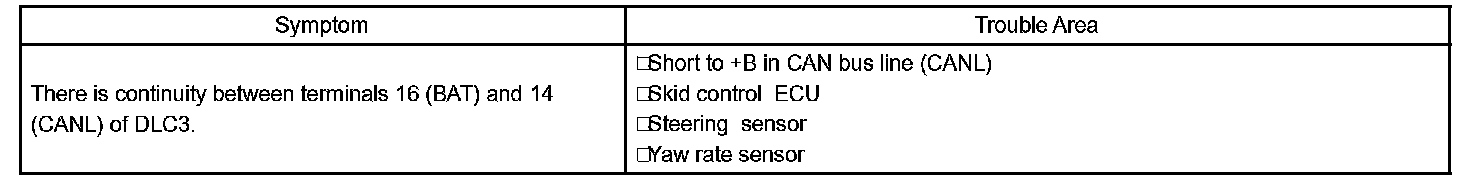

CHECK CAN BUS LINE (CAN-L) FOR SHORT TO +B CIRCUIT DESCRIPTION A short to +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 14 (CANL) of the
DLC3.

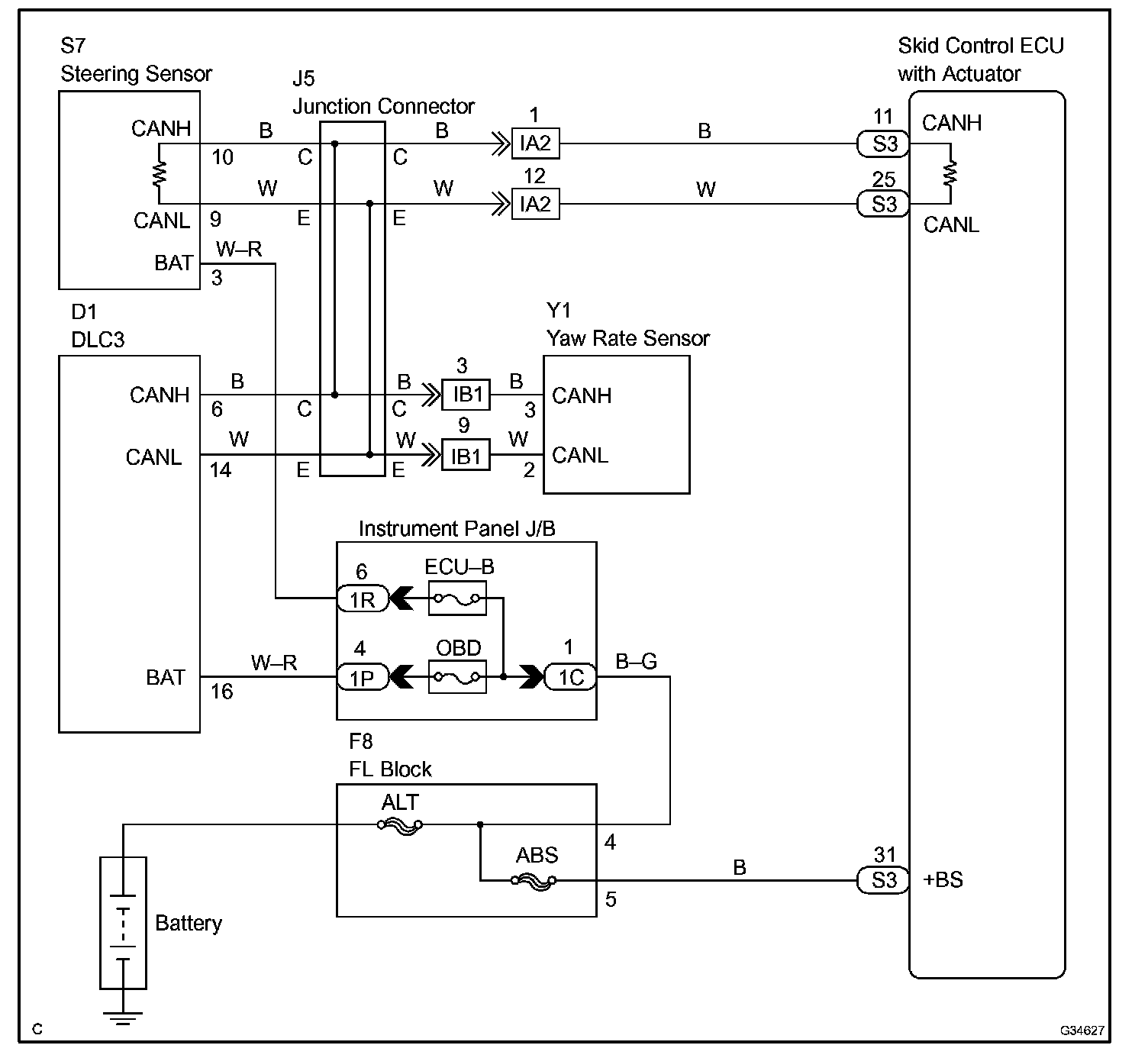

Wiring Diagram:
Step 1 - 3:

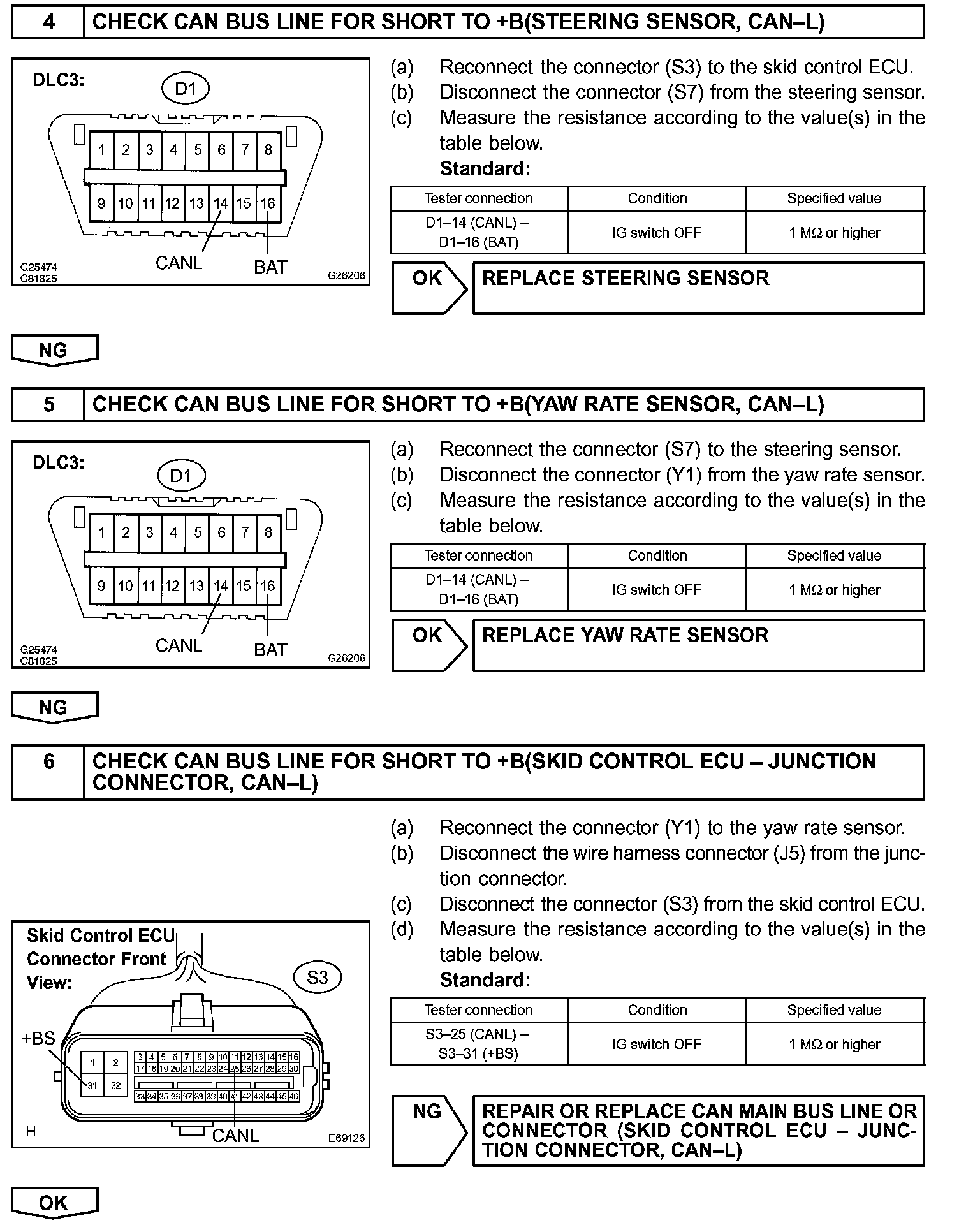

Step 4 - 6:

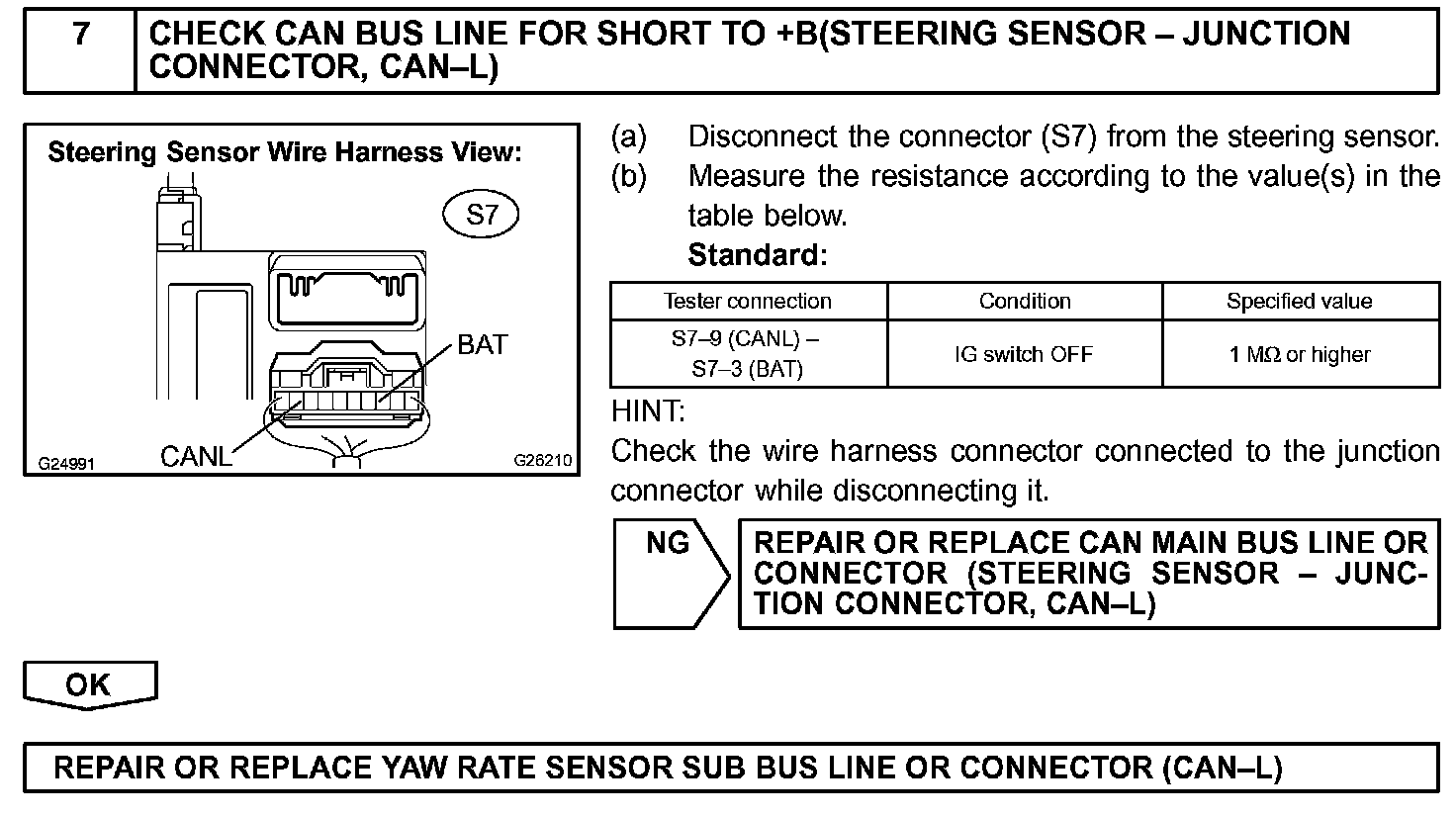

Step 7:
INSPECTION PROCEDURE
