Monitors, Trips, Drive Cycles and Readiness Codes

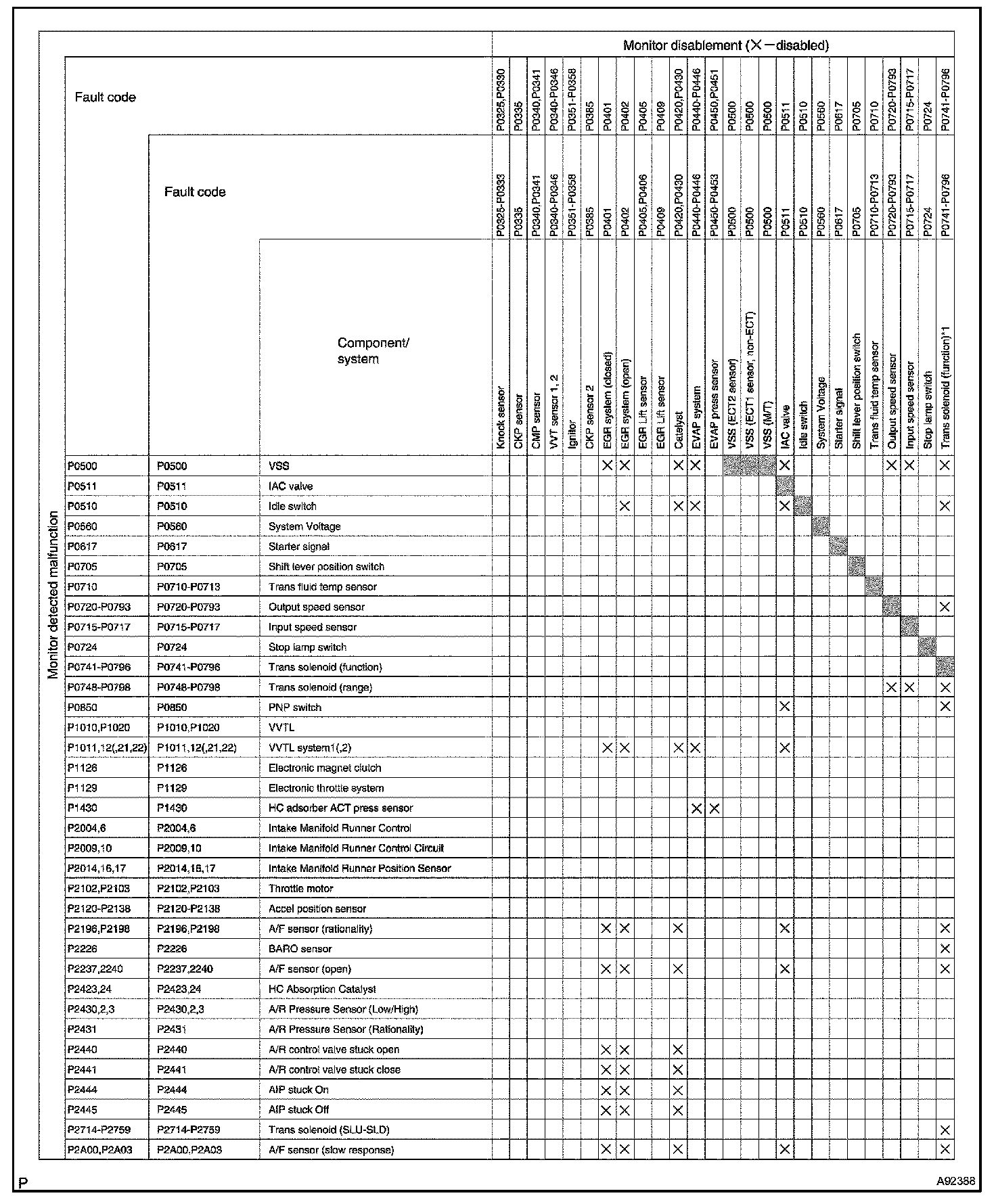

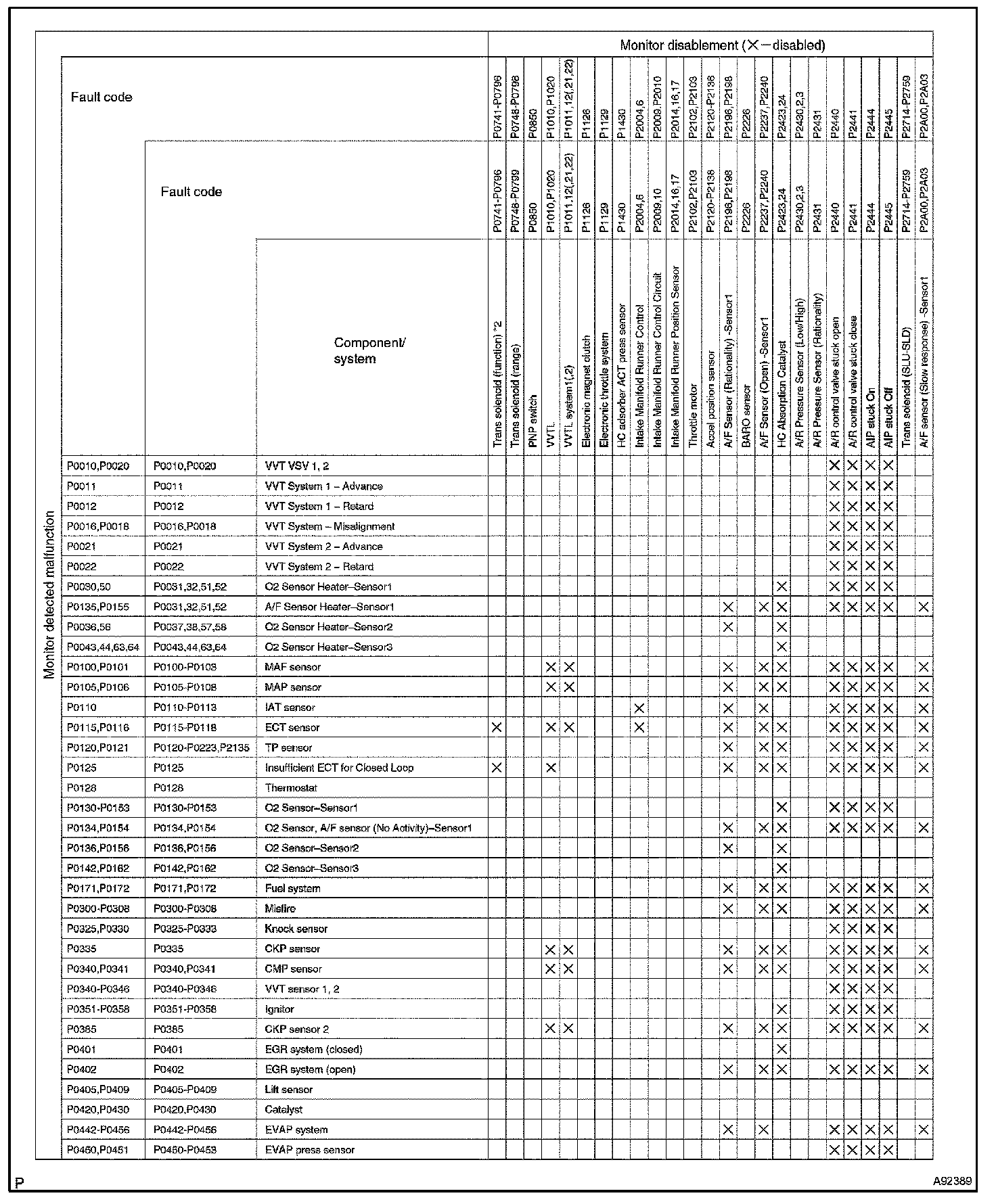

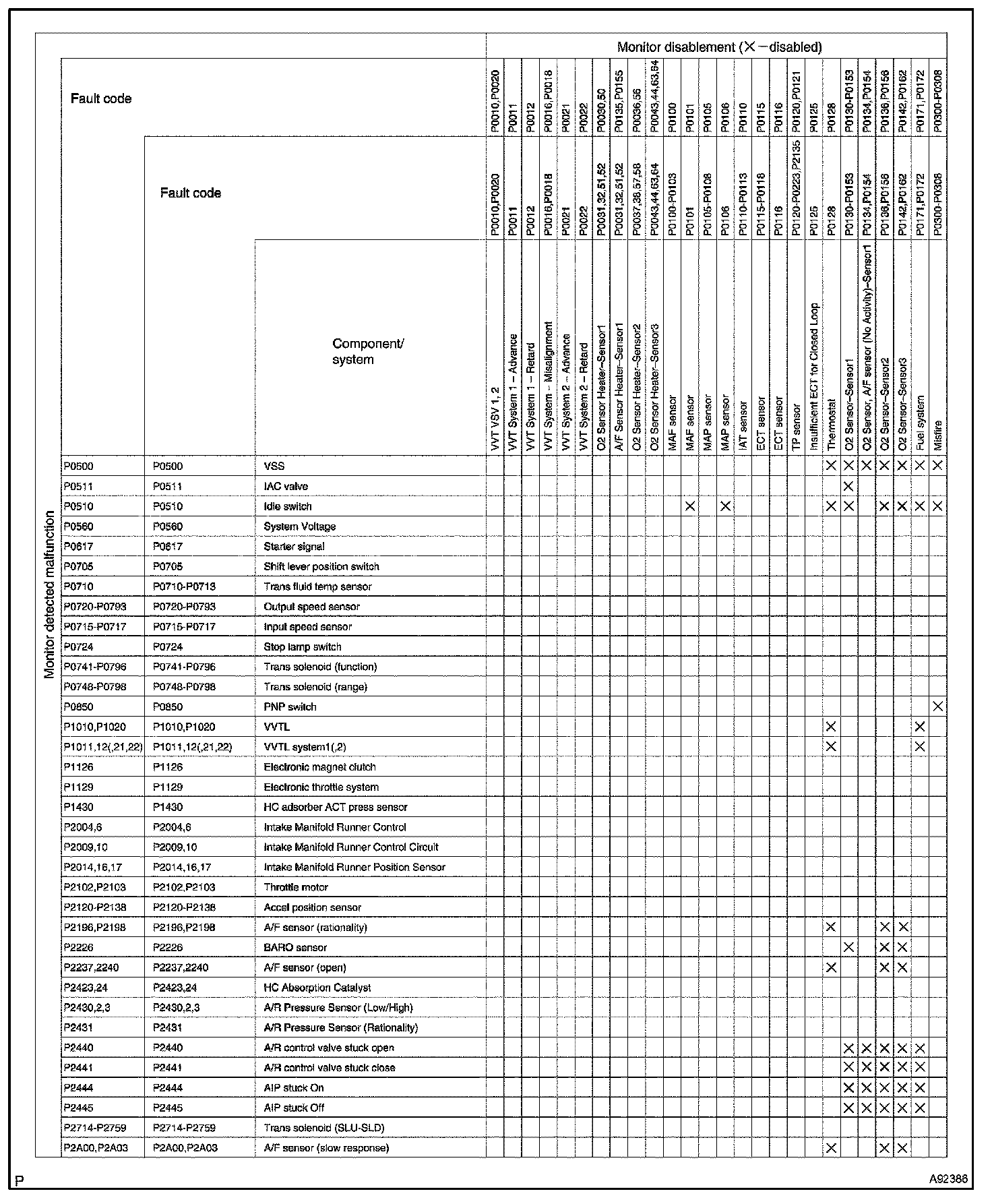

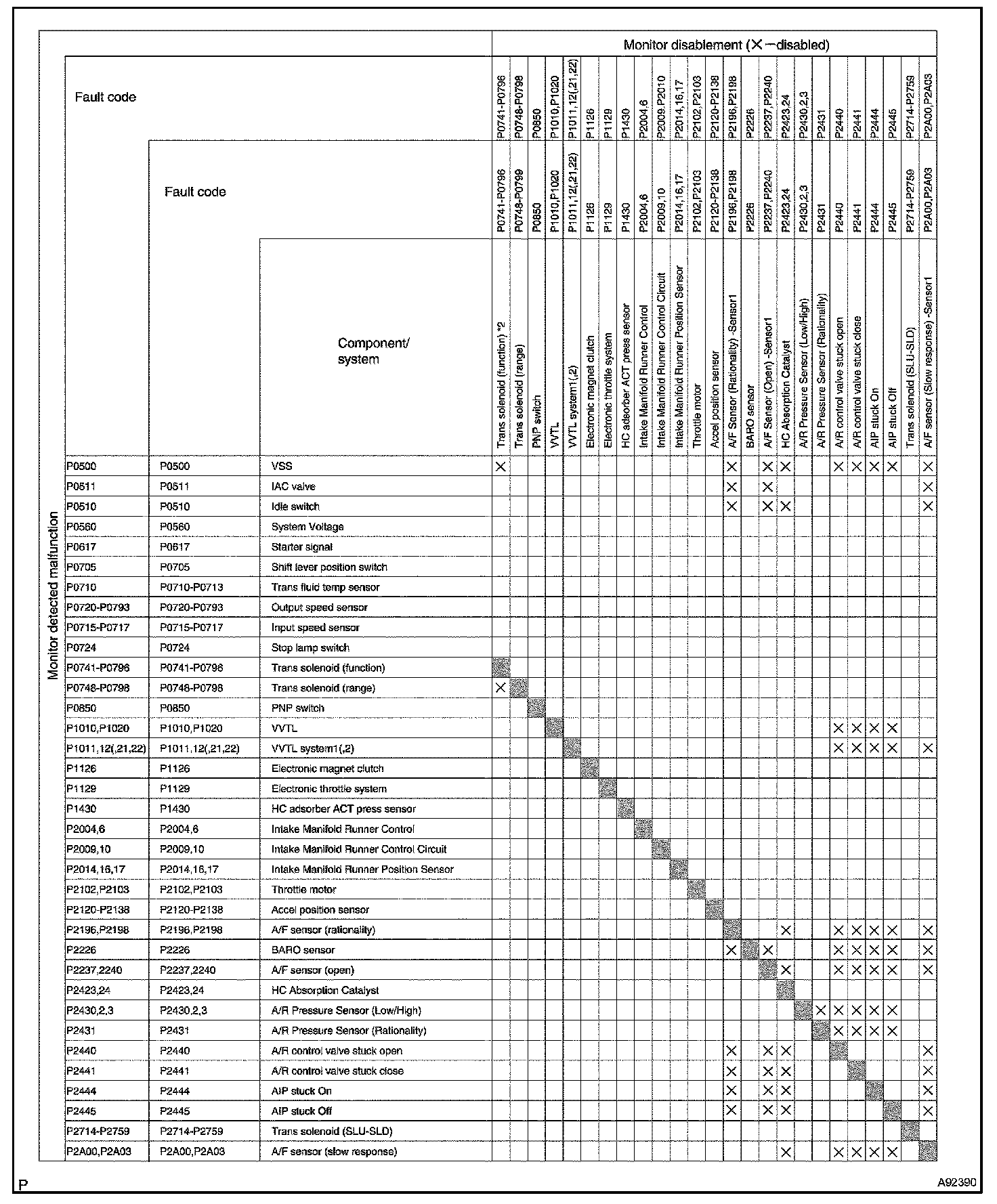

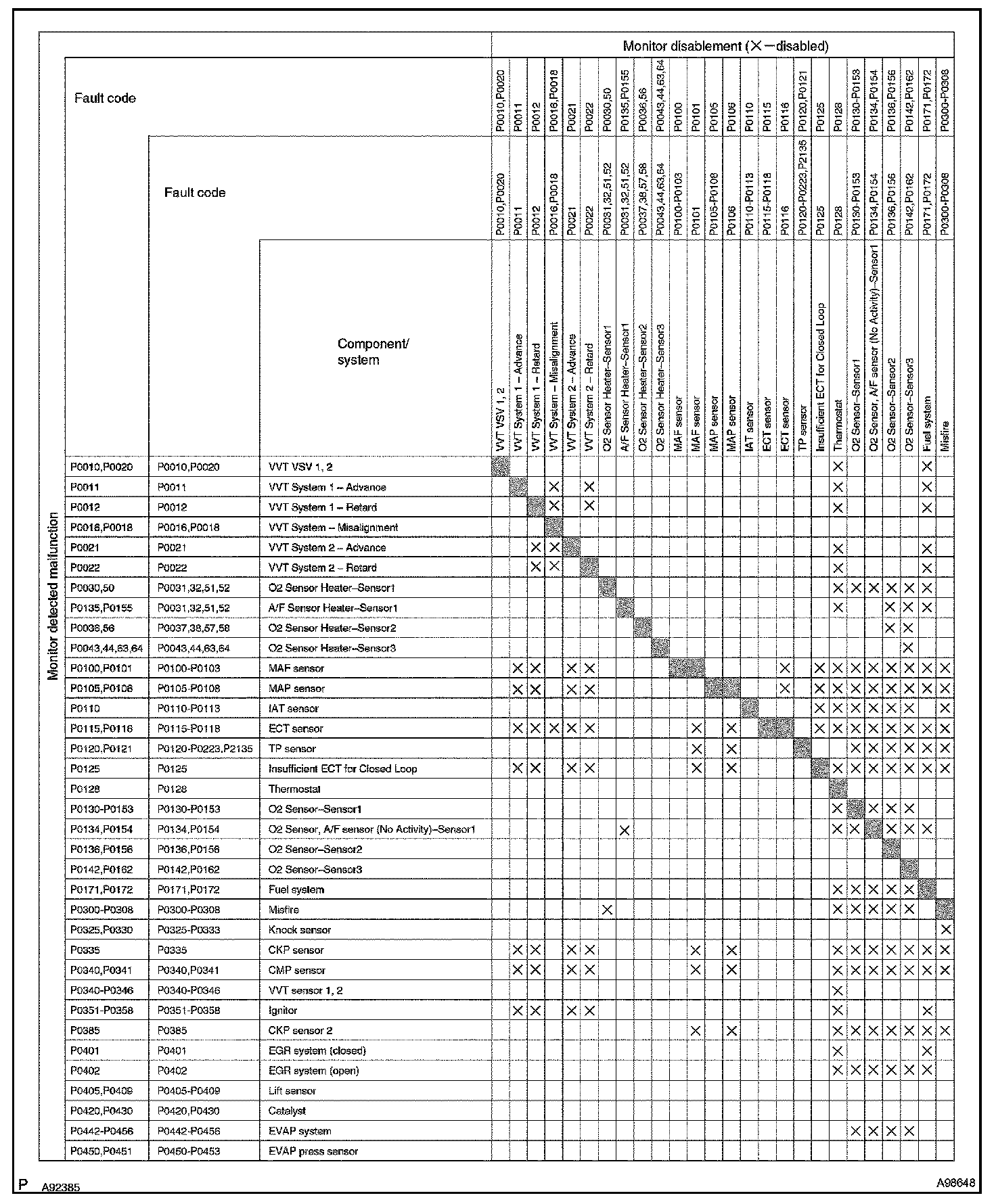

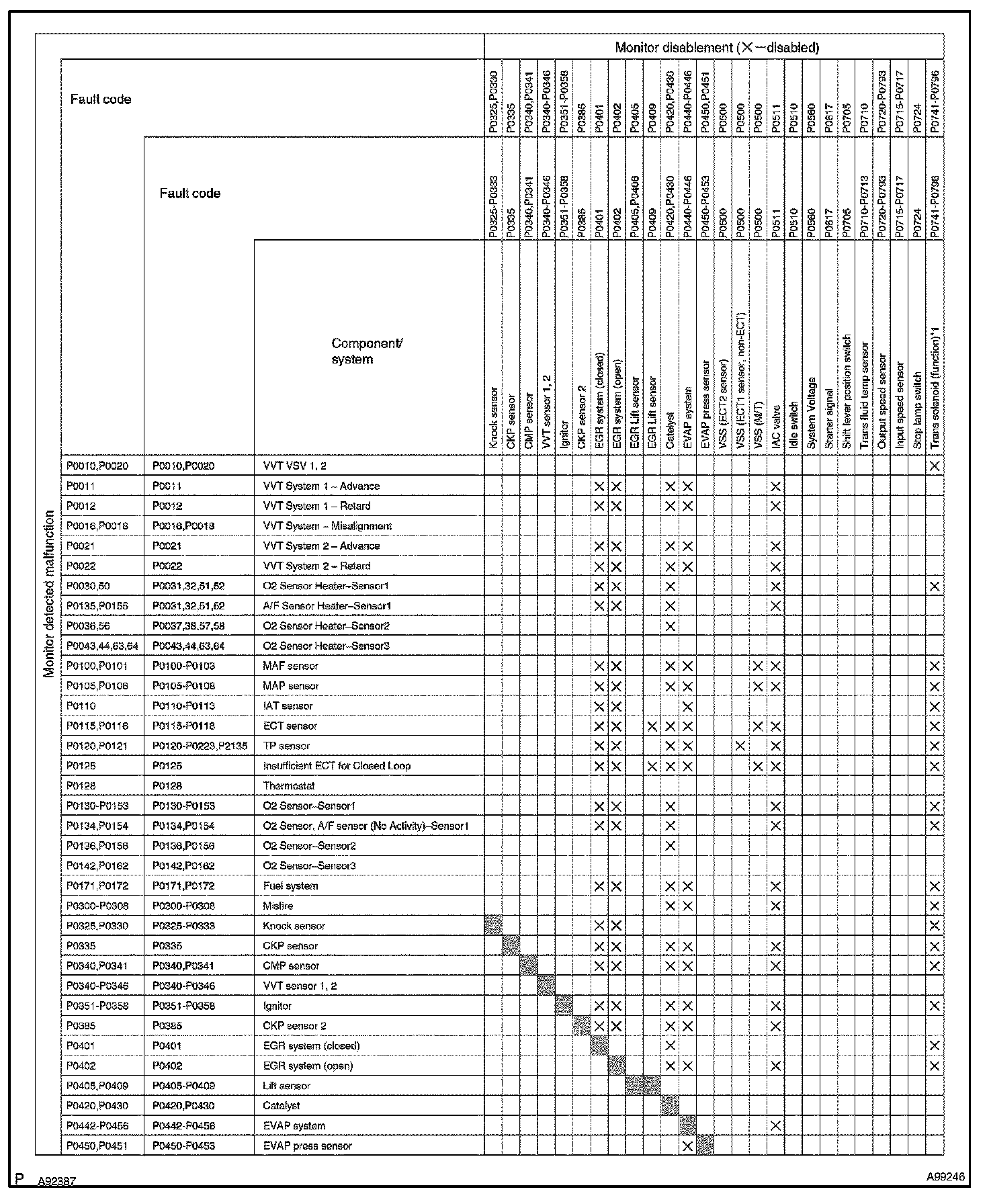

LIST OF DISABLE A MONITOR HINT: This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.
As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.
