Piston Ring, Engine
Ring Groove Clearance Using a feeler gauge, measure the clearance between a new
piston ring and the wall of the ring groove.

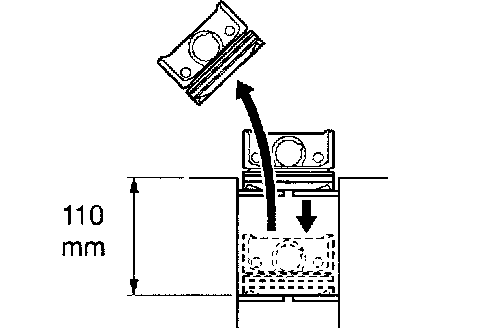

Standard ring groove clearance Piston Ring End Gap Using a
piston, push the
piston ring a little beyond the bottom of the ring travel, 110 mm (4.33 inch) from the top of the cylinder block.
Standard end gap
