System Description

WIRELESS DOOR LOCK CONTROL SYSTEM

System Description

1. WIRELESS DOOR LOCK CONTROL SYSTEM DESCRIPTION
a. This system locks and unlocks the vehicle's doors remotely. The wireless door lock control system has the following features:
- The door control receiver performs the code identification process and the door control relay operates the door lock control. A serial data link is provided for communication between the door control receiver and the door control relay.
- A key ring type transmitter is used and it contains the following 3 switches: the door lock switch, door unlock switch and panic switch.
- An LED (light emitting diode) is mounted on the transmitter and illuminates when the battery is depleted.

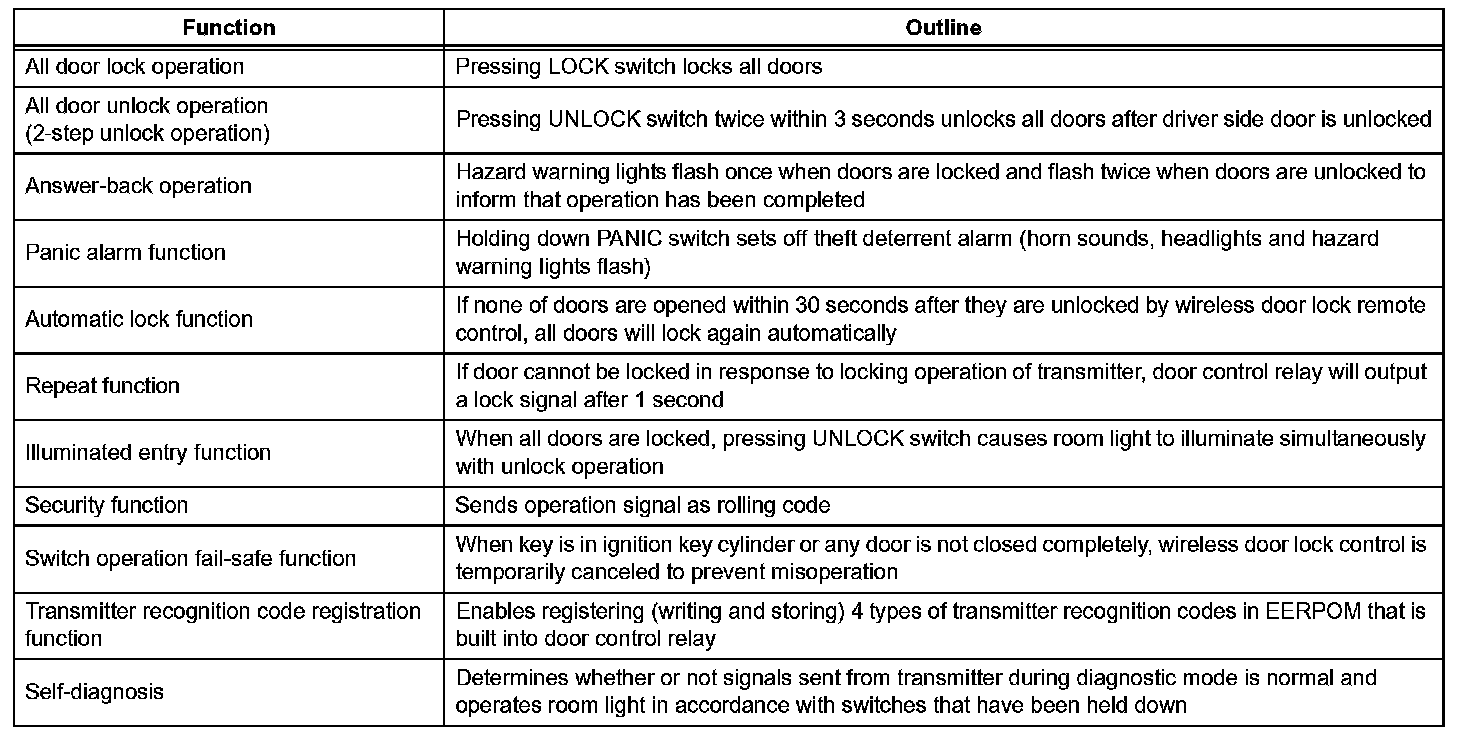

b. The wireless door lock control system has given functions:
