Only Wireless Door Lock Control Function Does Not Operate

Only Wireless Door Lock Control Function does not Operate

DESCRIPTION
The door control receiver receives a signal from the transmitter and sends this signal to the door control relay. Then, the door control relay controls the door operation by sending a door LOCK/UNLOCK signal to each door lock motor.

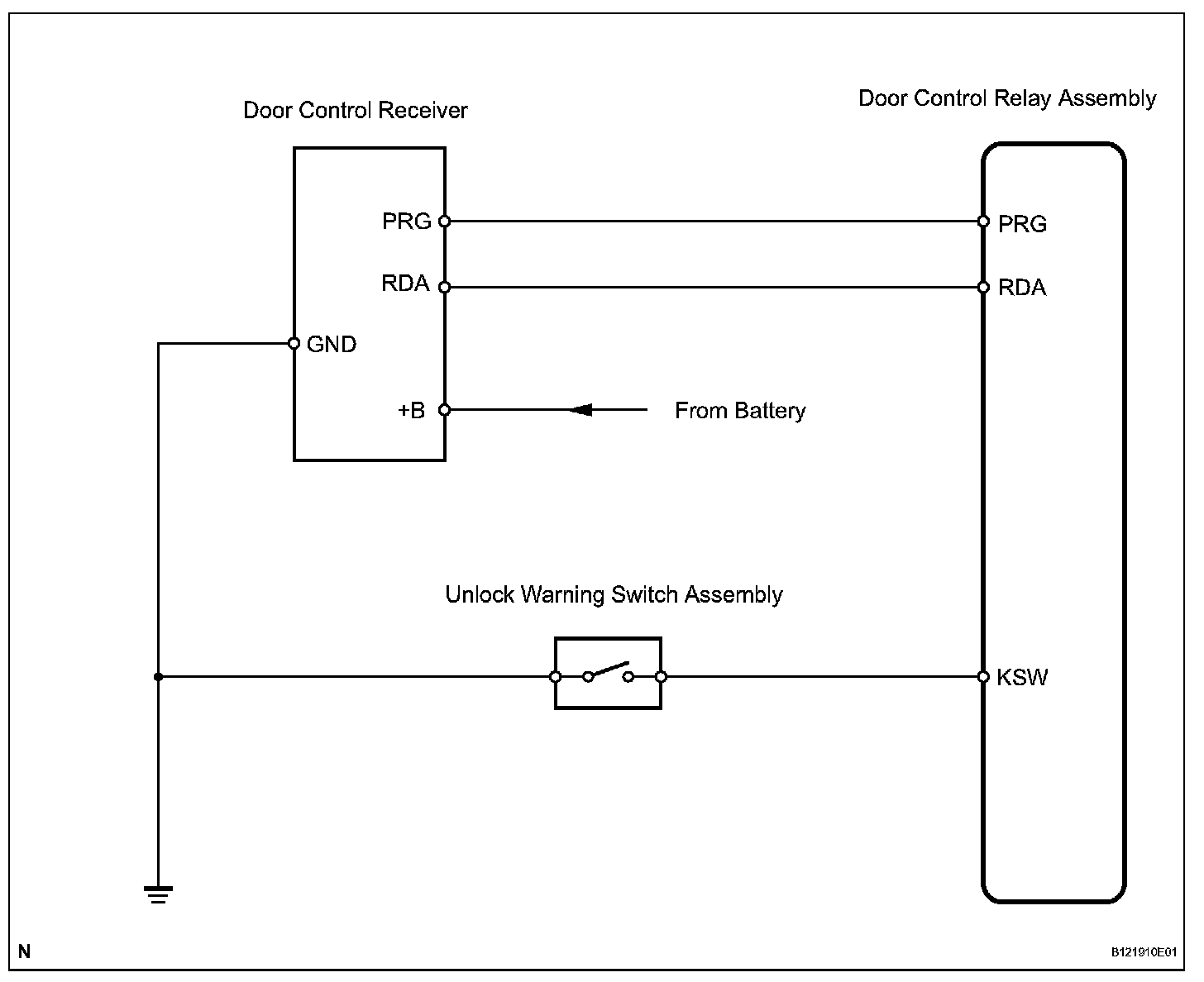

Wiring Diagram:

Step 1-4:

Step 5-6:

Step 6(Continued)-7:

Step 8-10:

Step 11-12:

Step 13-15:

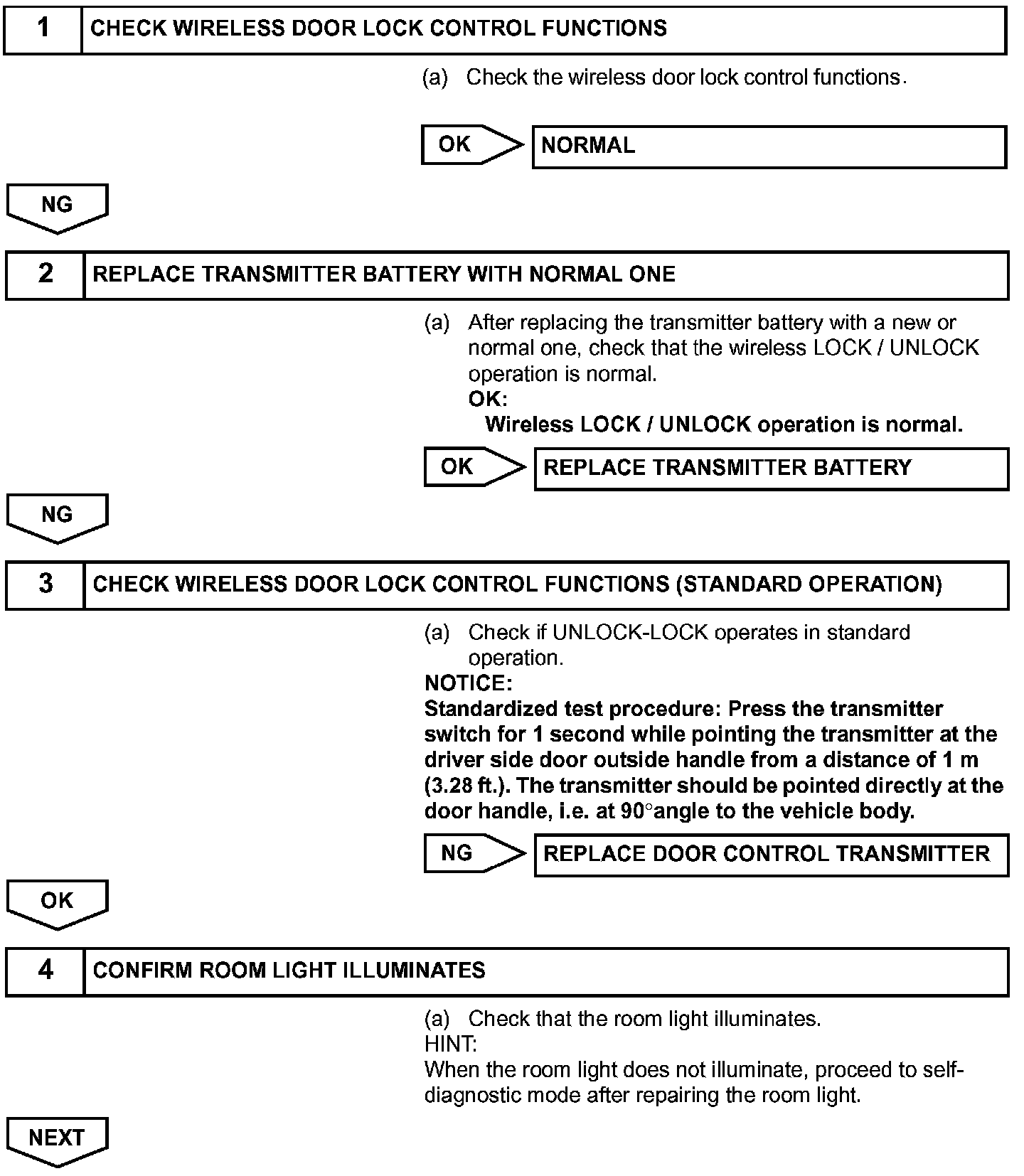

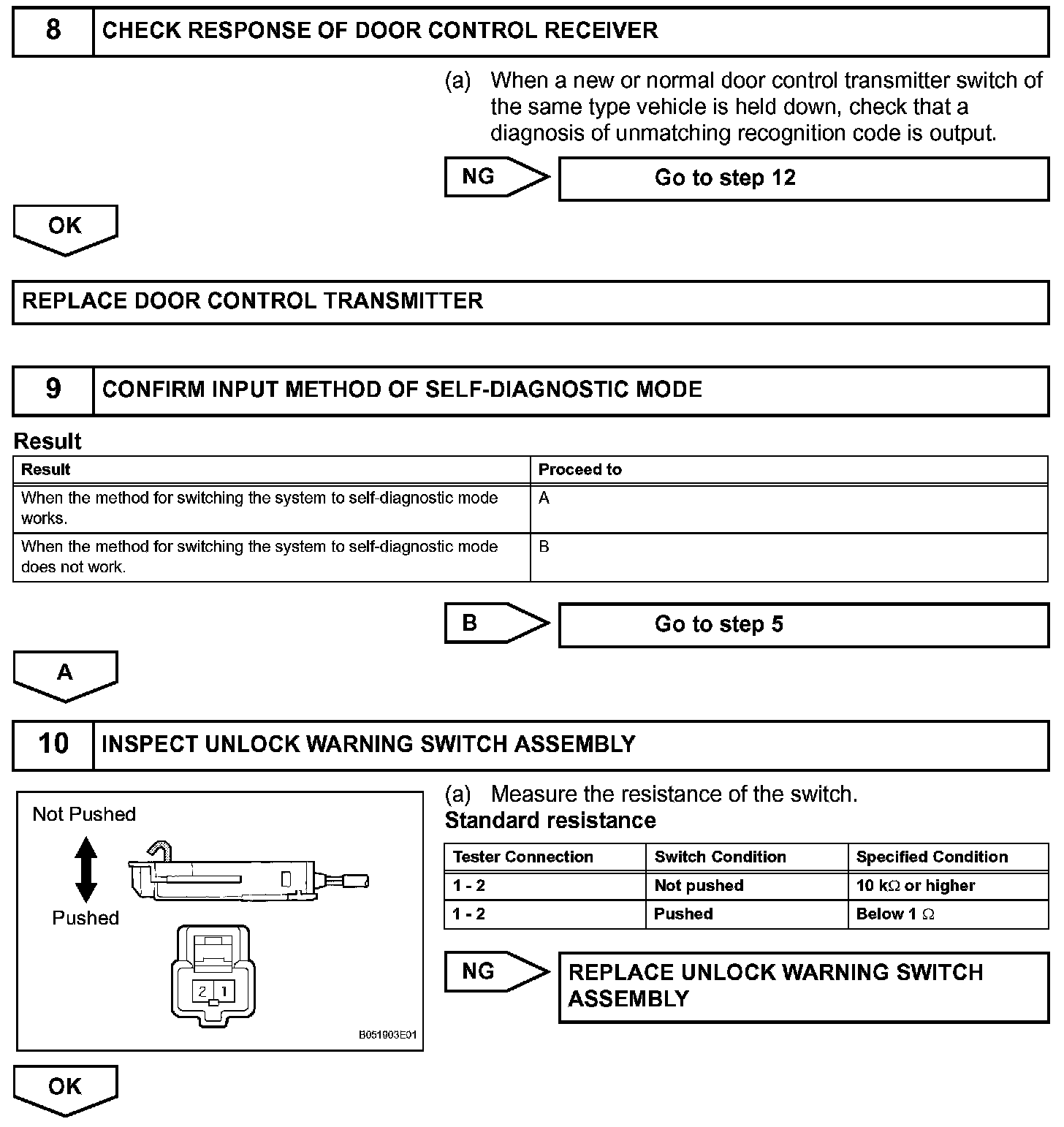

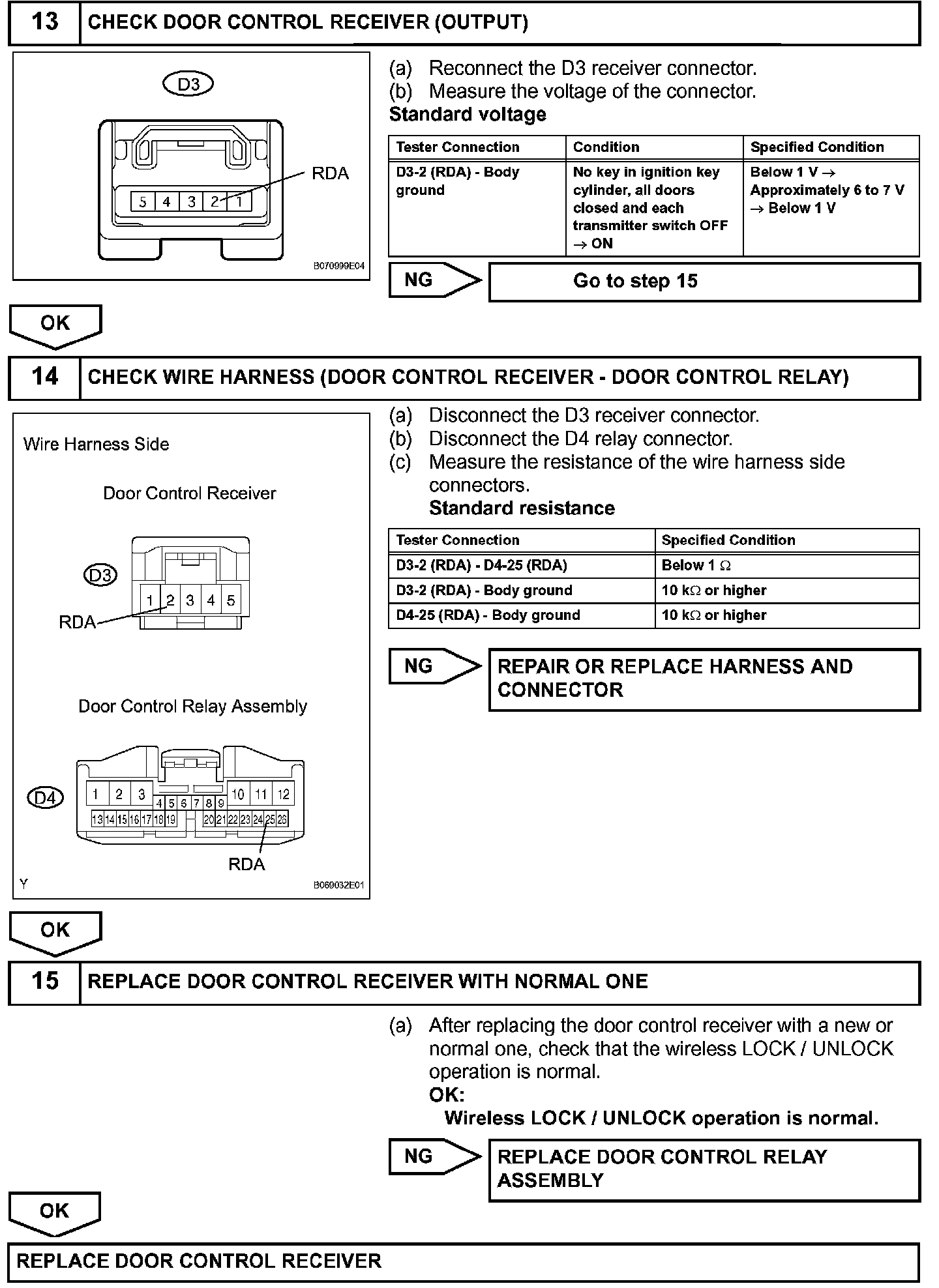

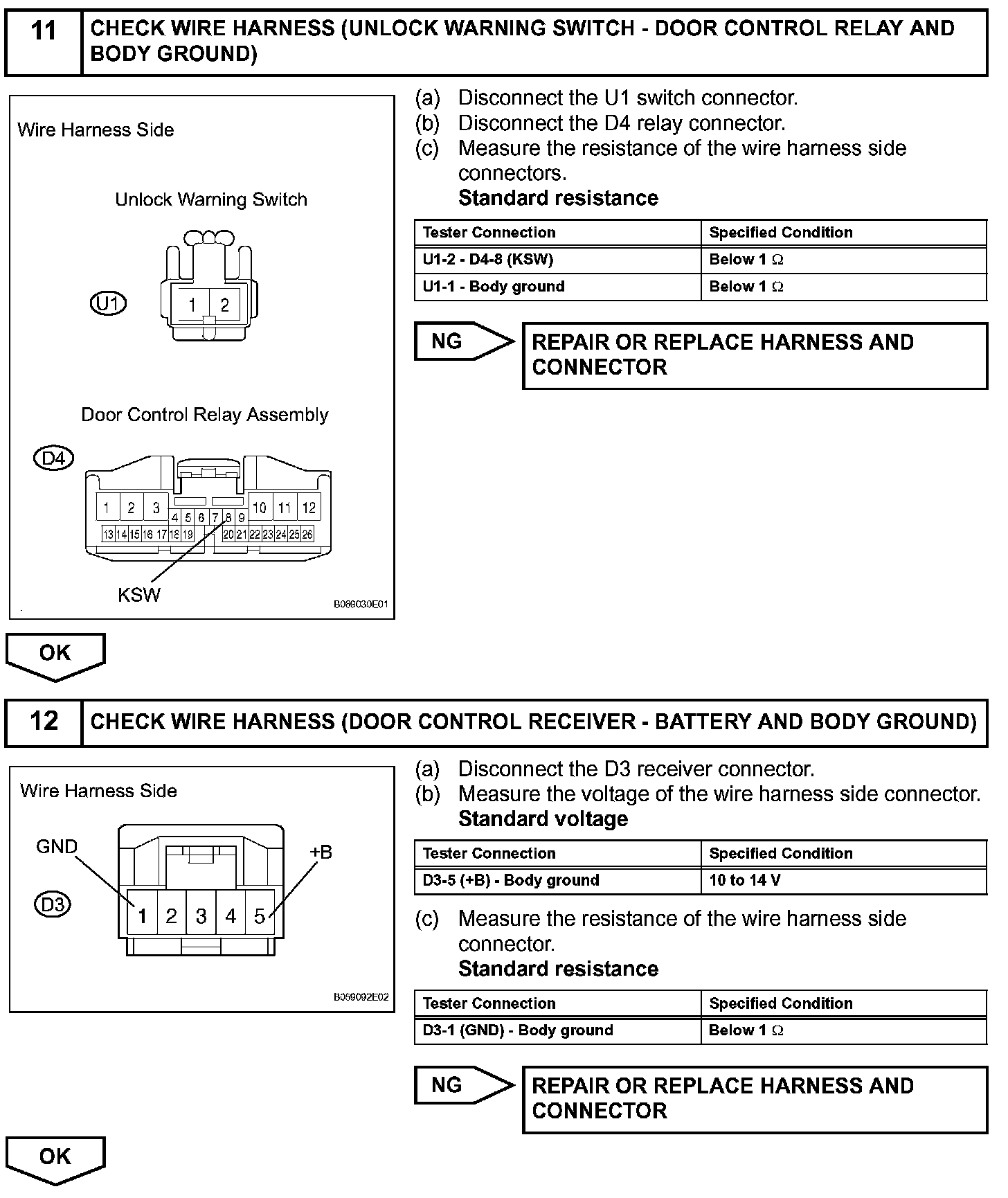

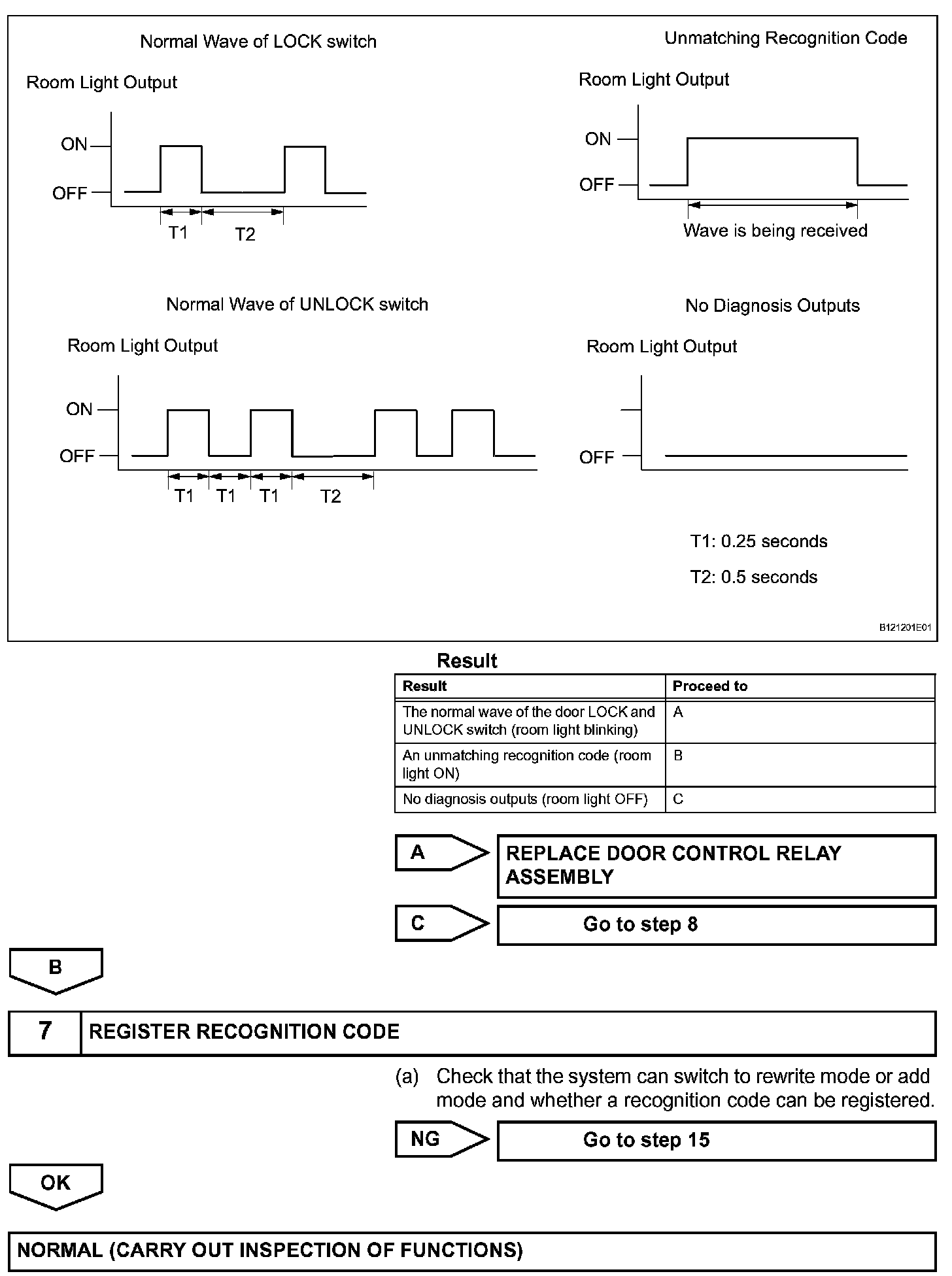

INSPECTION PROCEDURE

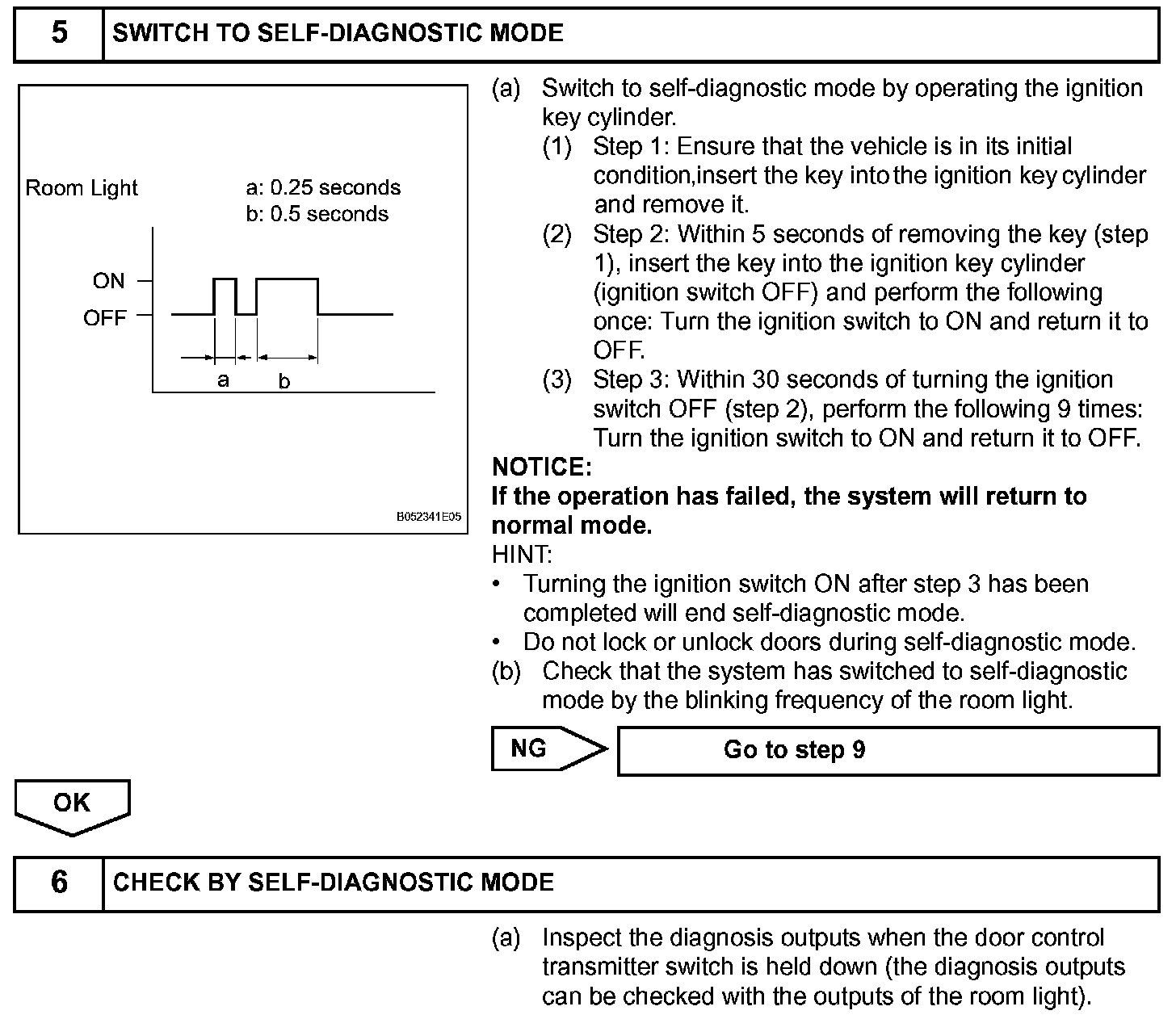

HINT: The switches described transmit signals and are built into the door control transmitter.
