Blower Motor Switch: Service and Repair
Heater SwitchREMOVAL 1.
REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY
a.
Remove the heater control and accessory.
2.
REMOVE HEATER SWITCH ASSEMBLY
a.
Remove the 2 screws and heater switch.
INSTALLATION 1.
INSTALL HEATER SWITCH ASSEMBLY
a.

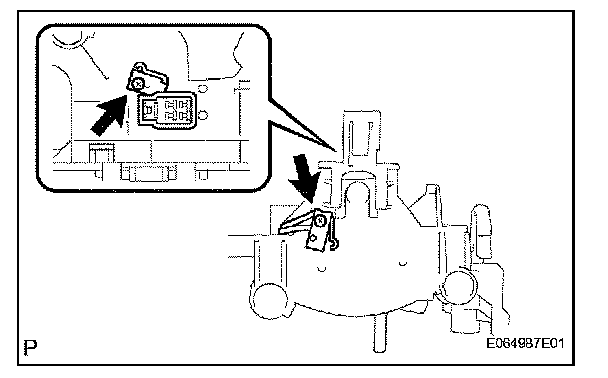

Install the heater switch with the 2 screws.
2.
INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY
a.
Install the heater control and accessory.
