Control Assembly: Testing and Inspection
CENTER CLUSTER MODULE SWITCHINSPECTION
1. INSPECT CENTER CLUSTER MODULE SWITCH

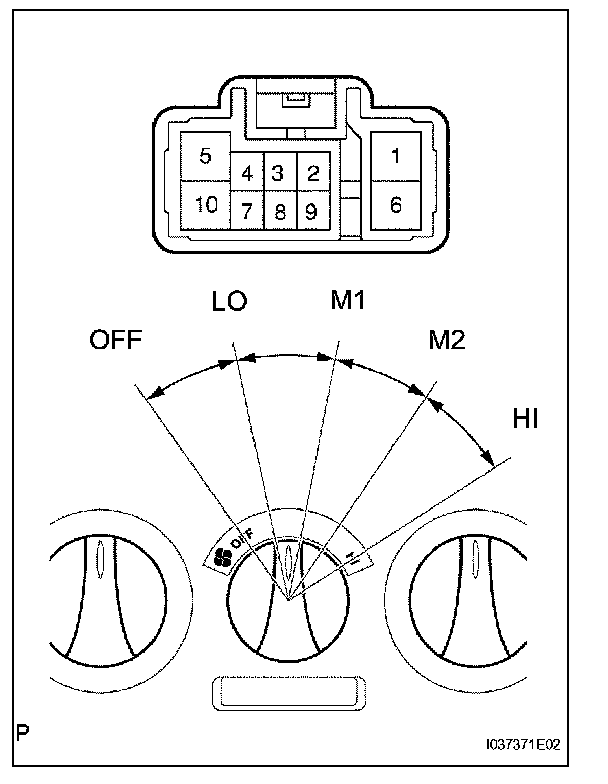

a. Inspect the blower switch resistance.

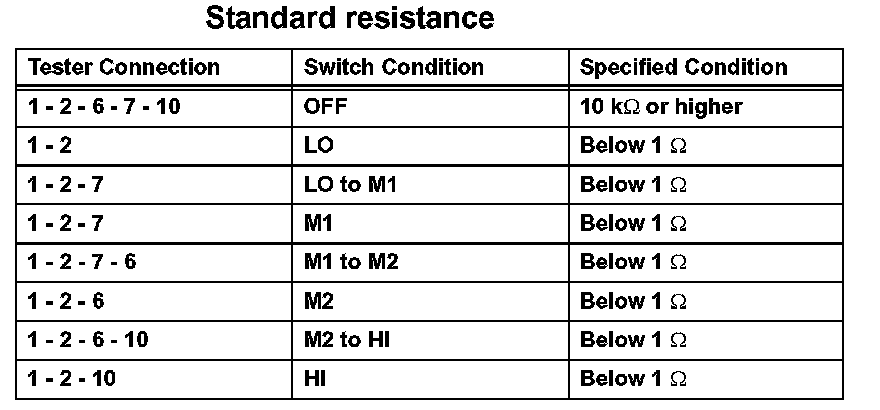

1. Measure the resistance of the switch.
If the result is not as specified, replace the center cluster module switch.
b. Inspect the illumination operation.
Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, then check that the illuminations come on.
If there is a bulb that does not come on, replace the bulb.

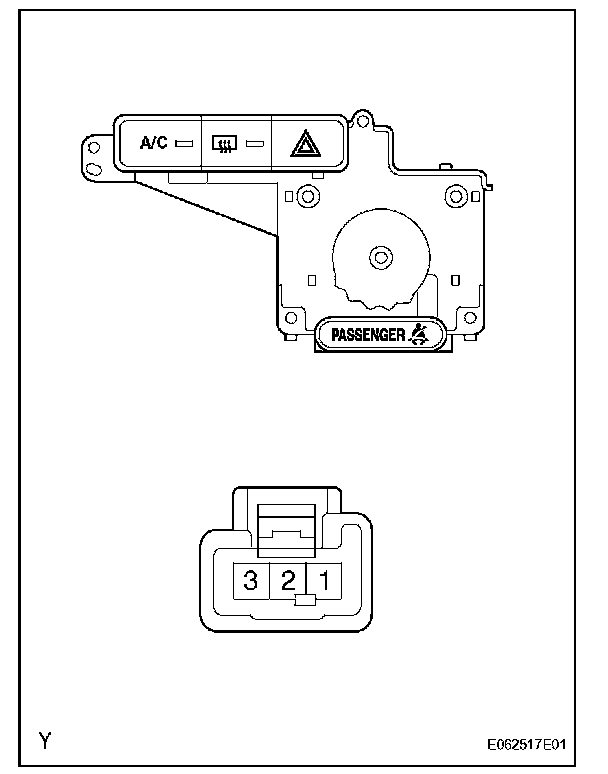

c. Inspect the A/C switch resistance.

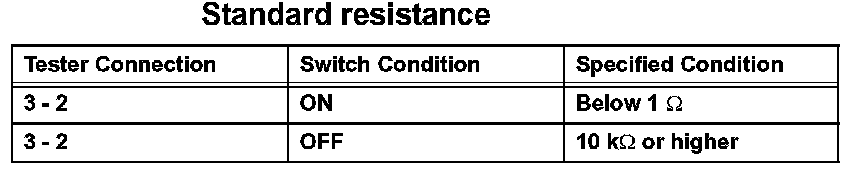

1. Measure the resistance of the switch.
If the result is not as specified, replace the A/C switch.
d. Inspect the indicator operation.
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
2. Push the A/C switch and then check that the indicator comes on.
If the result is not as specified, replace the A/C switch.
