Camshaft Position Sensor: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE AIR CLEANER ASSEMBLY

3. DISCONNECT ENGINE WIRE

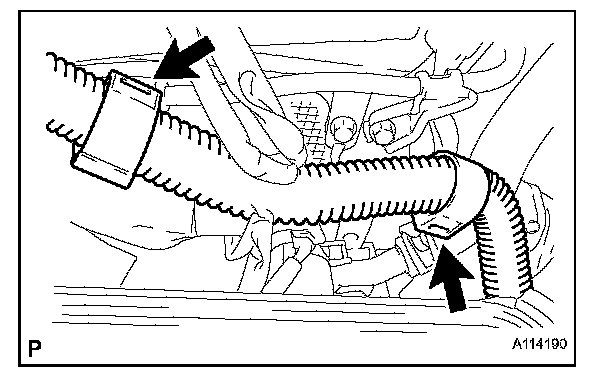

a. Disconnect the 2 clamps of the engine wire.

4. REMOVE CAMSHAFT POSITION SENSOR

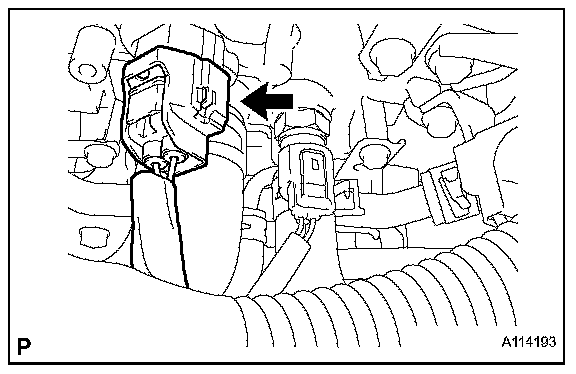

a. Disconnect the sensor connector.

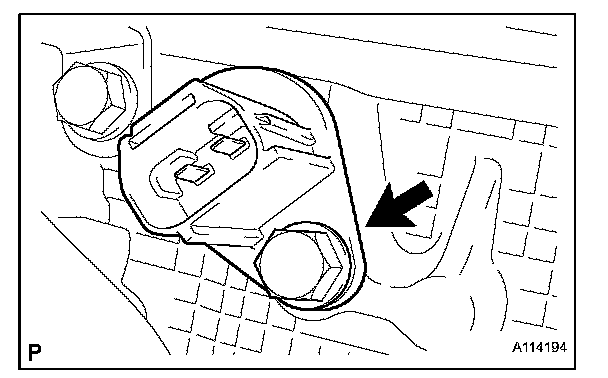

b. Remove the bolt and sensor.

INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR

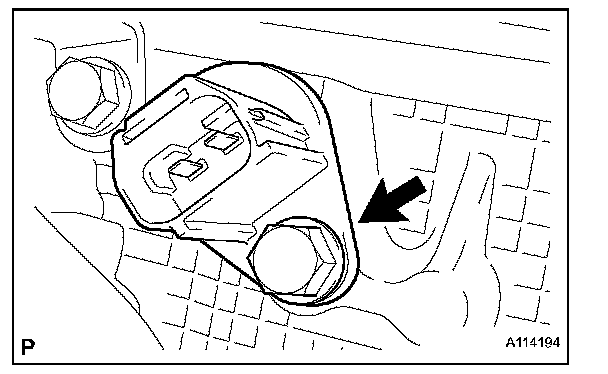

a. Install the sensor with the bolt.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

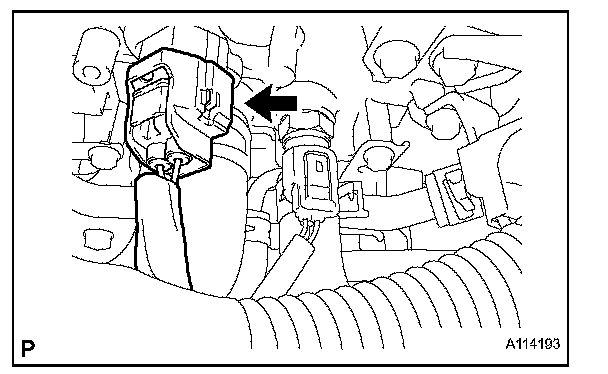

b. Connect the sensor connector.

2. CONNECT ENGINE WIRE

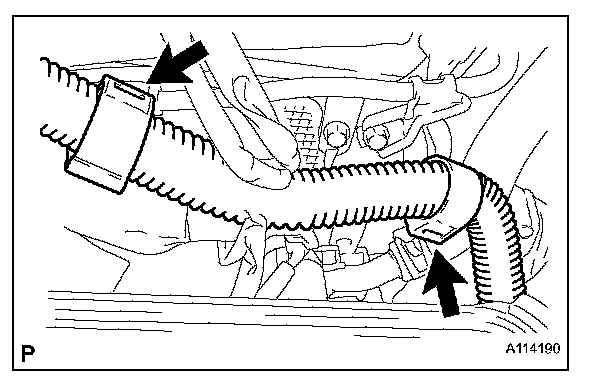

a. Connect the 2 clamps of the engine wire.

3. INSTALL AIR CLEANER ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
