Crankshaft Position Sensor: Testing and Inspection
INSPECTION 1.
INSPECT

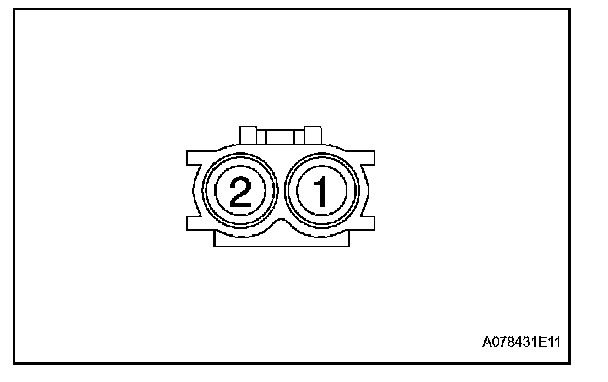

CRANKSHAFT POSITION SENSOR a.

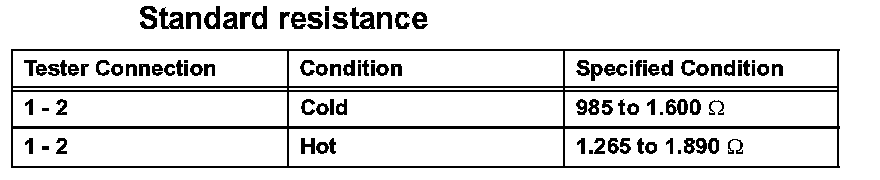

Measure the resistance of the sensor.
If the result is not as specified, replace the
crankshaft position sensor.
NOTE: The terms cold and hot refer to the temperature of the sensors. Cold means approximately
-10 to 50 degrees C (14 to 122 degrees F). Hot means approximately
50 to 100 degrees C (122 to 212 degrees F).
