Open In CAN Main Bus Line

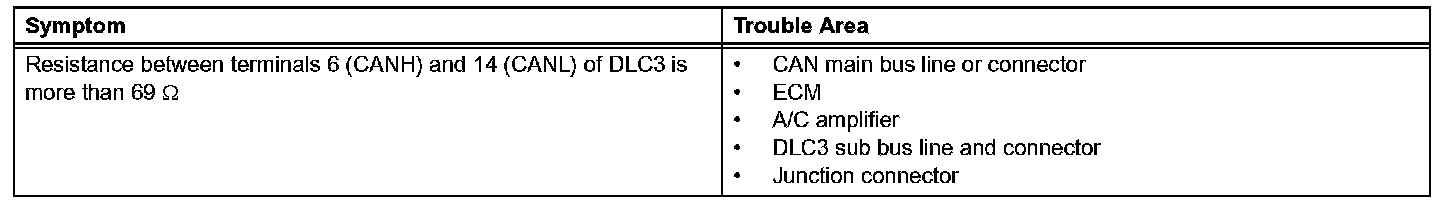

Open in CAN Main Bus LineDESCRIPTIONThe CAN main bus line and
DLC3 sub bus line may be disconnected when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 or higher.

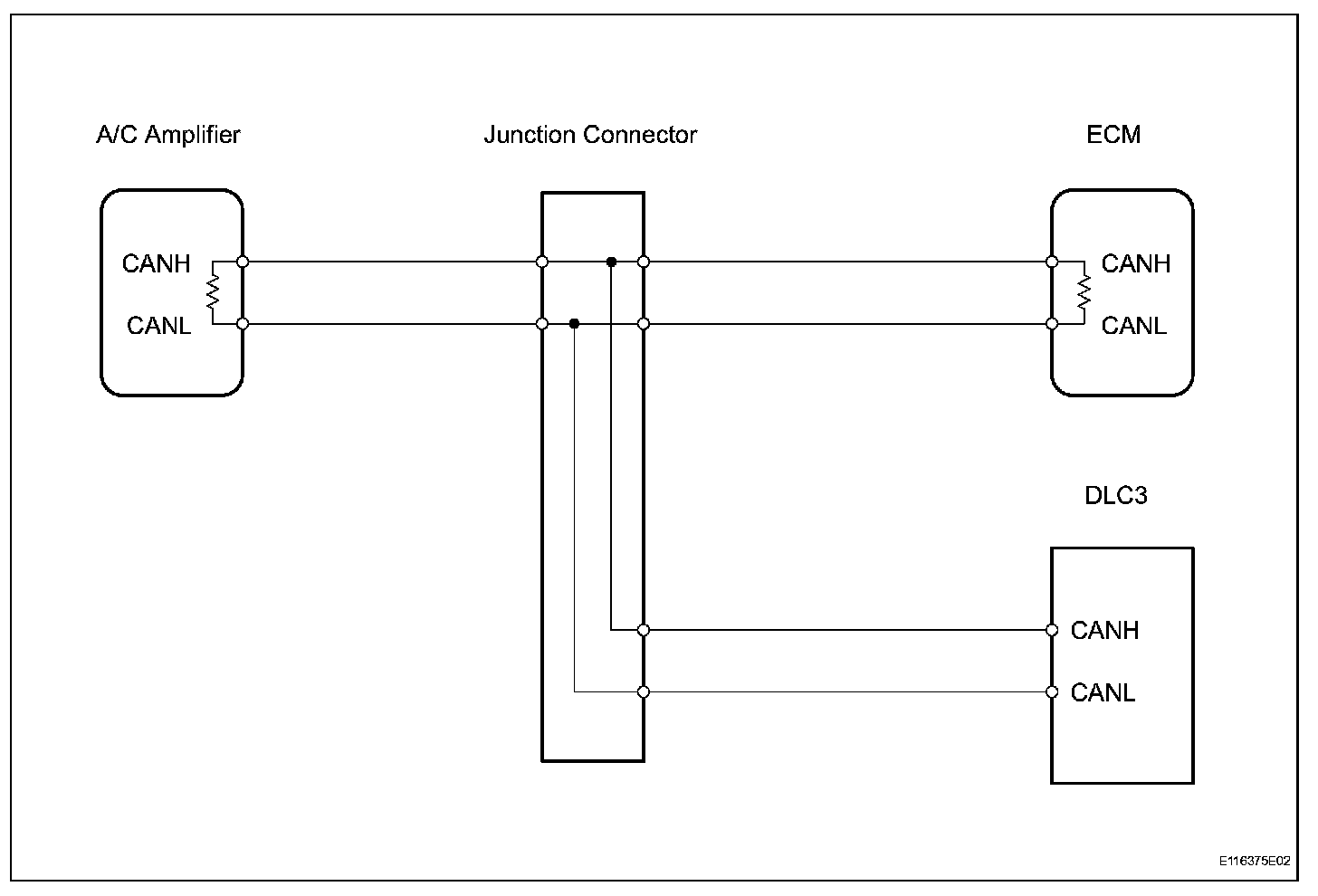

Wiring Diagram:

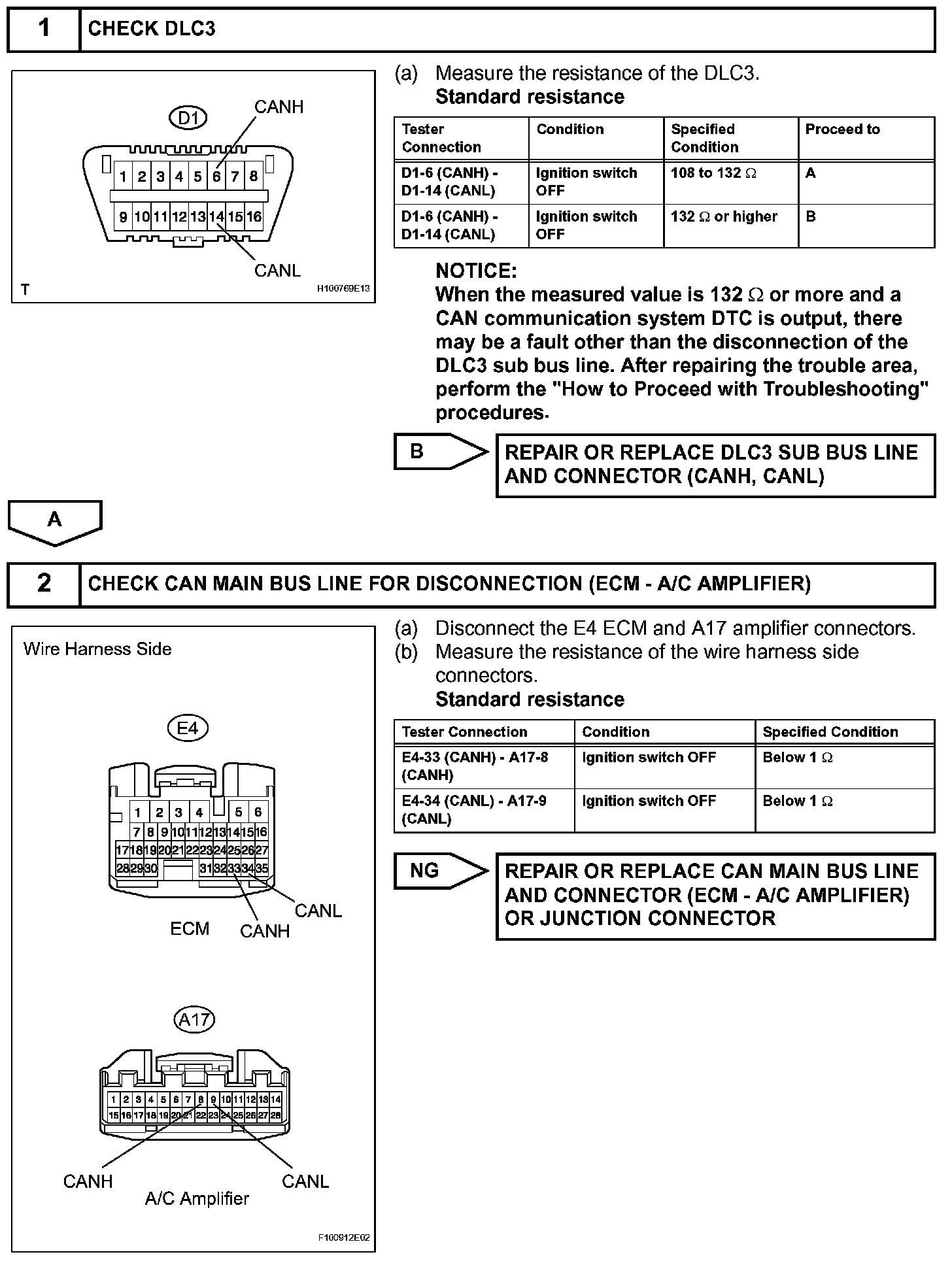

Step 1-2:

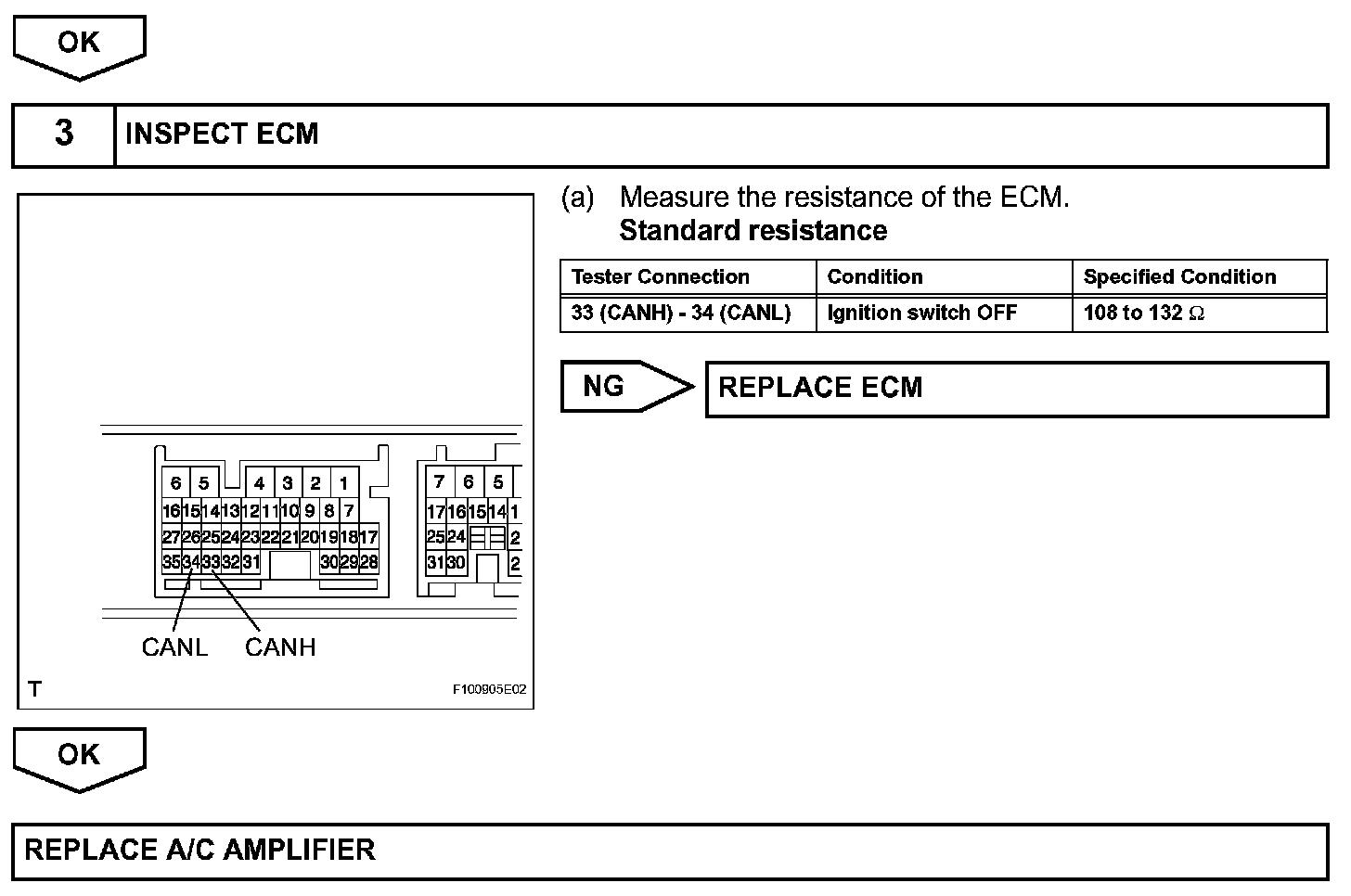

Step 2(continued)-3:
INSPECTION PROCEDURE
