Open In One Side of CAN Sub Bus Line

Open in One Side of CAN Sub Bus Line

DESCRIPTION
If 2 or more ECUs and/or sensors do not appear on the intelligent tester's "BUS CHECK" screen via the CAN VIM, one side of the CAN sub bus line may be open (One side of the CANH [sub bus line] /CANL [sub bus line] of the ECU and/or sensor is open).

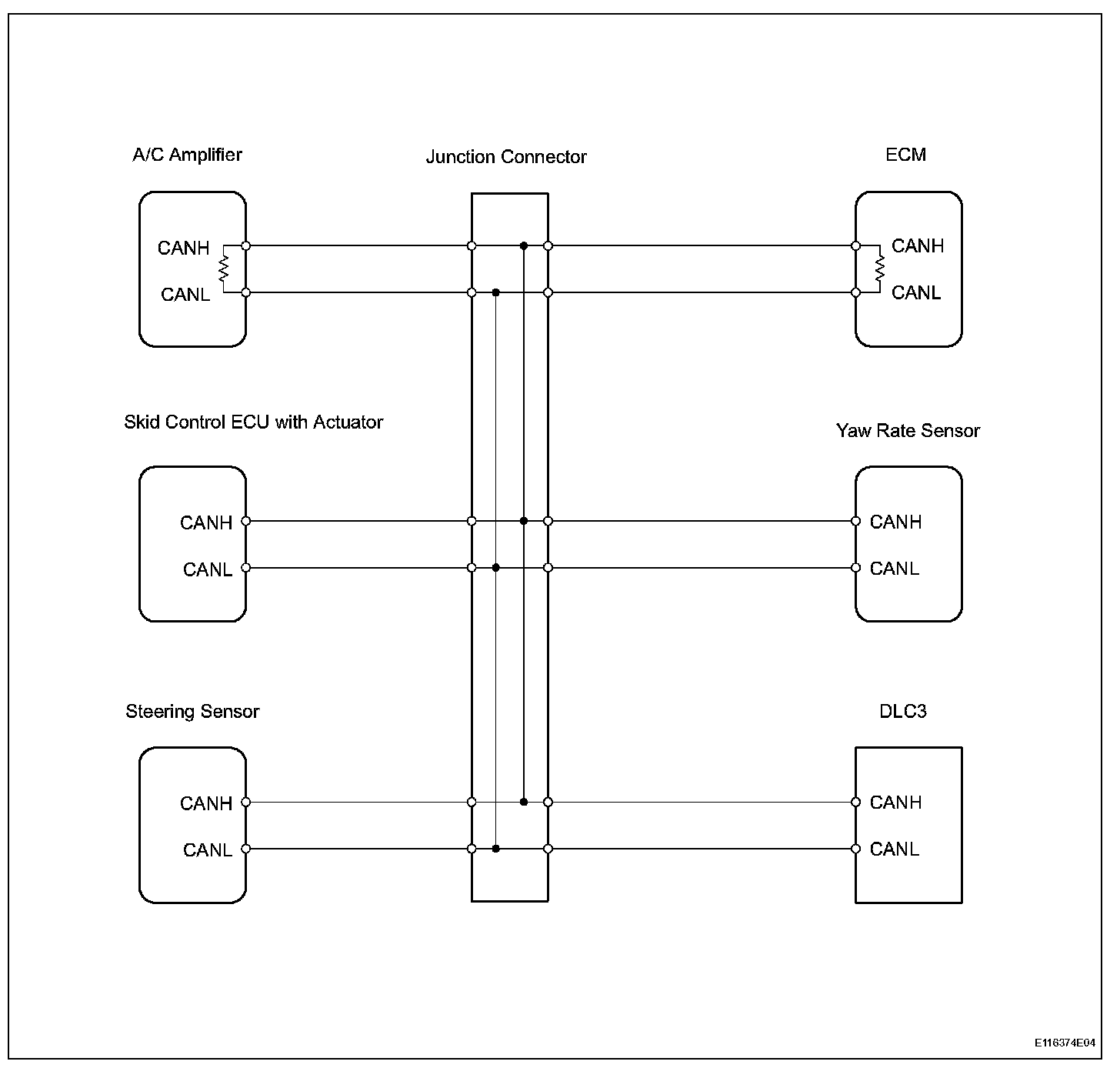

Wiring Diagram:

HINT:
- Perform the following inspection for the ECUs (sensors) which are not displayed on the intelligent tester. If a malfunction cannot be identified, perform the following inspections for the ECUs (sensors) connected to the CAN communication system.
- Do not remove the A/C amplifier and ECM, as they are the end parts of the circuit. If removed, CAN communication will not be possible.
- The open circuit confirmation of the A/C amplifier, ECM and main bus is performed in the CHECK CAN BUS LINE procedure of HOW TO PROCEED WITH TROUBLESHOOTING. This inspection only has procedures for checking for an open circuit on one side of the sub bus line.

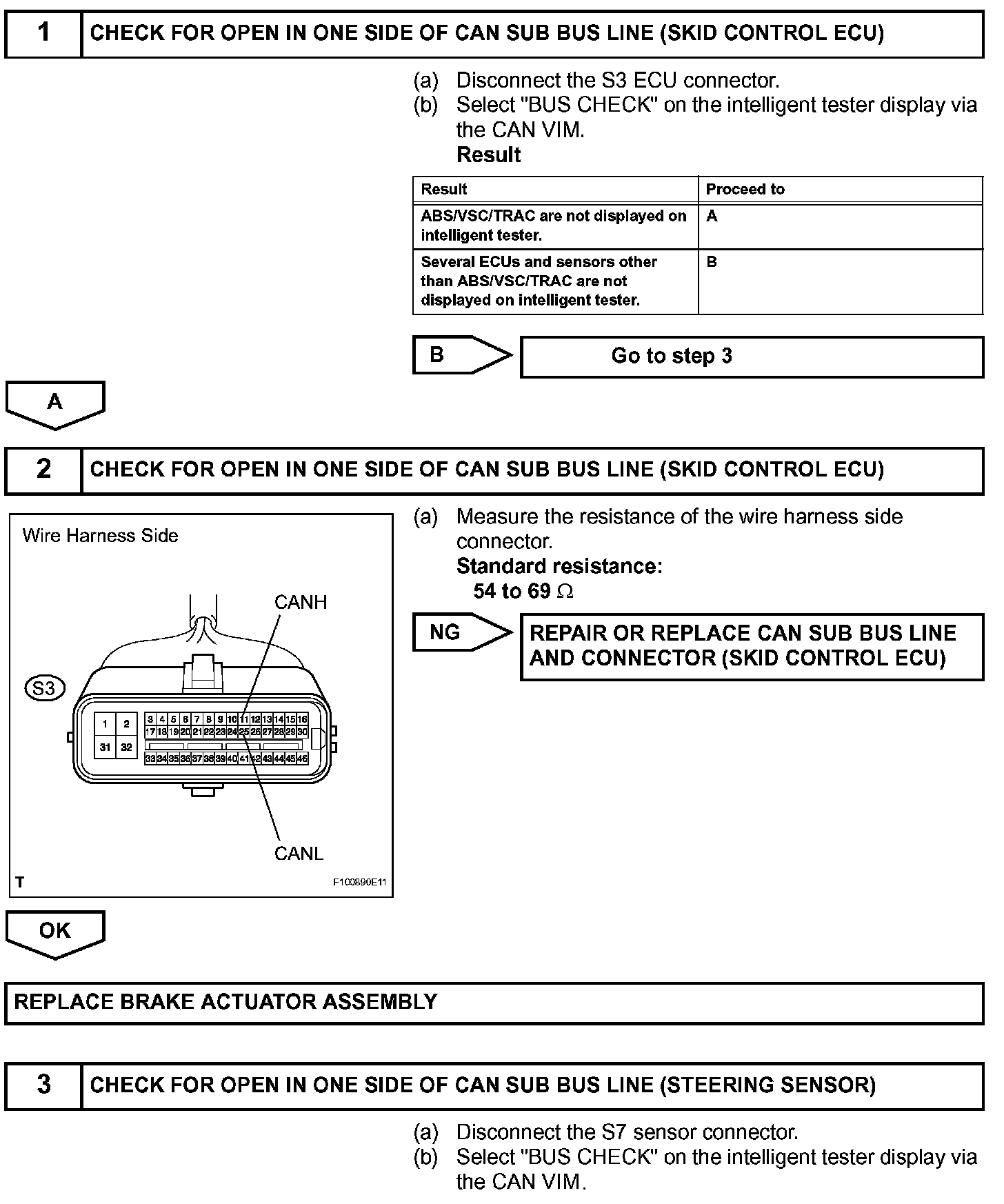

Step 1-3:

Step 3(continued)-4:

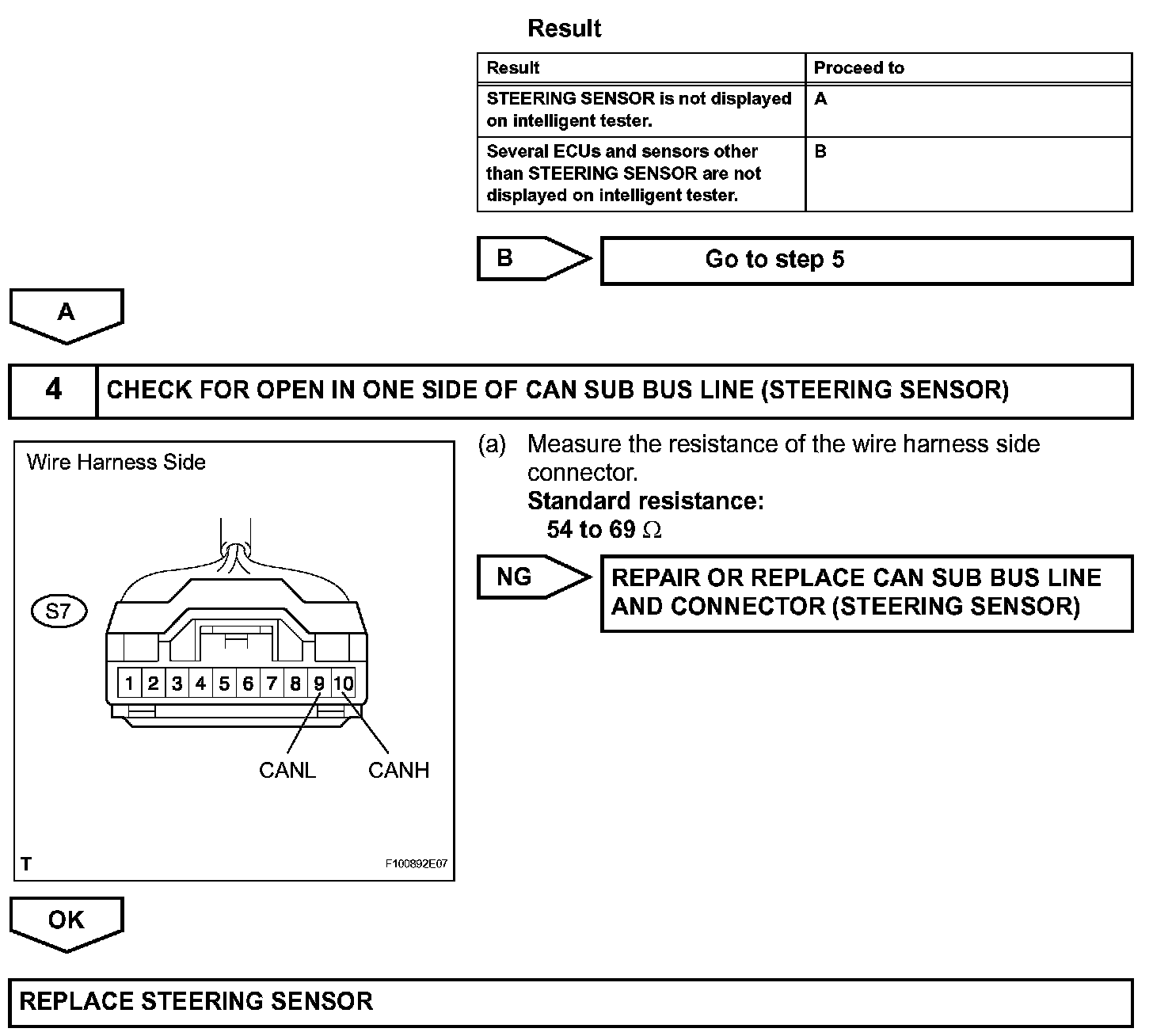

Step 5:

INSPECTION PROCEDURE
