Short In CAN Bus Lines

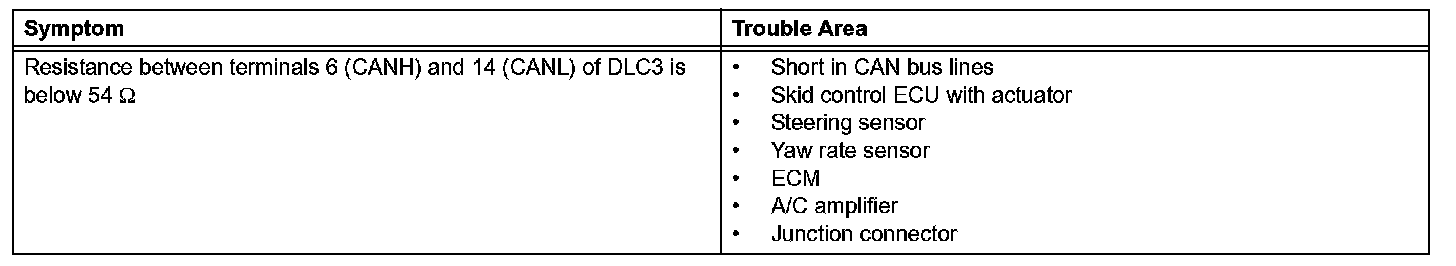

Short in CAN Bus LinesDESCRIPTIONThe CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is below 54.

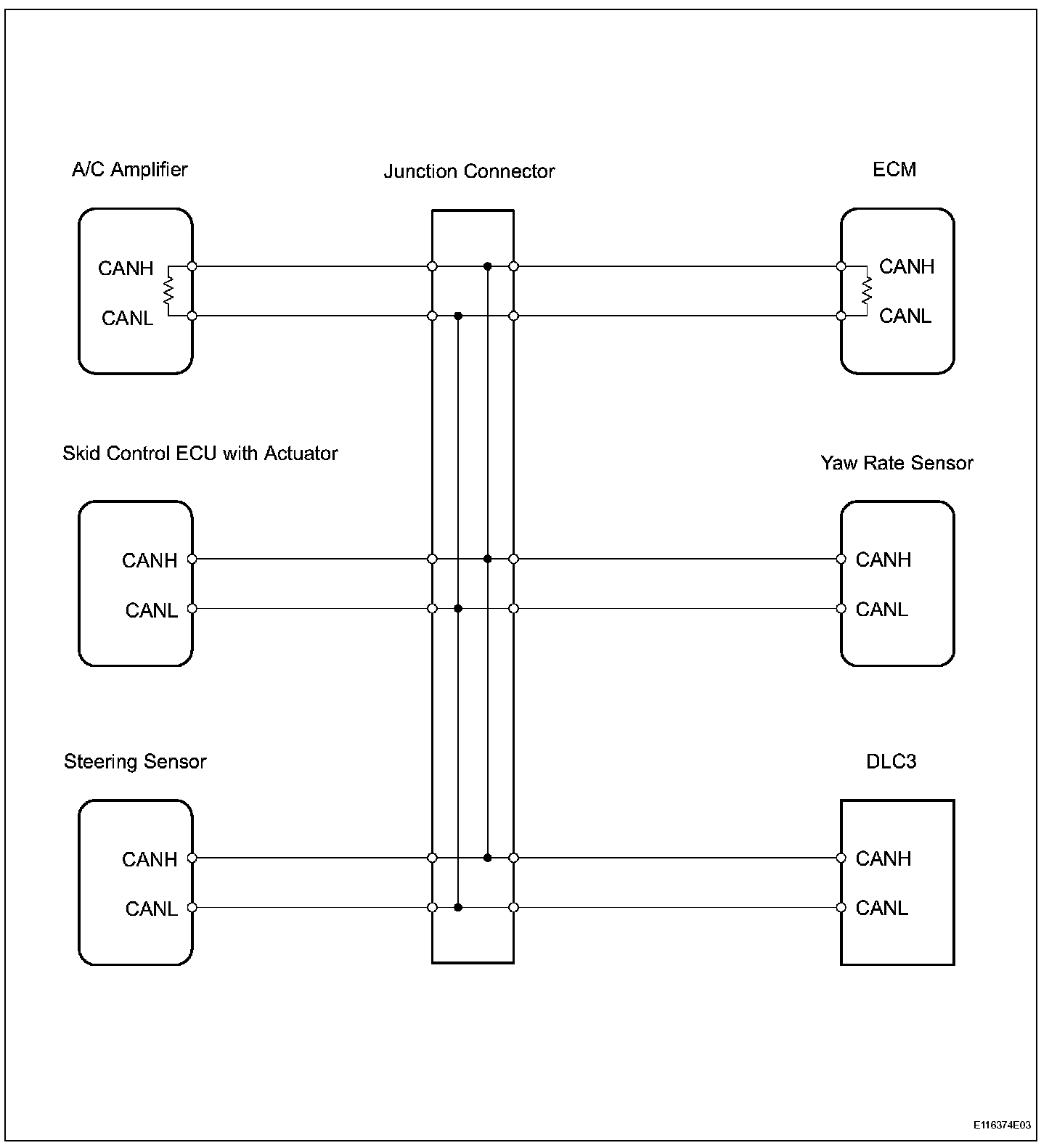

Wiring Diagram:

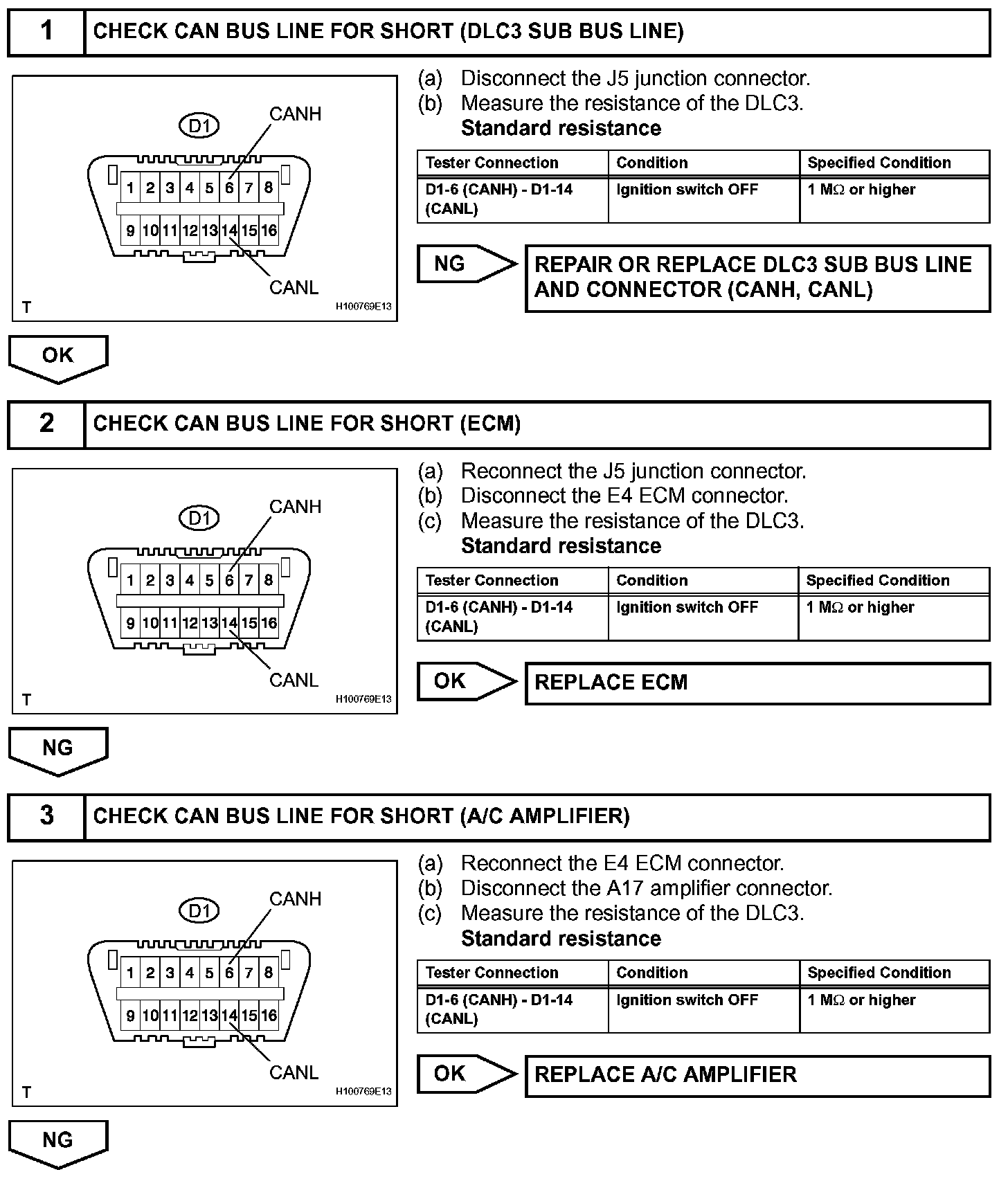

Step 1-3:

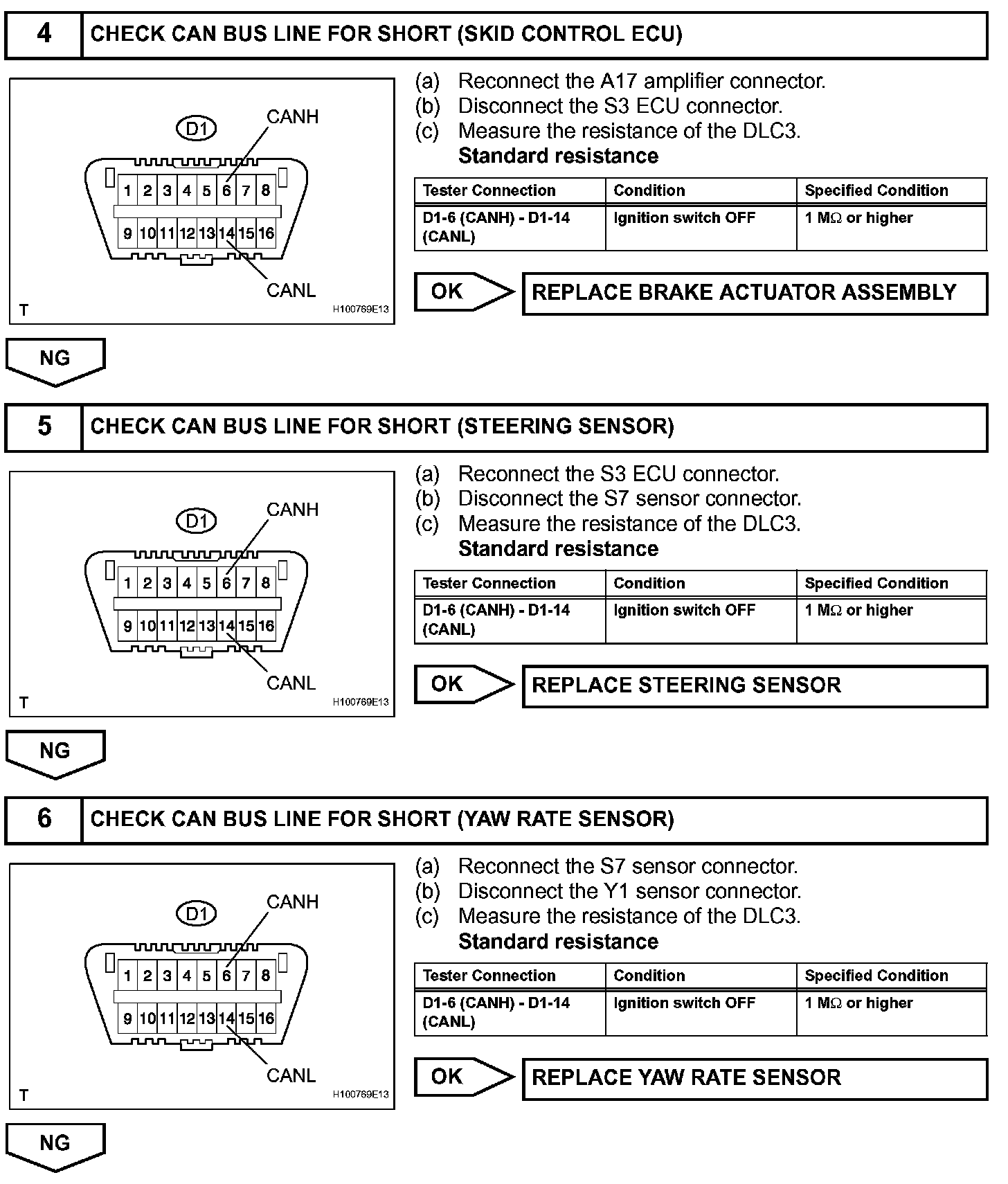

Step 4-6:

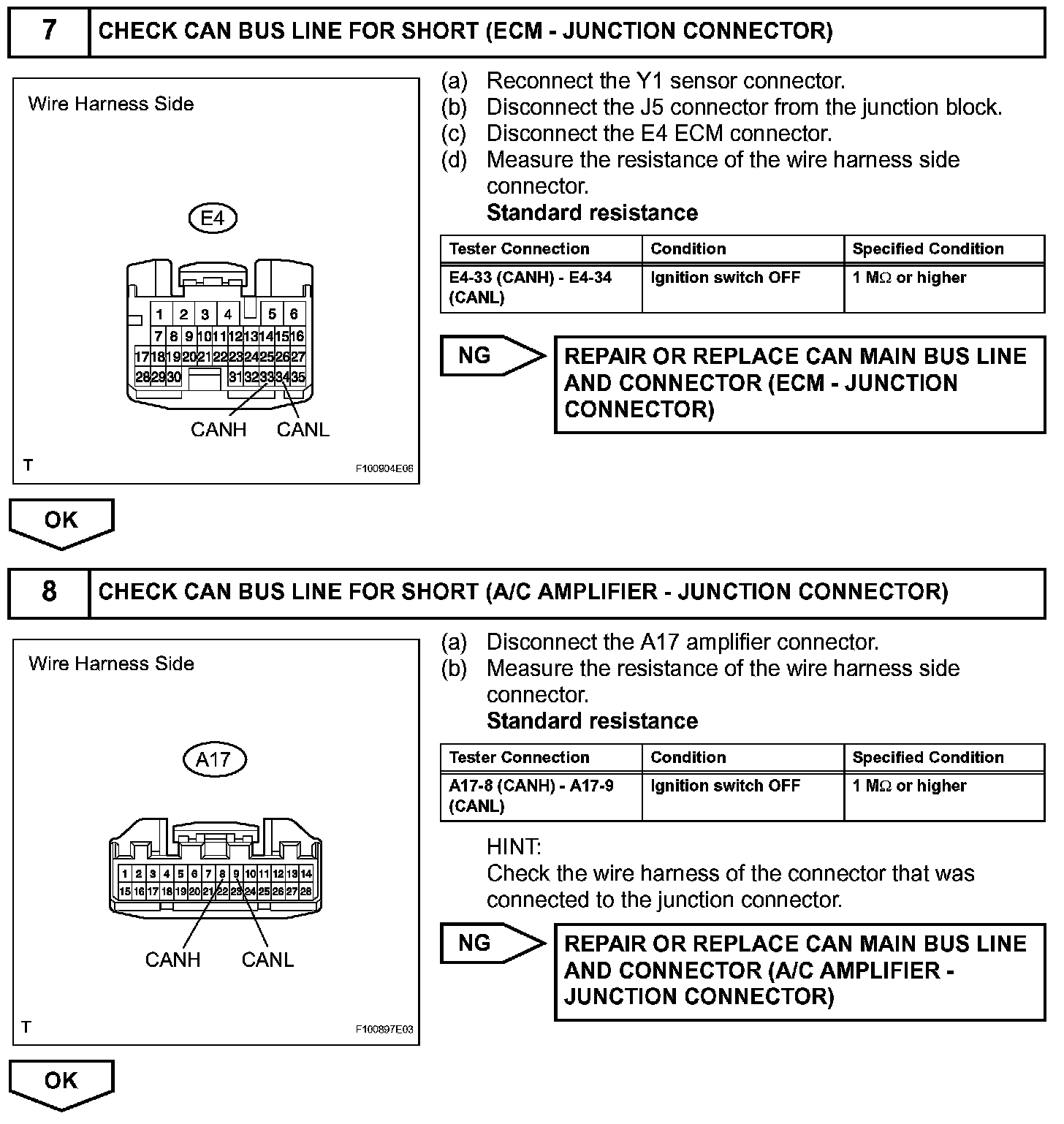

Step 7-8:

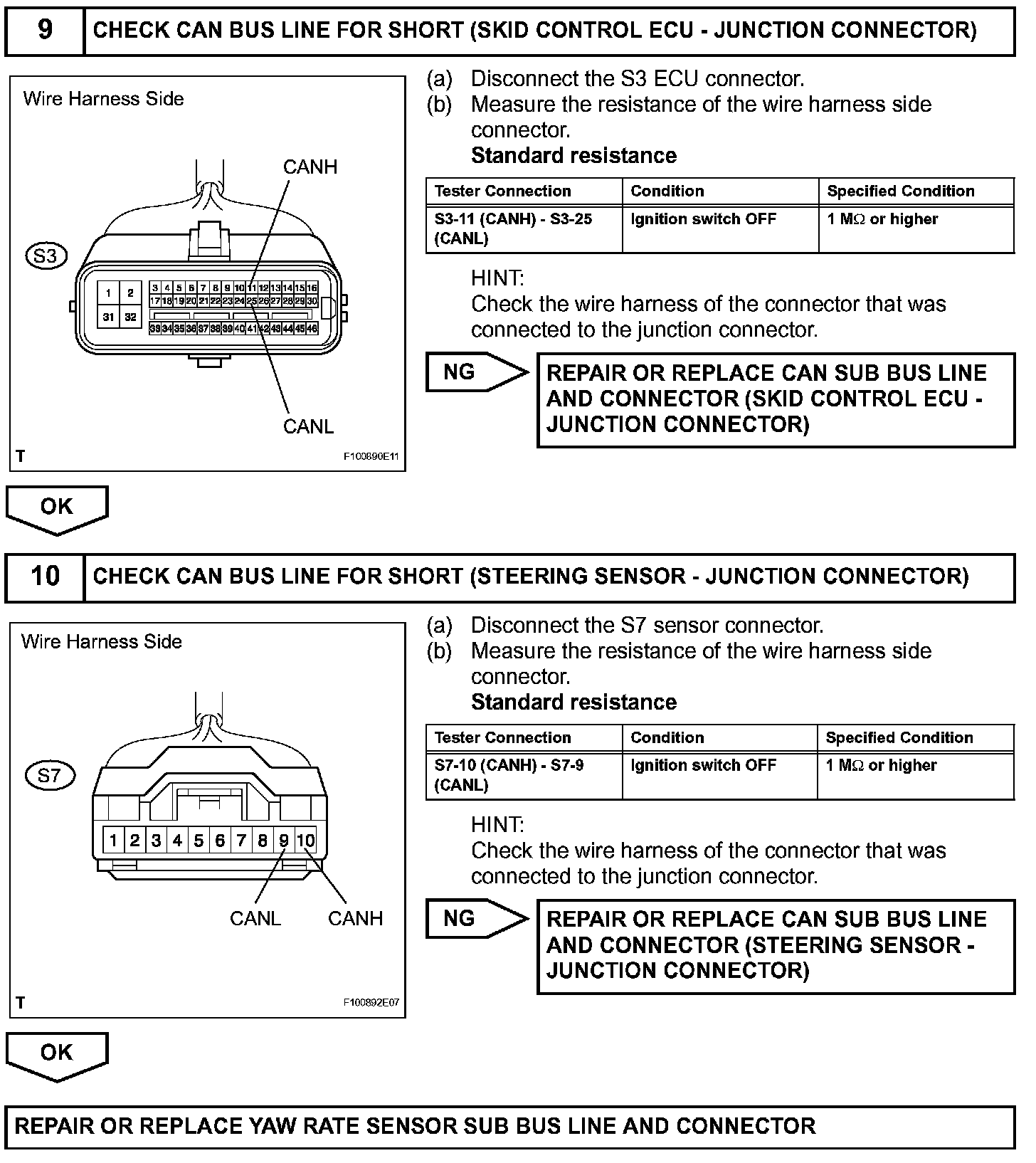

Step 9-10:
INSPECTION PROCEDURE
